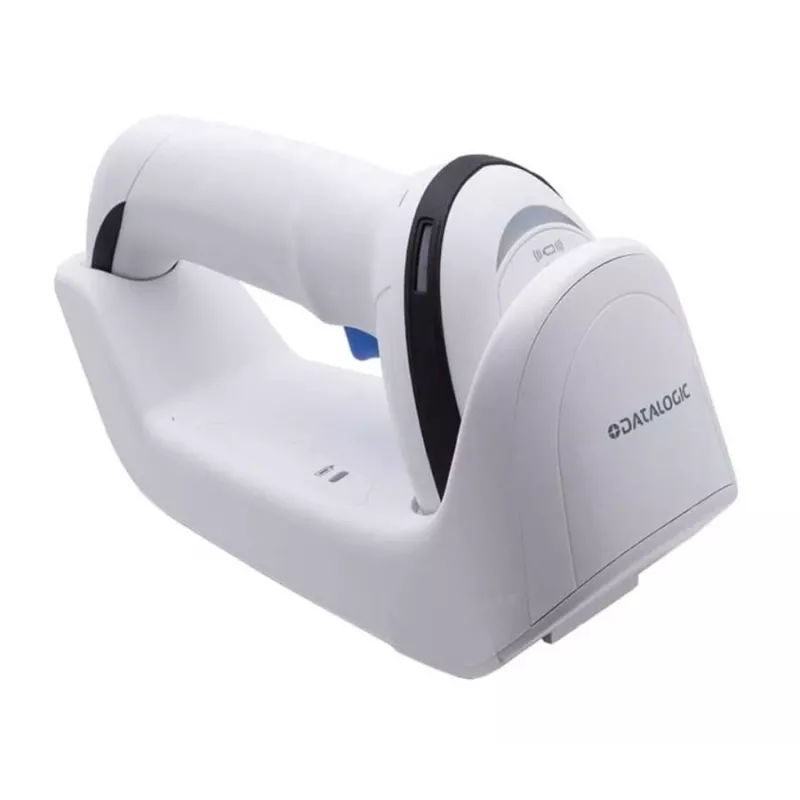

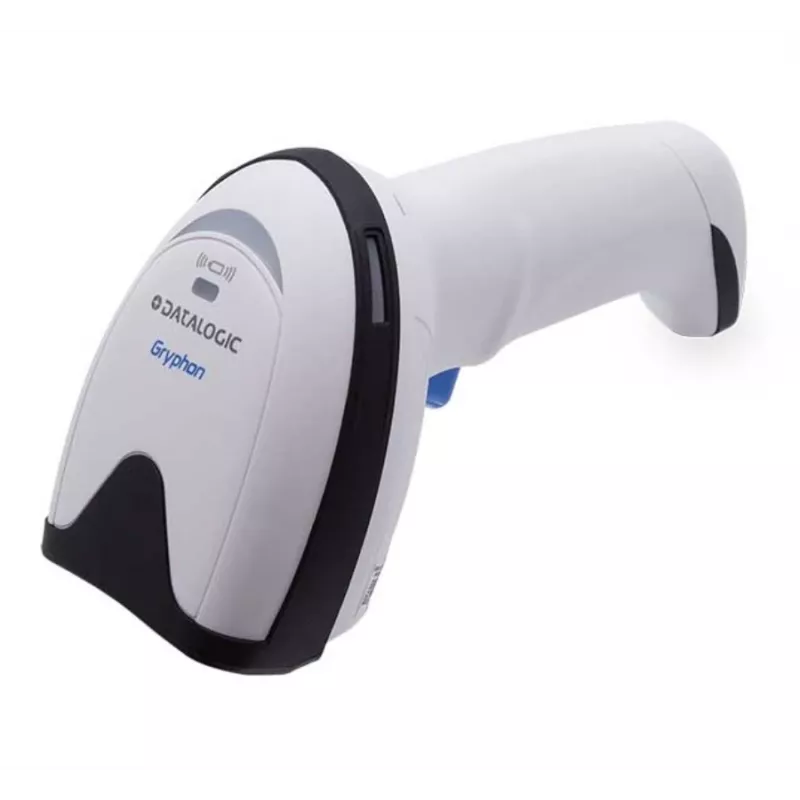

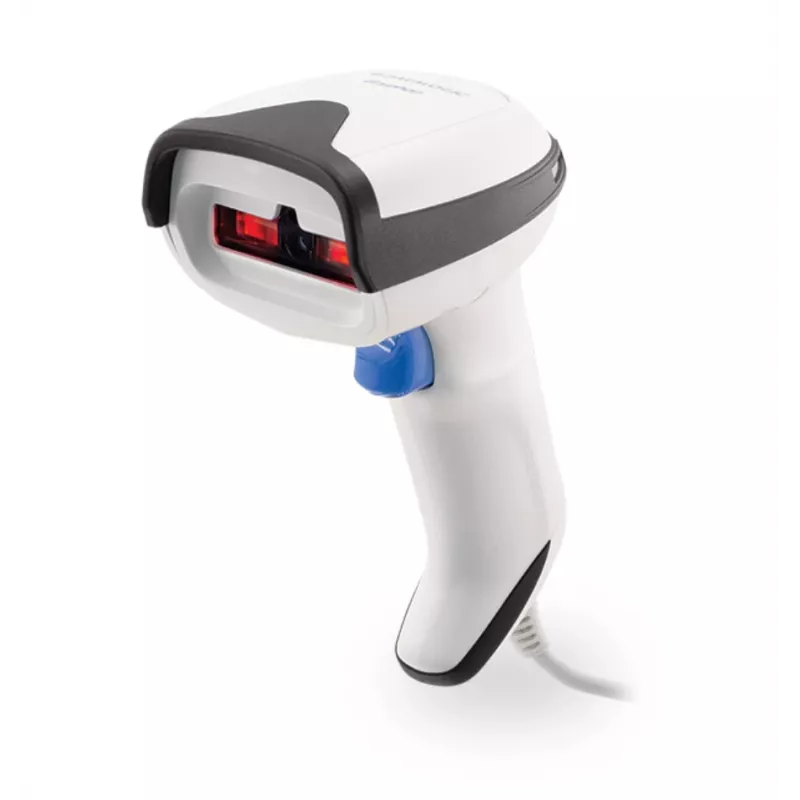

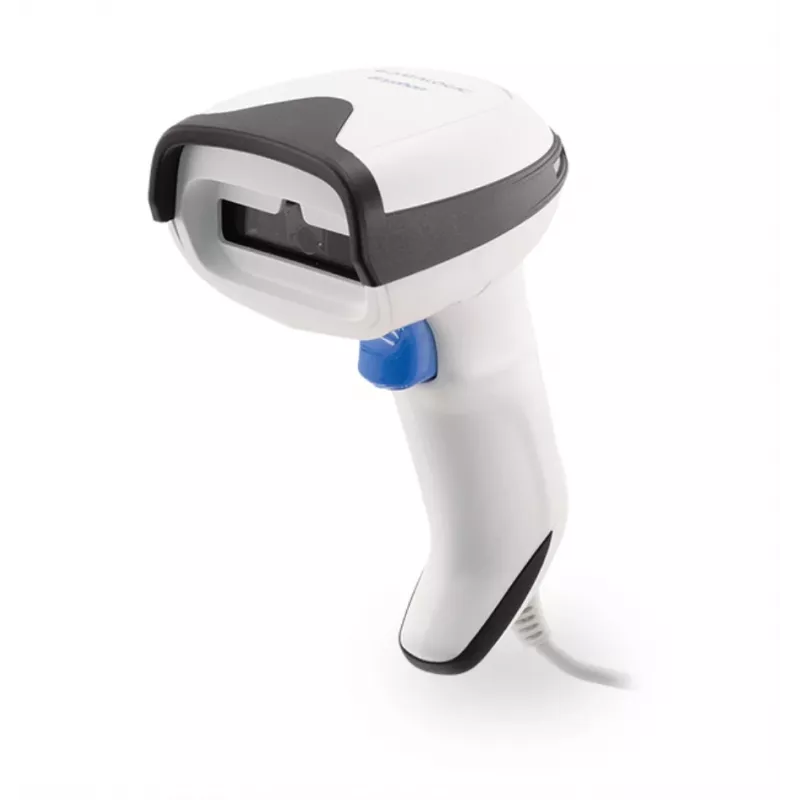

Φορητός αναγνώστης barcode Datalogic Gryphon GM4200

The Datalogic Gryphon GM4200 is a handheld 1D barcode reader from the Gryphon 4200 premium series, designed for general-purpose scanning tasks. This wireless GM4200 model uses a CCD sensor and offers a cordless scanning solution with a radio range suitable for retail and logistics environments. The scanner is lightweight, has an IP52 rating for basic protection against dust and water, and includes a rechargeable lithium‑ion battery for sustained operation.

Advantages

The Gryphon GM4200 delivers best-in-class reading performance for 1D codes, including the ability to read both high-density and low-resolution barcodes, poorly printed or damaged labels, and codes displayed on mobile device screens. Motionix motion-sensing technology detects operator movement to automatically put the scanner into ready-to-read mode, while the soft line viewfinder simplifies aiming and reduces accidental reads when multiple barcodes are present. Cordless operation provides greater mobility within a typical 50 m operating range.

Suitable for

• Retail point-of-sale scanning
• Inventory management and stock control
• Warehouse and goods-in/goods-out processing
• Mobile payment and ticket validation

Key specifications

• Model: Datalogic Gryphon GM4200 (GM4200-WH-433K1)
• Barcode type: 1D CCD reader
• Wireless: STAR Cordless System narrow band radio (cordless)
• Typical wireless range: up to 50 m (environment dependent)
• Ingress protection: IP52
• Weight: 235 g (approx.)
• Power: Built-in rechargeable lithium‑ion battery

How to use

Charge the scanner according to the manufacturer’s instructions before first use. Switch the device on and ensure it is paired with its base station or receiver per the supplied setup procedure. Point the soft line viewfinder at the target barcode, allow Motionix to detect your natural hand movement to enter ready-to-read mode, then press the trigger or use automatic reading (if configured) to capture the barcode. For codes on mobile devices, position the screen within the viewfinder area and scan as you would printed labels.

Recommendations

For reliable performance, keep the scanner lens clean and avoid scanning from extreme angles. Use the cordless range within open line-of-sight where possible; performance may vary in environments with radio interference or dense shelving. Follow the device maintenance and charging guidelines in the official Datalogic user manual.
