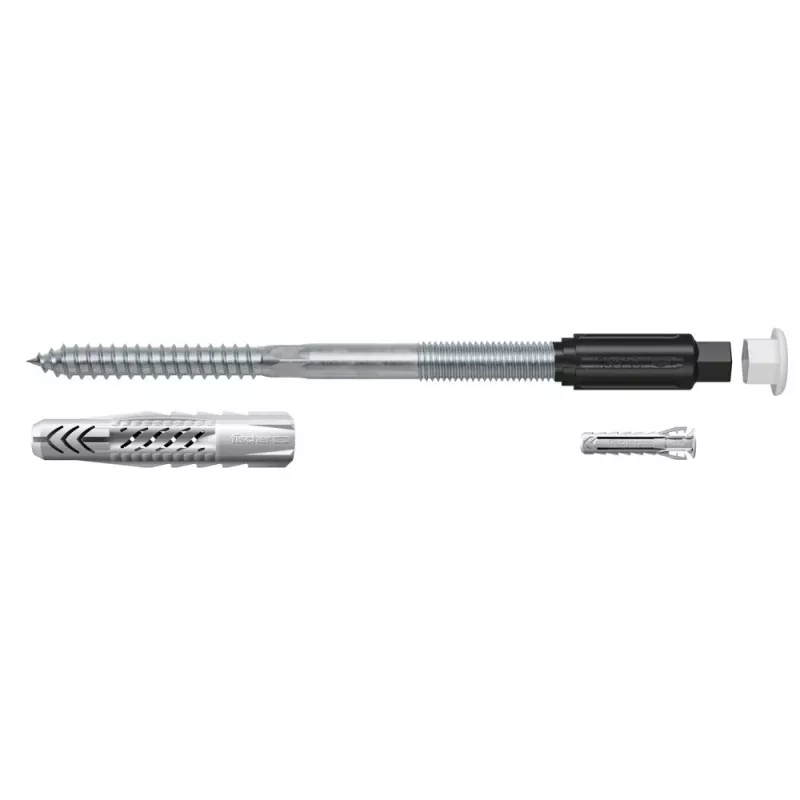

FISCHER Thermax 8/160 M6 Βύσμα θερμομόνωσης 45690

The Thermax 8/160 M6 tackles the challenge of fixing loads to external thermal insulation composite systems (ETICS) without creating a thermal bridge. Its conical head design allows flush mounting, and the galvanised M6 threaded rod provides corrosion protection for the metal component, making it a reliable choice for long-term exterior applications.

Highlights

• Thermal bridge free: conical head and plastic body reduce heat loss at the fixing point
• Through-fixing method with M6 thread for secure attachment of light to medium loads
• Approved for use in concrete, solid brick, perforated brick, and aerated concrete
• Galvanised steel threaded rod for corrosion resistance
• ETA-12/0070 approval confirms performance for ETICS applications

In daily use

Installation is straightforward: drill an 8 mm hole to a depth of at least 170 mm, then set the anchor using a standard drill and an M6 wrench or socket. The anchor body is made of high-quality nylon, providing durability and resistance to weathering. The usable length of 160 mm accommodates typical insulation thicknesses, while the total anchor length of 180 mm ensures a secure embedment in the base material.

Full specifications

• Anchor type: Thermal insulation anchor
• Fastening method: Through-fixing
• Thread size: M6
• Drill hole diameter: 8 mm
• Minimum drill hole depth: 170 mm
• Anchor length (plastic body): 180 mm
• Usable length (insulation thickness): 160 mm
• Material (anchor body): High-quality nylon
• Material (threaded rod): Galvanised steel
• Base material compatibility: Concrete, solid brick, perforated brick, aerated concrete
• Load capacity (concrete): Up to 0.15 kN
• Installation type: Pre-positioned and push-through installation
• Head type: Conical (for flush mounting and thermal separation)
• Approvals: ETA-12/0070
• Temperature range (installation): -5°C to +40°C
• Temperature range (service): -40°C to +80°C

Final note

The Thermax 8/160 M6 is a specialised anchor for ETICS, offering a thermal bridge free solution with verified performance for a range of masonry substrates.
