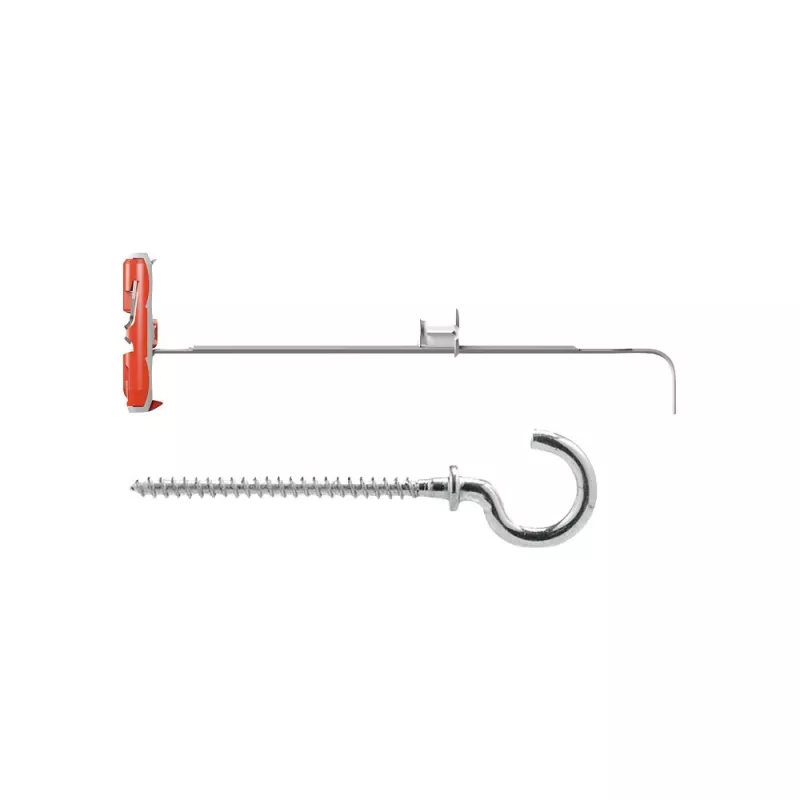

Fischer DuoTec 10 RH K NV Ούπα με στρογγυλό άγκιστρο, 1 σετ (537264)

The Fischer DuoTec 10 RH K NV is a two-component cavity anchor set designed for secure fastening in hollow and panel materials. Its flexible tilting element enables installation in narrow cavities, while the integrated scale helps determine the correct screw length. Each set includes 10 anchors with round hooks and galvanized steel threads.

Highlights

• Two-component design for high load-bearing capacity
• Flexible tilting element for easy installation in narrow cavities
• Integrated scale for determining screw length
• Round hook with M5 thread, galvanized steel
• Pre-positioned push-through installation

In daily use

This anchor set is suitable for mounting shelves, wall cabinets, TV mounts, light fixtures, and handrails in plasterboard, gypsum fibreboard, wood-based panels, steel sheets, plastic panels, hollow bricks, and concrete hollow blocks. The 10 mm anchor requires a 10 mm drill hole and a minimum cavity depth of 50 mm. Panel thickness can range from 9.5 mm to 55 mm. Recommended load capacity on 12.5 mm plasterboard is 0.2 kN shear and 0.15 kN tensile.

Full specifications

• Anchor type: Cavity anchor
• Anchor diameter: 10 mm
• Drill hole diameter: 10 mm
• Minimum cavity depth: 50 mm
• Panel thickness: 9.5 – 55 mm
• Anchor body material: High-quality nylon (PA6)
• Hook/nut material: Galvanized steel
• Hook thread size: M5
• Quantity per pack: 10 pieces

Final note

Fischer DuoTec anchors provide reliable fastening in hollow materials, combining ease of installation with high load-bearing performance.
