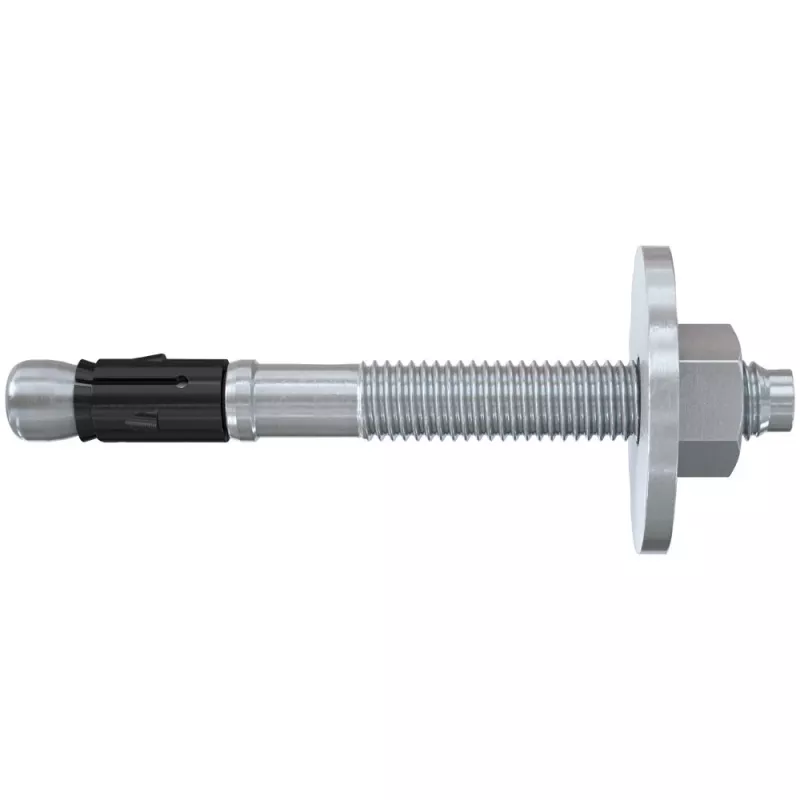

Fischer 564681 Bolzenanker FAZ II Plus 10/10 K GS - 100 τεμ.

For heavy-duty anchoring in concrete, the Fischer FAZ II Plus bolt anchor delivers high load capacity and reliable performance. This galvanized steel anchor, size 10x95 mm, is ideal for structural applications where safety is paramount. The push-through installation allows for quick and secure fastening of fixtures up to 10 mm thick. Supplied in a pack of 100, it is suitable for cracked and non-cracked concrete from C20/25 to C50/60.

Key specifications

• Anchor type: Bolt anchor
• Material: Galvanized steel
• Anchor diameter: 10 mm
• Drill hole diameter: 10 mm
• Anchor length: 95 mm
• Thread size: M10
• Max. fixture thickness: 10 mm
• Min. anchorage depth: 40 mm
• Drill hole depth: 90 mm
• Installation: Push-through
• Approved for: Cracked and non-cracked concrete
• Concrete strength: C20/25 to C50/60
• Fire resistance: R 120
• European Technical Assessment: ETA-12/0070
• Head type: Hexagon nut with washer
• Quantity per pack: 100 pieces

Why choose it

The FAZ II Plus offers high load capacity and is approved for cracked concrete, making it suitable for safety-relevant fastenings. Its galvanized steel construction provides corrosion protection for indoor applications.

Ideal use cases

• Steel structures
• Guard rails
• Machinery
• Façade substructures

Good to know

Installation requires a hammer drill with a 10 mm bit. The anchor is set through the fixture and tightened with a torque wrench to the specified torque.
