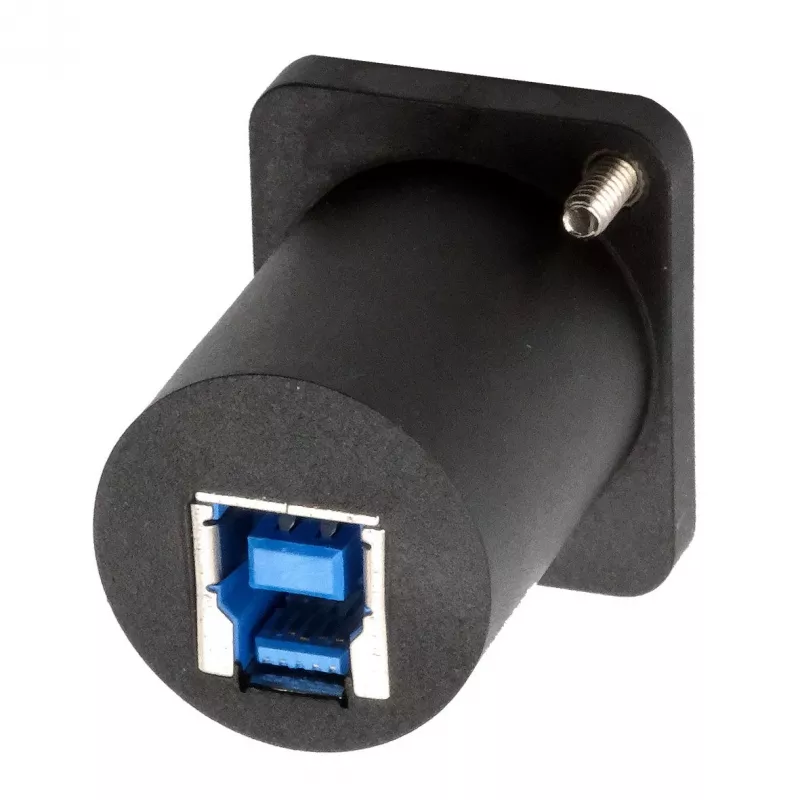

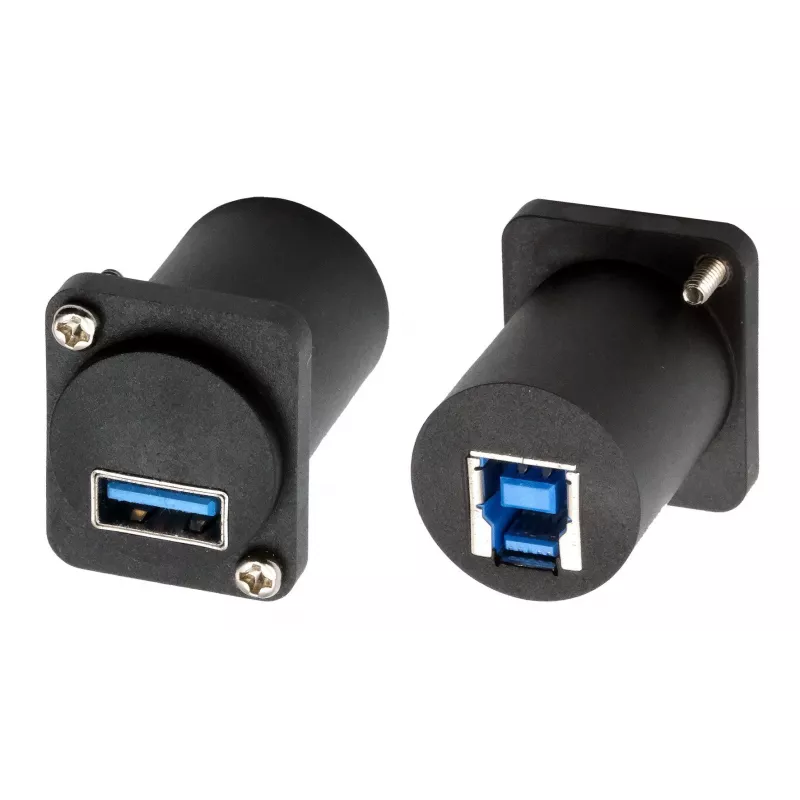

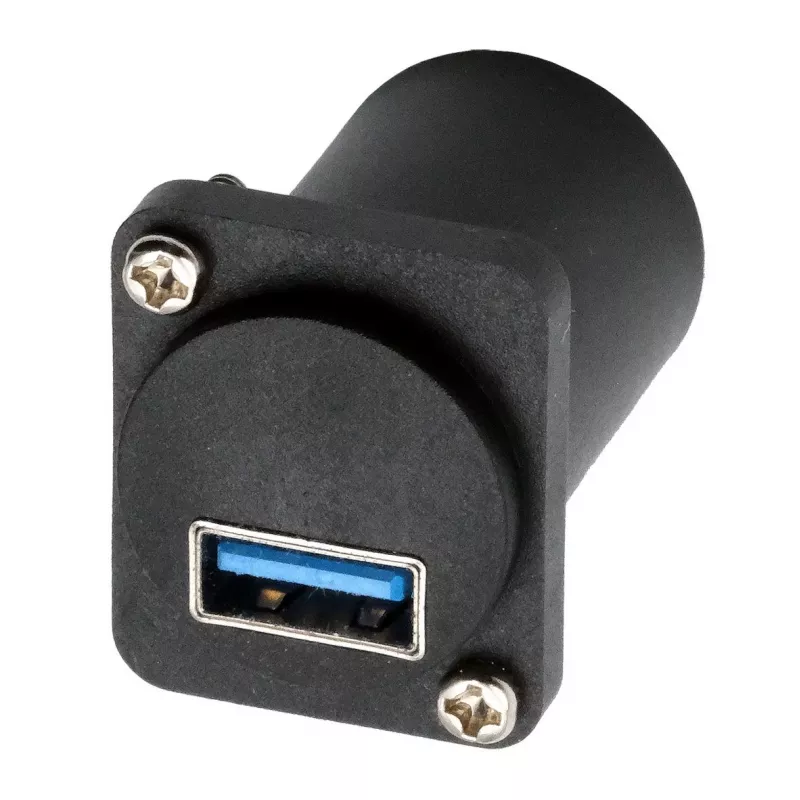

EXSYS EX-49155 Προσαρμογέας Εντοιχισμού Τύπου D USB 3.2 Gen 1, Υποδοχή USB-A σε Υποδοχή USB-B

This D-Type panel mount adapter solves the problem of providing a robust, screw-in USB connection point on enclosures, panels, or equipment housings where a standard cable-mounted port would be vulnerable or impractical. It converts a USB-A female port to a USB-B female port, allowing you to bring a USB 3.2 Gen 1 (5 Gbit/s) connection to the front or rear of a chassis.

Who is it for

System integrators, industrial PC builders, and networking professionals who need a secure, panel-mounted USB 3.2 Gen 1 interface. It is ideal for custom enclosures, rack panels, and industrial control boxes.

Main features

• USB 3.2 Gen 1 (SuperSpeed) data transfer up to 5 Gbit/s
• D-Type form factor with nickel-plated metal housing for durability
• USB Type-A female to USB Type-B female connectors

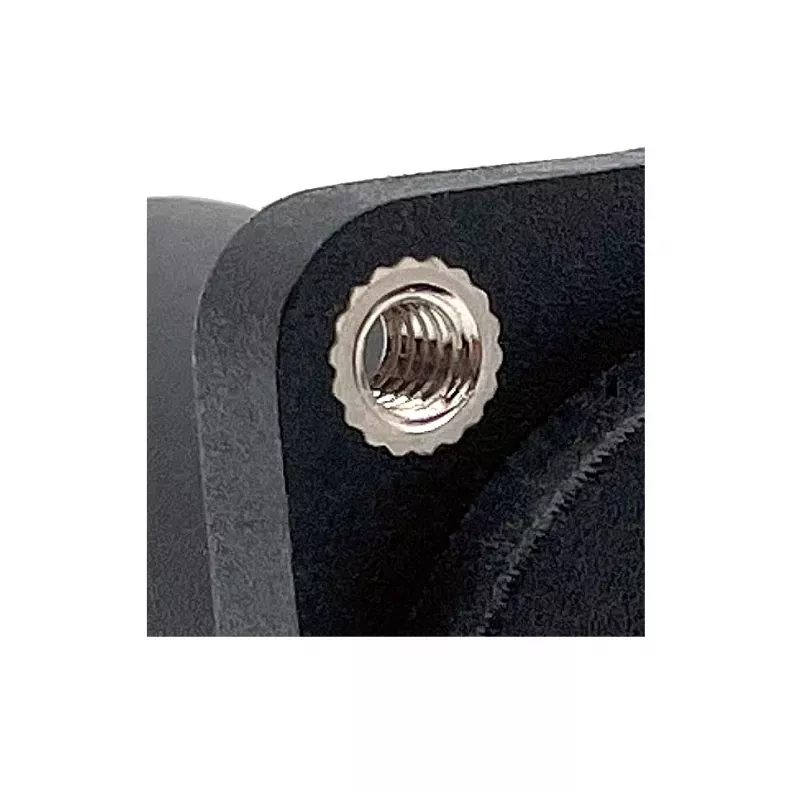

• Panel mount design with screw-in installation
• Backward compatible with USB 2.0 and USB 1.1

Specifications

• Product Type: USB Panel Mount Adapter
• USB Standard: USB 3.2 Gen 1
• Data Transfer Rate: 5 Gbit/s
• Connector A: USB Type-A Female
• Connector B: USB Type-B Female
• Form Factor: D-Type
• Mounting Type: Panel Mount (Screw-in)
• Housing Material: Nickel-plated Metal
• Colour: Silver
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -40°C to 85°C
• Operating Humidity: 0 - 90% RH (non-condensing)

Tips

Ensure the panel cut-out matches the D-Type dimensions before installation. For high-vibration environments, use thread-locking compound on the mounting screws.
