Εσωτερικός προσαρμογέας USB 3.2 Gen 2 EXSYS EX-12000

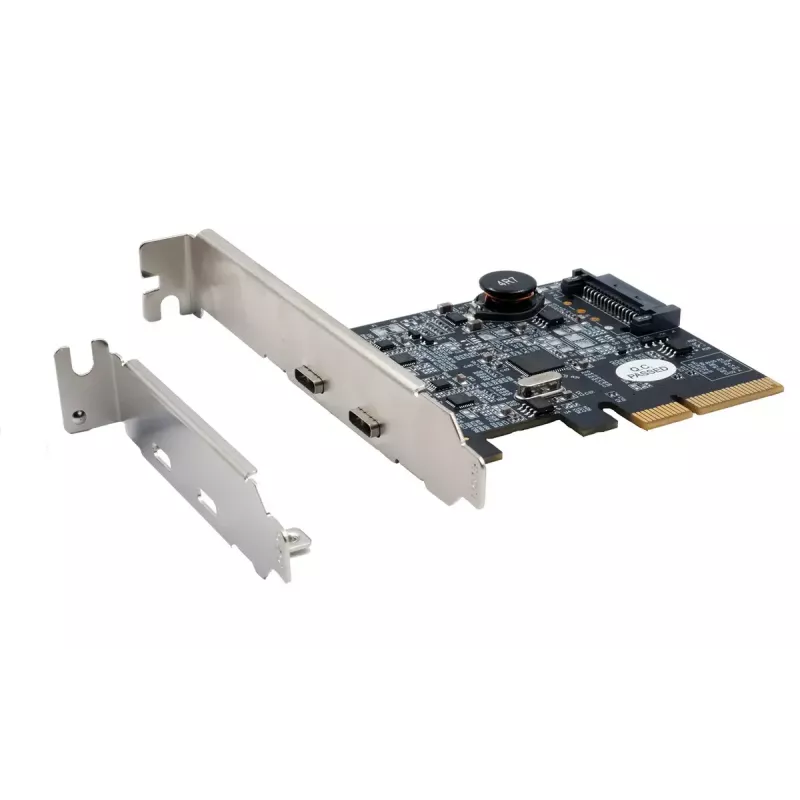

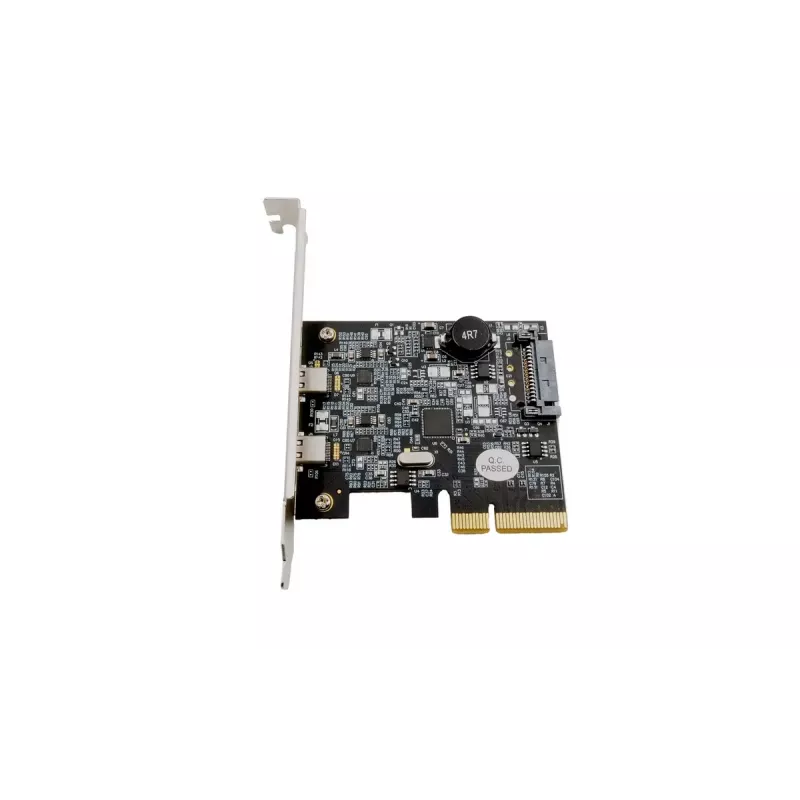

The EXSYS EX-12000 Internal USB 3.2 Gen 2 Adapter is a PCIe add-in card that adds two external SuperSpeed+ USB 3.2 Gen 2 ports (one Type-C) to a workstation, desktop or server. It supports legacy USB 1.1/2.0/3.0 devices and provides up to 10 Gbps bandwidth per the USB 3.2 Gen 2 specification, with port current up to 3.0 A for powering connected devices. A low-profile bracket is included for slim enclosures (maximum height 8 cm).

Advantages

The adapter delivers high-speed data transfer up to 10 Gbps and backward compatibility with USB 3.0, 2.0 and 1.1 devices. Inclusion of a Type-C external socket and support for 3.0 A current per port enables connection and charging of a wide range of peripherals. The PCIe Gen3x4 interface ensures adequate host bandwidth for demanding external storage and multimedia devices. A low-profile bracket is supplied for installation in compact cases.

Suitable for

• External storage enclosures and SSD/HDD docks
• High-resolution webcams and digital cameras
• Scanners and multimedia peripherals
• Workstations, desktops and servers needing additional USB-C/USB-A ports

Key specifications

• Interface to host: PCIe (Gen3 x4)
• External ports: 2 × USB 3.2 Gen 2 (1 × Type-C socket)
• Supported USB speeds: 1.5 Mbps (Low), 12 Mbps (Full), 480 Mbps (High), 5 Gbps (USB 3.0), 10 Gbps (USB 3.2 Gen2)
• Port current: up to 3.0 A per external USB 3.2 Gen2 port

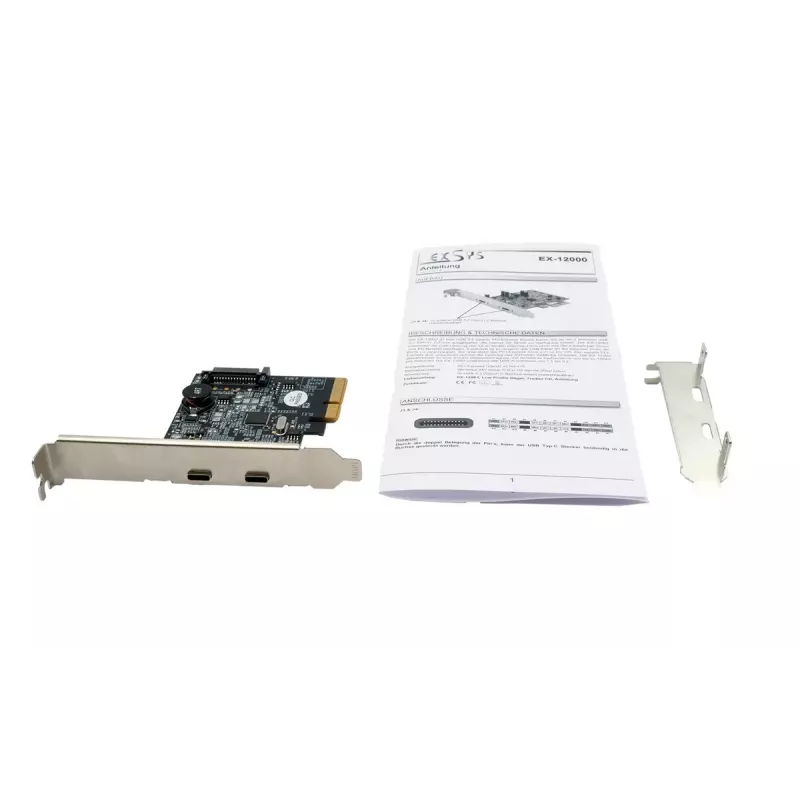

• Included accessory: low-profile bracket (for enclosures up to 8 cm height)
• Brand / Model: Exsys EX-12000, MPN EX-12000, EAN 4718359120008

How to use

Power down the computer and open the case. Insert the EX-12000 into an available PCIe slot (Gen3 x4 or compatible). Secure the card with the bracket screw and choose the full-height or low-profile bracket depending on the chassis. Reassemble the case and power on the system. Install any required drivers supplied by the operating system or Exsys if prompted. Connect USB devices to the external Type-C or other USB ports and verify recognition by the host.

Recommendations

Use the EX-12000 for high-bandwidth external storage and multimedia devices to benefit from USB 3.2 Gen2 speeds. Ensure the host motherboard supports PCIe Gen3 x4 or compatible bandwidth for optimal performance, and use quality USB-C cables rated for USB 3.2 Gen2 (10 Gbps) when connecting high-speed peripherals.
