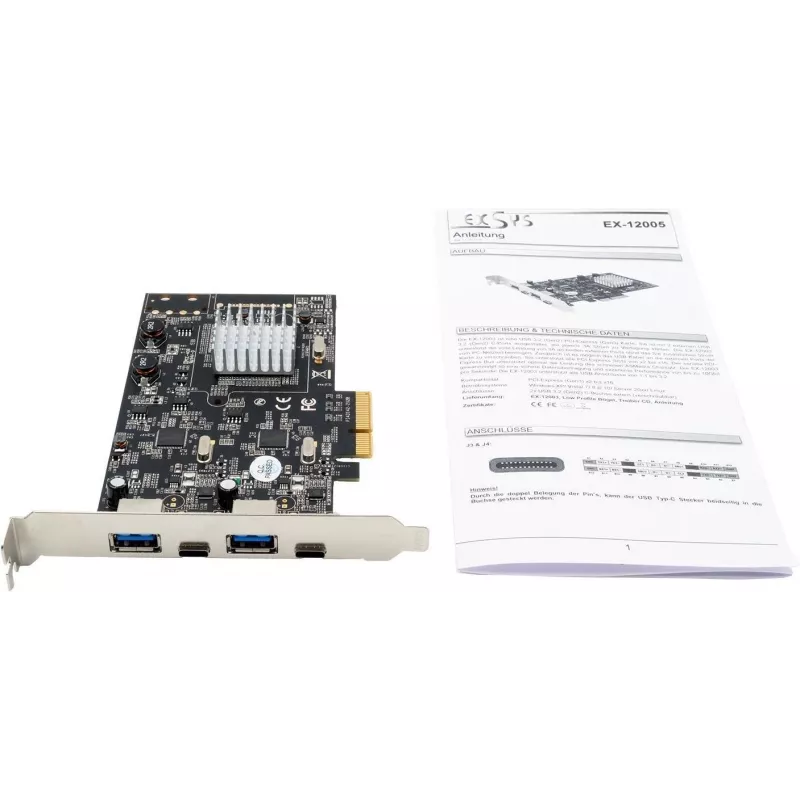

EXSYS EX-12005 PCI Express USB 3.2 Gen 2 (10 Gbps) 2-Port USB-A Κάρτα Host Controller με βραχίονα Low-Profile

The EXSYS EX-12005 is a high-performance PCI Express USB 3.2 Gen 2 host controller card that adds two USB 3.2 Gen 2 Type-A ports to your desktop computer. With data transfer rates up to 10 Gbps per port, it is ideal for connecting high-speed external storage, SSDs, and other USB 3.2 Gen 2 devices. The card features the ASMedia ASM3142 chipset, supports UASP for enhanced performance, and includes both standard and low-profile brackets for flexible installation.

Advantages

Experience blazing-fast data transfers with USB 3.2 Gen 2 technology, backward compatible with USB 3.0/2.0/1.1. The PCIe 3.0 x4 interface ensures maximum bandwidth, while UASP support reduces latency and improves efficiency. Hot-swap capability allows you to connect and disconnect devices without rebooting.

Suitable for

• Desktop computers requiring additional high-speed USB ports
• Users of external SSDs, high-resolution webcams, or VR headsets
• Workstations for video editing, data backup, and large file transfers

Key specifications

• Host Interface: PCI Express x4 (PCIe 3.0)
• USB Standard: USB 3.2 Gen 2 (10 Gbps)
• Number of USB Ports: 2 x USB Type-A
• Chipset: ASMedia ASM3142
• Power Connector: SATA 15-pin
• Form Factor: Standard Profile with low-profile bracket included
• UASP Support: Yes
• Hot-Swap Support: Yes
• Operating Systems: Windows 7/8/10/11, Linux, macOS
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, connect the SATA power cable to your power supply. Ensure your PCIe slot supports x4 or higher. Compatible with most desktop motherboards.
