EXERTIS CONNECT Καλώδιο προσαρμογέα τροφοδοσίας Molex σε PCI-E, 25 cm 146691

Upgrading to a graphics card that needs a 6-pin PCIe power connector but your power supply only has spare Molex plugs? This adapter cable solves that by converting two Molex connectors into one PCIe 6-pin female socket, so you can power your GPU without replacing the PSU.

Who is it for

PC builders and upgraders using ATX power supplies with available Molex connectors who need to connect a PCIe graphics card or expansion card requiring a 6-pin PCIe power input.

Main features

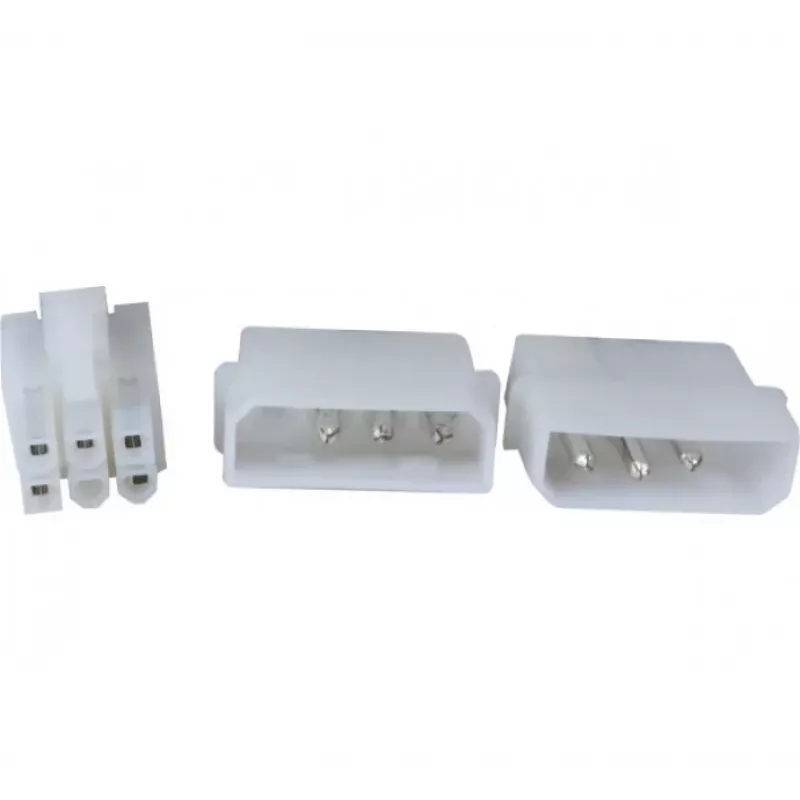

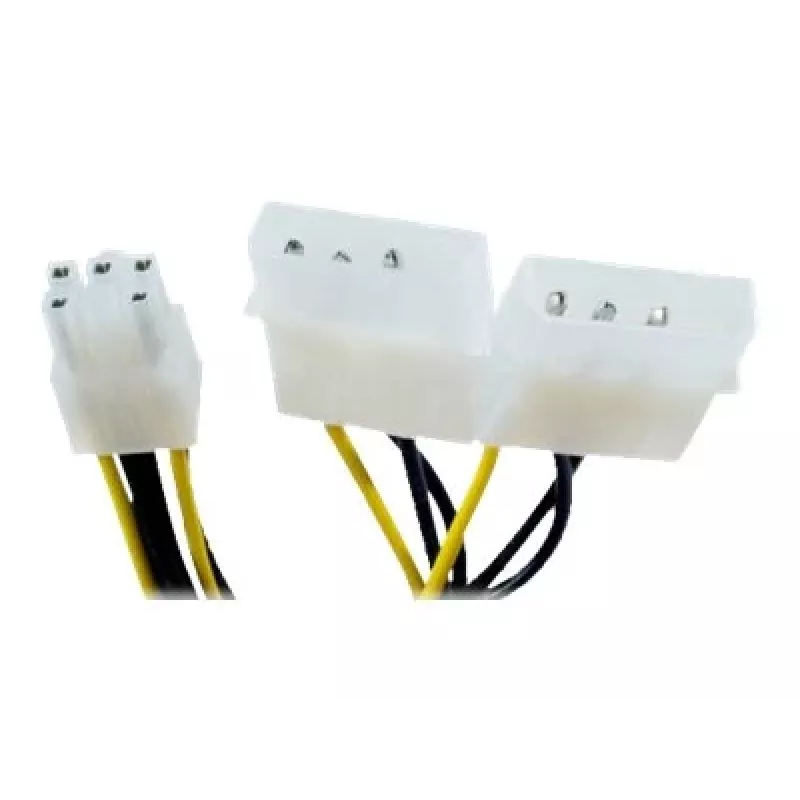

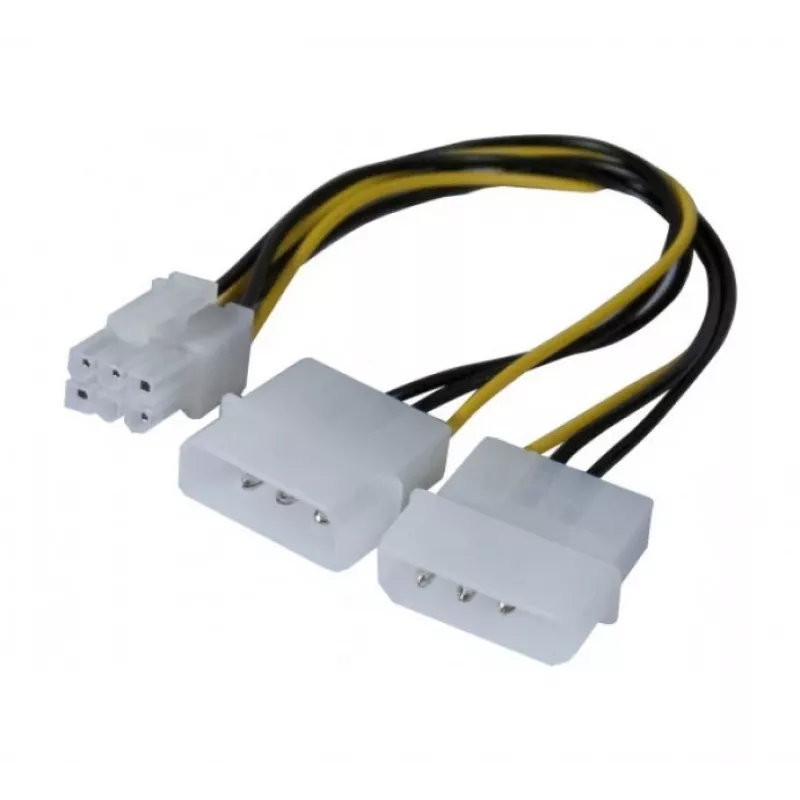

• Converts two 4-pin Molex male connectors to one 6-pin PCIe female connector
• 25 cm cable length for flexible routing inside the case
• 18 AWG copper conductors for reliable 12V DC power delivery
• PVC insulation in black, yellow, and red for easy identification
• Plug and play – no drivers or software required

Specifications

• Connector 1: 2 x Molex (4-pin) male
• Connector 2: 1 x PCI Express (6-pin) female
• Cable length: 25 cm
• Wire gauge: 18 AWG
• Voltage rating: 12V DC
• Conductor material: Copper
• Insulation material: PVC
• Colour: Multicolour (black, yellow, red)

Tips

Ensure your power supply can deliver enough current on the 12V rail for your graphics card. Connect both Molex plugs to separate cables from the PSU if possible to avoid overloading a single rail.
