Τροφοδοτικό Akasa 65W NUC και mini-ITX

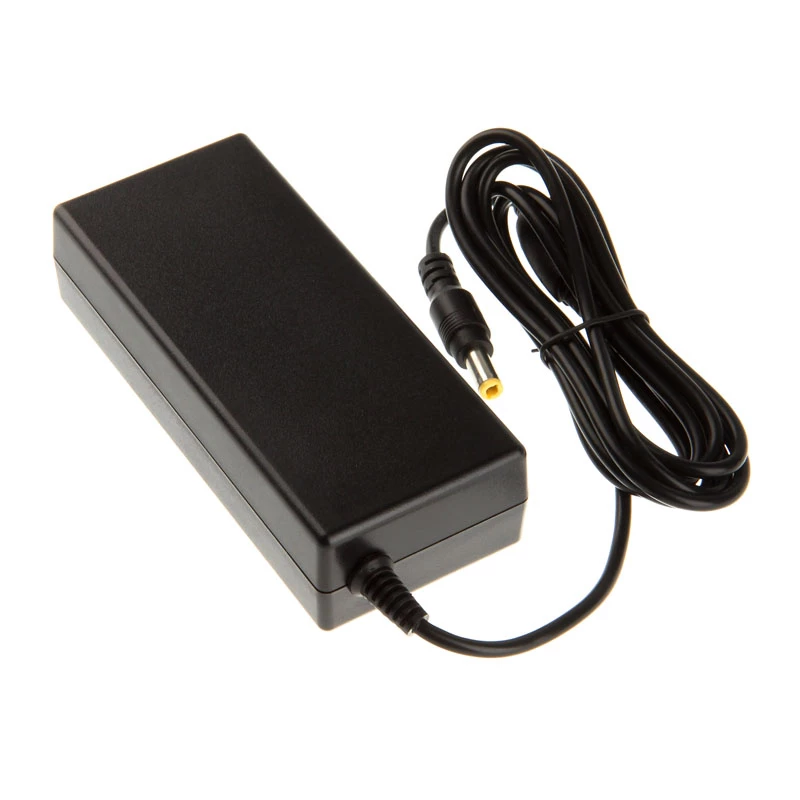

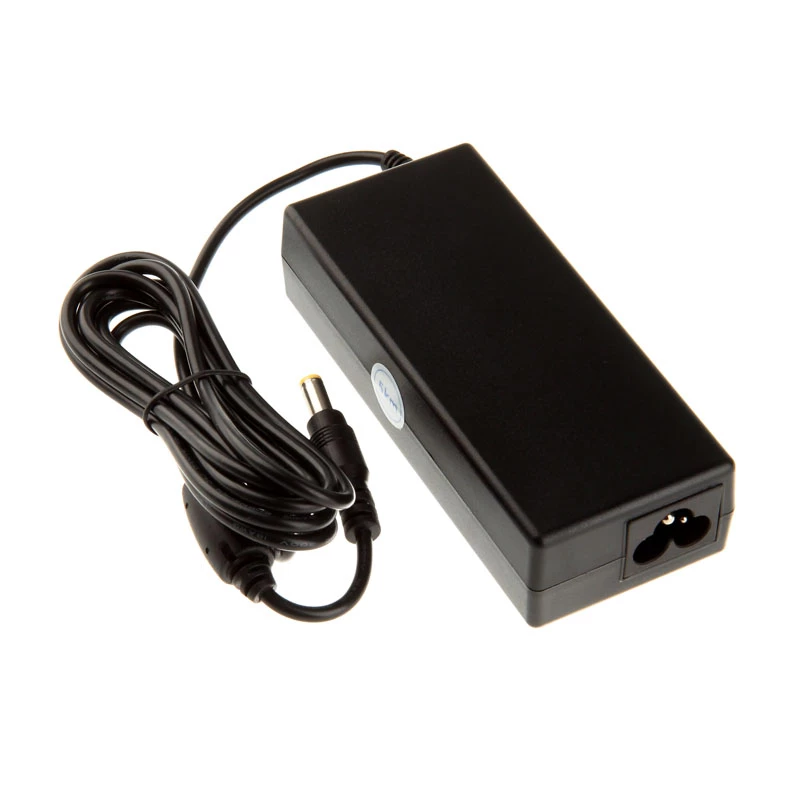

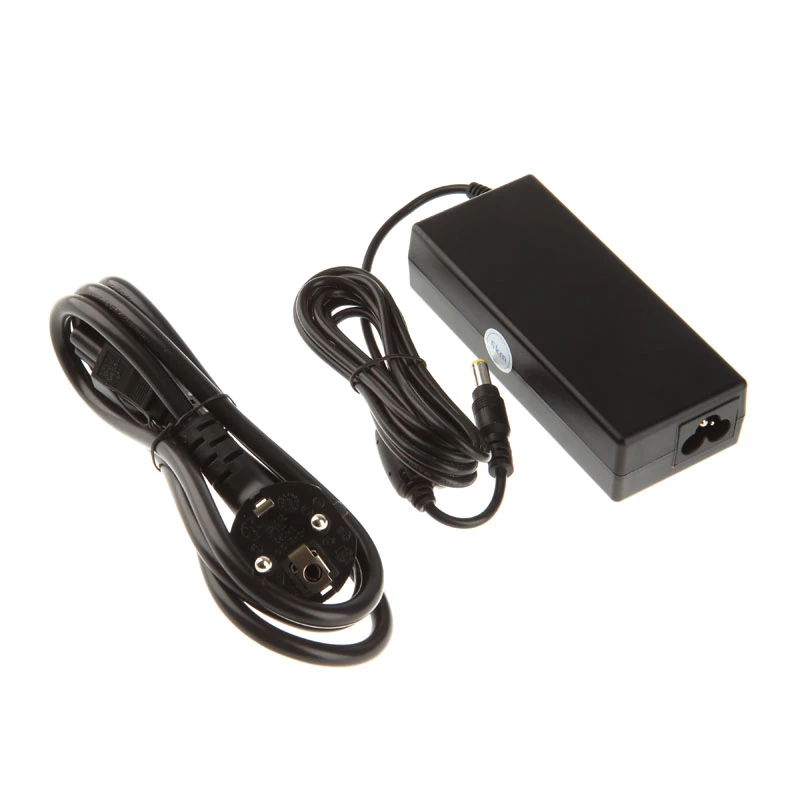

The Akasa 65W NUC and mini-ITX power adapter is an indoor power supply designed for small form-factor systems that require a 19V input. It provides a single 19V rail with a maximum output of 65W (3.4A) and uses a 5.5mm outer / 2.5mm inner barrel connector. The adapter has a fanless design, is black in colour, and is certified to CE, GS and UL standards for safe operation.

Advantages

Compact and fanless construction reduces noise and potential points of failure while allowing reliable continuous operation. Wide input voltage range (100–240V) supports use in different regions. Standard 5.5mm/2.5mm barrel jack and a single 19V output rail ensure compatibility with NUC and mini-ITX motherboards that require 19V.

Suitable for

• NUC and mini-ITX systems requiring 19V input
• Small form-factor desktop PCs and embedded systems
• Home or office environments where a quiet, fanless adapter is preferred

Key specifications

• Maximum output: 65W
• Output voltage: 19V (single rail)
• Maximum current: 3.4A
• Connector: 5.5mm OD / 2.5mm ID barrel jack
• Input voltage: 100–240V AC
• Design: Fanless
• Colour: Black
• Certifications: CE, GS, UL

How to use

Confirm that your NUC or mini-ITX motherboard requires a 19V input and that the device’s power requirements do not exceed 65W. Connect the adapter to a compatible AC mains outlet (100–240V) and insert the 5.5mm/2.5mm barrel plug into the system power jack. Ensure a secure fit and avoid forcing the connector. Disconnect from mains before performing any maintenance on the connected system.

Recommendations

Use the adapter in a dry, well-ventilated indoor location and keep the ventilation area around the adapter clear. Do not operate with visible damage to the cable or housing. Match the voltage and connector polarity to your device before use to prevent damage.
