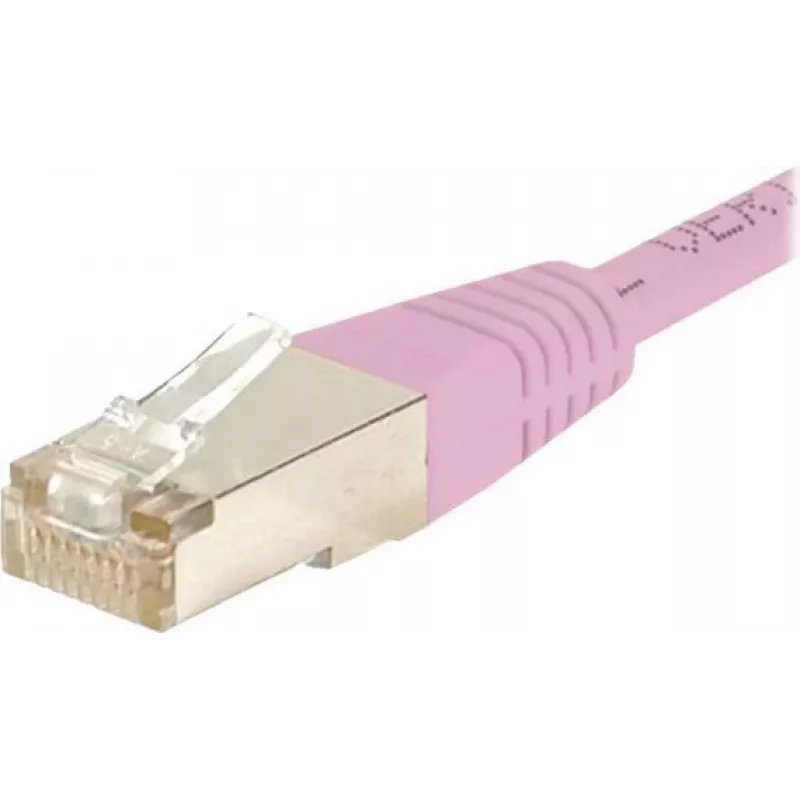

EXERTIS CONNECT Καλώδιο Patch CAT.6 S/FTP PiMF, Ροζ, 1,0 m, Slim Snagless Boot, LSZH 854480

Network cables are often the weakest link in high-speed data transmissions, especially in dense patch panels where space is limited and electromagnetic interference is high. This EXERTIS CONNECT patch cable eliminates those bottlenecks with CAT.6 performance and robust S/FTP shielding, ensuring reliable gigabit connectivity even in demanding environments. The slim snagless boot design allows for easy insertion and removal in high-density switches without damaging adjacent ports, while the pink jacket provides quick identification for organized cable management.

Who is it for

IT professionals, network administrators, and home users who need a dependable, high-performance cable for gigabit Ethernet connections in server rooms, offices, or home networks. Ideal for those who value both technical excellence and visual cable organization.

Main features

• CAT.6 standard with up to 250 MHz bandwidth and 1 Gbps data transfer rate
• S/FTP shielding: overall braided screen plus foil around each twisted pair (PiMF) for maximum EMI/RFI protection
• Gold-plated RJ45 connectors (3µm) ensure corrosion resistance and reliable contact
• Slim snagless boot protects the locking tab and allows easy access in high-density ports
• LSZH (Low Smoke Zero Halogen) jacket for safety in case of fire, emitting low smoke and no toxic halogens
• Flexible 27 AWG stranded copper conductors (7 strands) for easy routing and durability
• Pink color for quick identification and neat cable management
• Supports Power over Ethernet (PoE) for devices like IP cameras and access points

Specifications

• Cable length: 1.0 m
• Cable standard: CAT.6
• Shielding type: S/FTP (Screened Foiled Twisted Pair) with PiMF
• Connector type: RJ45 (8P8C) male to male
• Connector plating: Gold (3µm)
• Conductor material: Copper, AWG 27/7 stranded
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Wiring standard: TIA/EIA 568B
• Bandwidth: Up to 250 MHz
• Data transfer rate: Up to 1000 Mbps (1 Gbps)
• PoE support: Yes
• Halogen free: Yes
• Operating temperature: -20°C to +60°C
• Compliance: RoHS, REACH

Tips

For optimal performance, avoid sharp bends and do not exceed the minimum bend radius. When routing through cable trays, use Velcro straps instead of zip ties to prevent crushing the jacket. To maintain signal integrity, keep the cable away from power lines and fluorescent lighting. The pink color can be used to designate a specific VLAN or network segment for easy troubleshooting.
