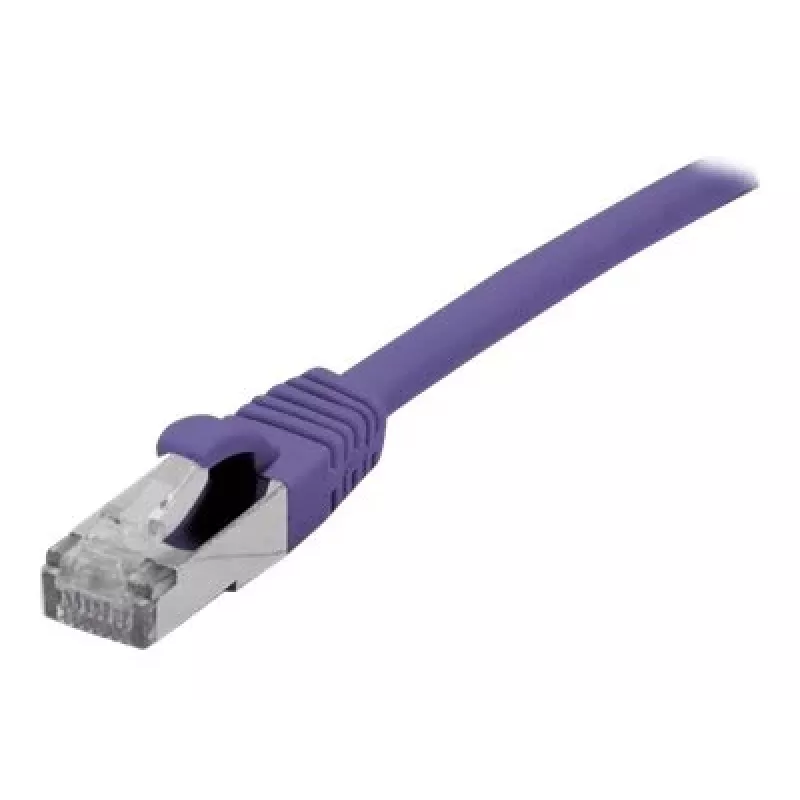

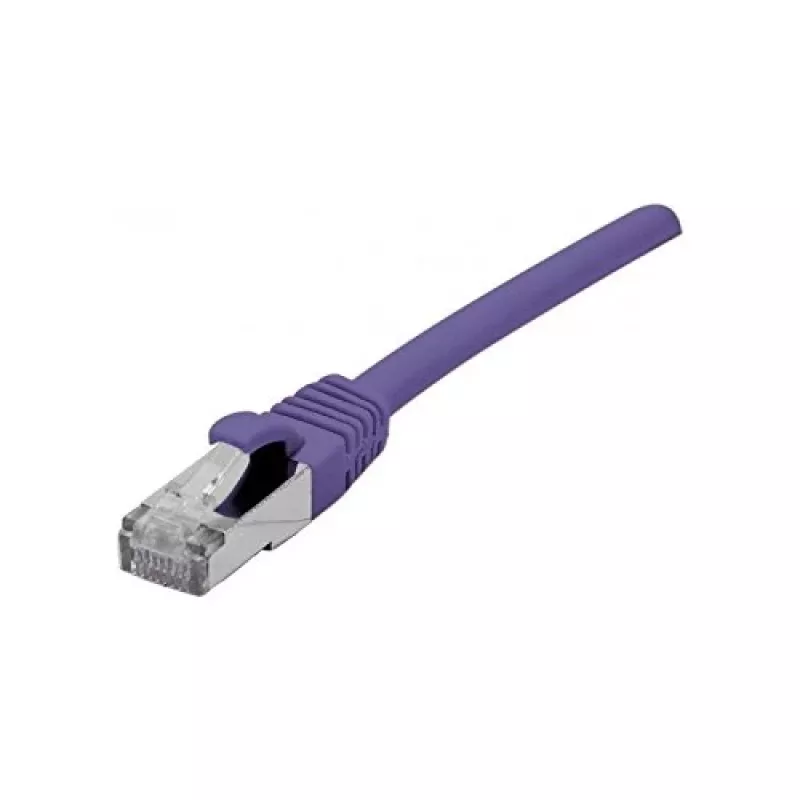

EXERTIS CONNECT Cat 6A S/FTP Patchkabel, μωβ, 20 m, Slim Snagless, 10 Gbps 858524

Long cable runs in data centers and offices often suffer from crosstalk and interference, degrading network performance. This 20-meter Cat 6A patch cable from EXERTIS CONNECT solves that problem with S/FTP shielding: each twisted pair is wrapped in metal foil, and an overall braided screen protects the entire bundle. The result is reliable 10 Gigabit Ethernet up to 500 MHz, even in electrically noisy environments.

Who is it for

Network administrators, IT professionals, and power users who need a dependable, high-speed connection over longer distances. Ideal for connecting switches, servers, patch panels, and PoE devices in structured cabling systems.

Main features

• Cat 6A performance with S/FTP (PiIMF) shielding for superior noise immunity
• Supports 10GBASE-T up to 500 MHz bandwidth
• 20-meter length for flexible placement
• Violet jacket for easy color-coding
• Slim snagless boot protects the locking tab and fits in high-density ports
• Gold-plated RJ45 connectors (50µ") ensure corrosion resistance and reliable contact
• Stranded copper conductors (AWG 26/7) for flexibility
• PVC jacket for durability
• Supports PoE, PoE+, and PoE++ for powering devices

Specifications

• Cable type: Patch cable
• Category: Cat 6A (Class EA)
• Shielding: S/FTP (PiIMF)
• Length: 20 m
• Colour: Violet
• Connector type: RJ45 (8P8C) male to RJ45 (8P8C) male
• Connector plating: Gold-plated (50µ")
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: PVC
• Bandwidth: Up to 500 MHz
• Data transfer rate: 10 Gbps
• Boot type: Slim snagless
• Wiring standard: TIA/EIA 568B
• Standard compliance: ISO/IEC 11801, EN 50173, TIA/EIA 568B.2-10
• PoE support: PoE, PoE+, PoE++
• Impedance: 100 Ohm
• Operating temperature: -20°C to 60°C

Tips

Use violet cables to designate a specific network segment or VLAN, making troubleshooting faster. When routing, avoid sharp bends; the slim boot helps but maintain a minimum bend radius of 4 times the cable diameter to preserve performance.
