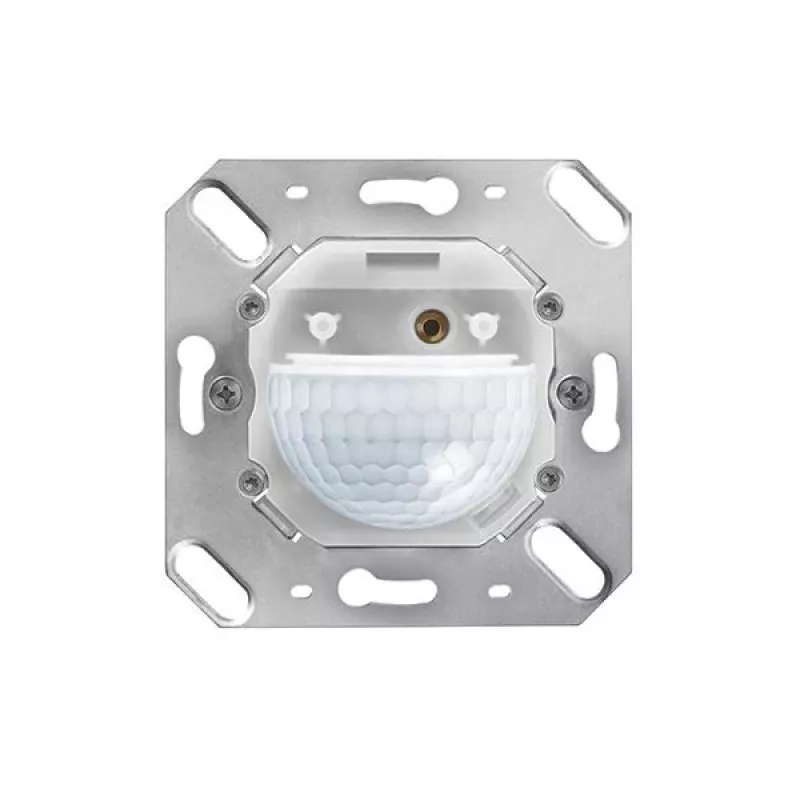

ESYLUX PD-C 180i KNX Επιτοίχιος ανιχνευτής παρουσίας 180°

The ESYLUX PD-C 180i KNX is a high-quality wall-mounted presence detector designed for intelligent building automation. With a 180° detection angle and passive infrared (PIR) technology, it reliably detects movement and presence in rooms up to 10 meters in diameter. Ideal for KNX bus systems, this detector integrates seamlessly into smart home and commercial installations, offering constant light control, presence detection, and HVAC management.

Advantages

Energy-efficient and precise, the PD-C 180i KNX reduces energy consumption by automatically adjusting lighting and HVAC based on occupancy. Its self-learning function adapts to user behavior, while scene control and logic functions provide flexible automation options. The integrated light sensor measures ambient brightness from 0 to 2000 lux, enabling constant light control for optimal comfort.

Suitable for

• Office spaces and meeting rooms
• Classrooms and lecture halls
• Corridors and stairwells
• Open-plan areas and lobbies
• Any KNX-based building automation project

Key specifications

• Detection angle: 180°
• Detection range (tangential): max. 10 m diameter
• Recommended mounting height: 1.1 - 2.2 m
• Sensor technology: Passive Infrared (PIR)
• Bus system: KNX
• Integrated light sensor: 0 - 2000 Lux
• Number of channels: 3 (Light, HVAC, Presence)
• IP protection class: IP20
• Operating voltage: KNX bus voltage (21-30V DC)
• Power consumption: approx. 0.5 W
• Operating temperature: -5 °C to +50 °C
• Colour: White (RAL 9010)
• Material: UV-stabilised polycarbonate
• Dimensions (visible part): 80 x 80 mm
• Installation depth: approx. 35 mm

Recommendations

For optimal performance, mount the detector at the recommended height and ensure a clear line of sight to the monitored area. Combine with other KNX devices for comprehensive building automation.
