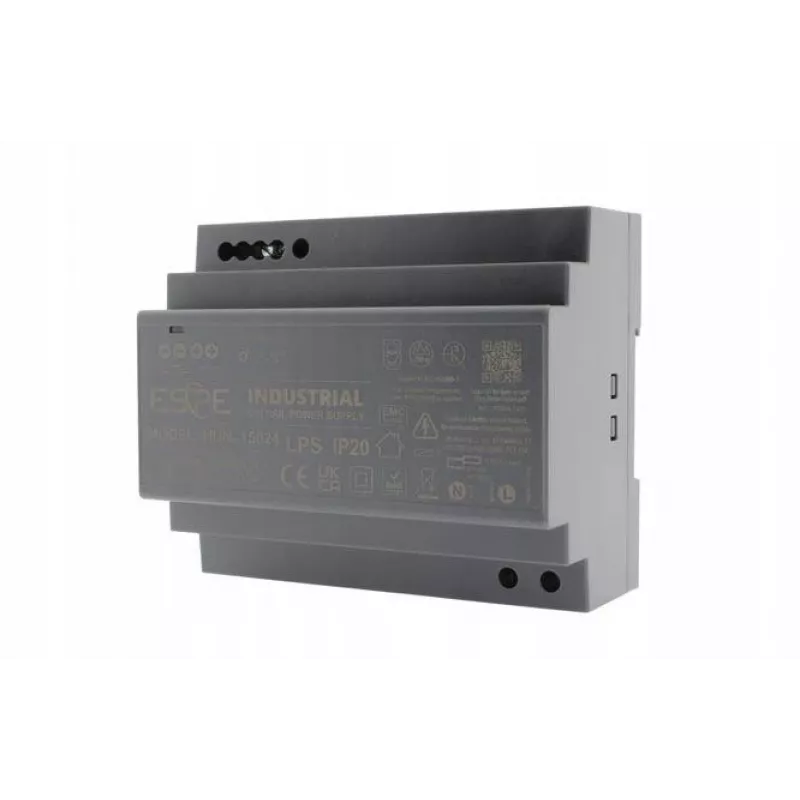

ESPE HDN-15024 τροφοδοτικό ράγας DIN 24V 150W 6,25A

The ESPE HDN-15024 is a high-performance DIN rail power supply delivering a stable 24V DC output with 150W power and 6.25A current. Designed for industrial automation, control systems, and building management, it ensures reliable operation in demanding environments.

Advantages

Compact metal housing for efficient heat dissipation; wide input voltage range (85-264V AC / 120-370V DC) for global use; comprehensive protections (overload, overvoltage, short circuit, overtemperature) safeguard connected equipment; high efficiency (88%) reduces energy loss; free air convection cooling ensures silent operation.

Suitable for

• Industrial control panels
• PLC and automation systems
• Building automation (HVAC, lighting)
• Security and access control systems
• Telecommunications equipment

Key specifications

• Output Voltage: 24V DC (adjustable 21.6-28.8V)
• Output Current: 6.25A
• Output Power: 150W
• Input Voltage: 85-264V AC / 120-370V DC
• Input Frequency: 47-63 Hz
• Efficiency: 88%
• Ripple & Noise: <150mVp-p
• Hold-up Time: >20ms (230VAC, full load)
• Isolation: I/O 3kV AC, I/G 1.5kV AC
• Operating Temperature: -20°C to +70°C
• Cooling: Free air convection
• Mounting: DIN Rail TS-35/7.5 or TS-35/15
• Enclosure: Metal
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure adequate ventilation around the unit. The adjustable output voltage allows fine-tuning for specific load requirements. Suitable for use with ESPE and other compatible DIN rail components.
