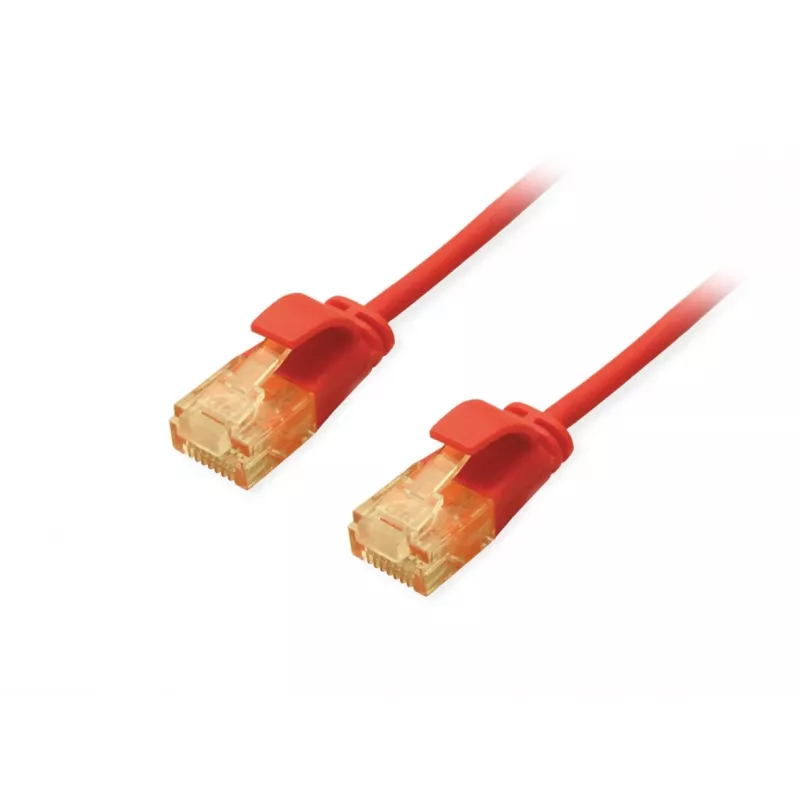

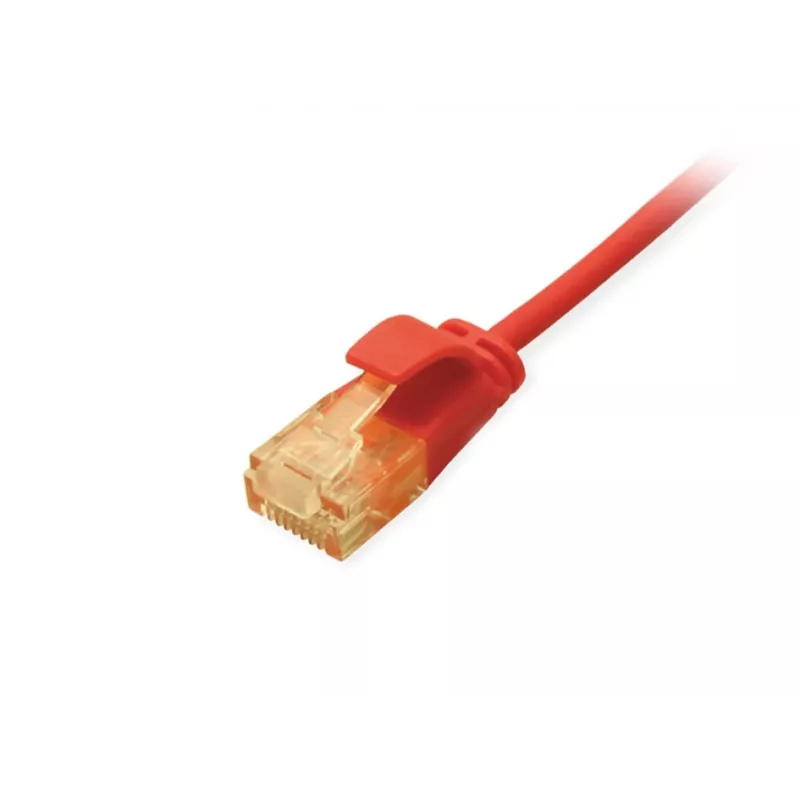

Equip Cat.6A U/UTP λεπτό καλώδιο patch 0,25 m κόκκινο 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 0.25m in red is a slim, high-performance networking cable for data centers, enterprise networks and high-density installations. With a reduced diameter (32 AWG) and stranded bare copper conductors, it supports 10 Gigabit Ethernet at frequencies up to 500 MHz while maintaining flexibility for frequent reconfigurations. The cable is unshielded (U/UTP), RoHS compliant and made with Low Smoke Zero Halogen (LSZH/LSOH) materials for safer operation in confined spaces.

Advantages

The slim design reduces cable bulk and improves rack airflow and cable management without sacrificing transmission performance. Support for 10GBase-T and bandwidth up to 500 MHz ensures reliable, low-crosstalk data transfer up to 10000 Mbit/s. Molded boots with strain relief increase connector durability, and the stranded conductor construction provides flexibility suitable for patching and reconfiguration. The cable is also suitable for Power over Ethernet (PoE / PoE+) applications.

Suitable for

• Patching between switches and servers in crowded racks
• High-density patch panels and telecom cabinets
• Short interconnects in data centers and server rooms (0.25 m)
• PoE and PoE+ powered devices such as access points and VoIP phones

Key specifications

• Cable type: Cat6A U/UTP (unshielded twisted pair)
• Conductor: stranded bare copper, 32 AWG
• Performance: up to 500 MHz, 10 Gigabit Ethernet (10000 Mbit/s)
• Length: 0.25 m
• Connectors: RJ-45 straight male to RJ-45 straight male
• Standards: ISO/IEC 11801, EN 50173
• Materials: LSZH/LSOH jacket, RoHS compliant
• Colour: Red

How to use

Insert one RJ-45 plug into the network port of a switch, patch panel or device and the other plug into the corresponding port. Ensure connectors are fully seated until the latch clicks. Use this 0.25 m patch cable for short links within racks or between adjacent devices. Avoid sharp bends and excessive pulling; use the molded boot and strain relief to support the connector during installation and movement.

Recommendations

For best performance, keep cable runs within recommended lengths for patch connections and avoid routing adjacent to strong EMI sources. Use the slim Cat.6A cable in high-density areas to improve airflow; verify PoE power budgets when connecting powered devices.
