Equip Cat.6A U/UTP λεπτό καλώδιο patch 0,15 m γκρι 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 0.15m is a slim, high-performance Ethernet patch cable designed for data centers, enterprise networks and high-density installations. With a reduced diameter (32 AWG) and LSZH jacket, this 0.15 m cable supports 10 Gigabit Ethernet at frequencies up to 500 MHz while allowing improved airflow and tidier cable management in crowded racks and patch panels.

Advantages

The unshielded twisted pair (U/UTP) design delivers reliable data transmission with low crosstalk in low to moderate EMI environments. Stranded bare copper conductors provide flexibility and durability for frequent reconfigurations, and the molded boot with strain relief protects the RJ-45 plugs. The cable is RoHS compliant and meets ISO/IEC 11801 and EN 50173 standards.

Suitable for

• 10 Gigabit Ethernet links in data centers and server rooms
• Patching between switches, patch panels and network devices in high-density racks
• Power over Ethernet (PoE / PoE+) connections for IP phones, cameras and access points
• Short, space-constrained cable runs where reduced diameter and flexibility are required

Key specifications

• Cable type: Cat.6A U/UTP (unshielded)

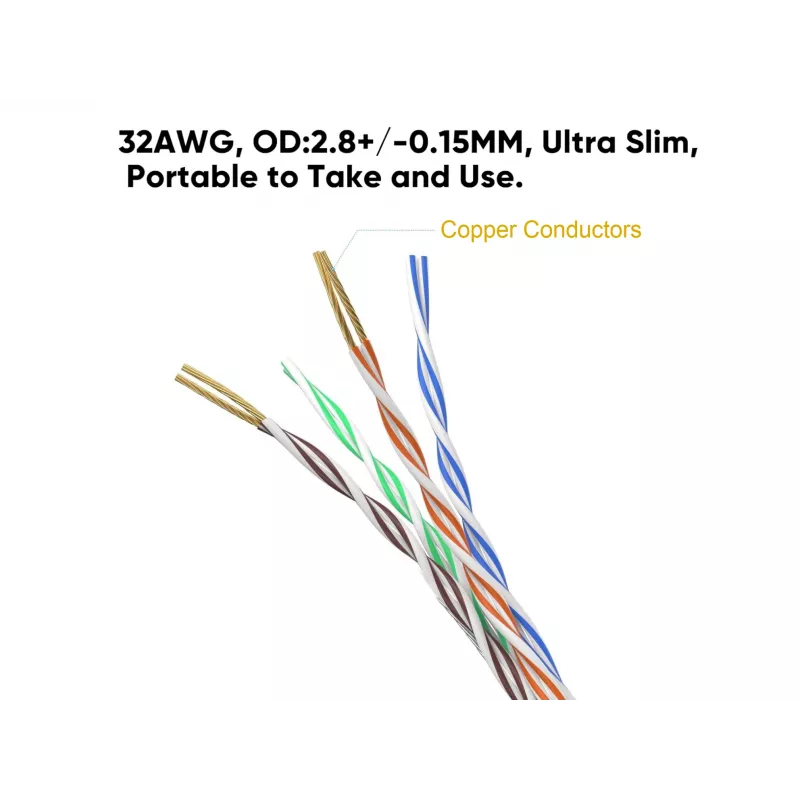

• Conductor: stranded bare copper, 32 AWG
• Length: 0.15 m
• Connectors: RJ-45 straight male to RJ-45 straight male
• Performance: up to 10 Gbit/s, bandwidth up to 500 MHz
• Standards: ISO/IEC 11801, EN 50173
• Jacket: Low Smoke Zero Halogen (LSZH/LSOH)
• Colour: Grey

How to use

Connect one RJ-45 plug to the network device or switch port and the other plug to the corresponding patch panel, port or device. Ensure connectors are fully seated and the molded boots are not under tension. Use the 0.15 m cable for short patching runs inside racks or between adjacent devices where a compact cable diameter helps maintain airflow and organisation.

Recommendations

For best results, use this Cat.6A U/UTP slim patch cable for short-distance connections inside cabinets or between nearby equipment. Avoid routing near strong EMI sources when possible, and do not bend the cable sharply at the connector boots to preserve performance and mechanical integrity.
