Equip 332715 Διαχωριστής βίντεο HDMI 2x HDMI

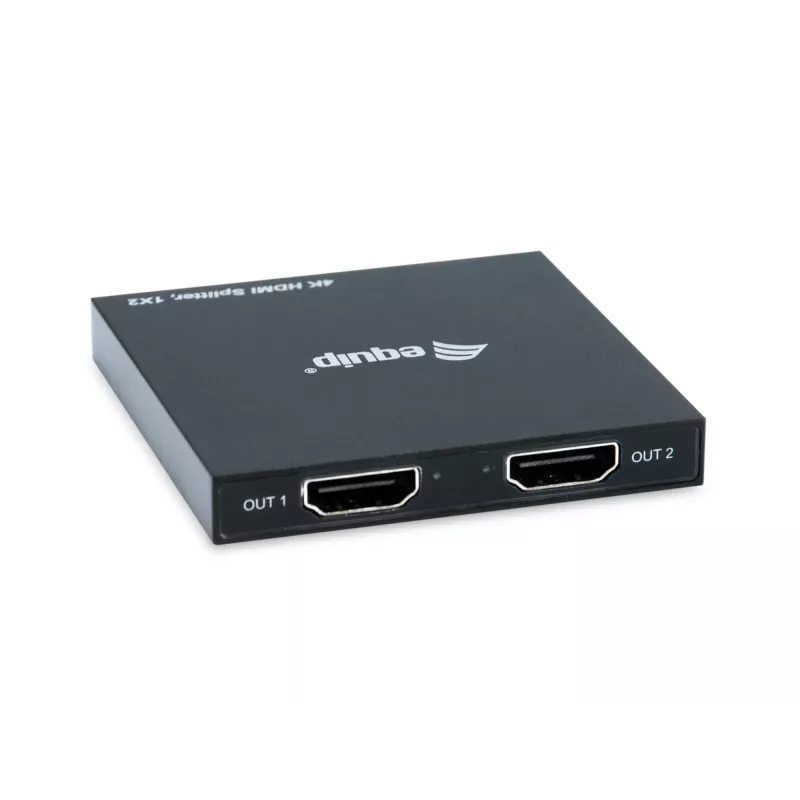

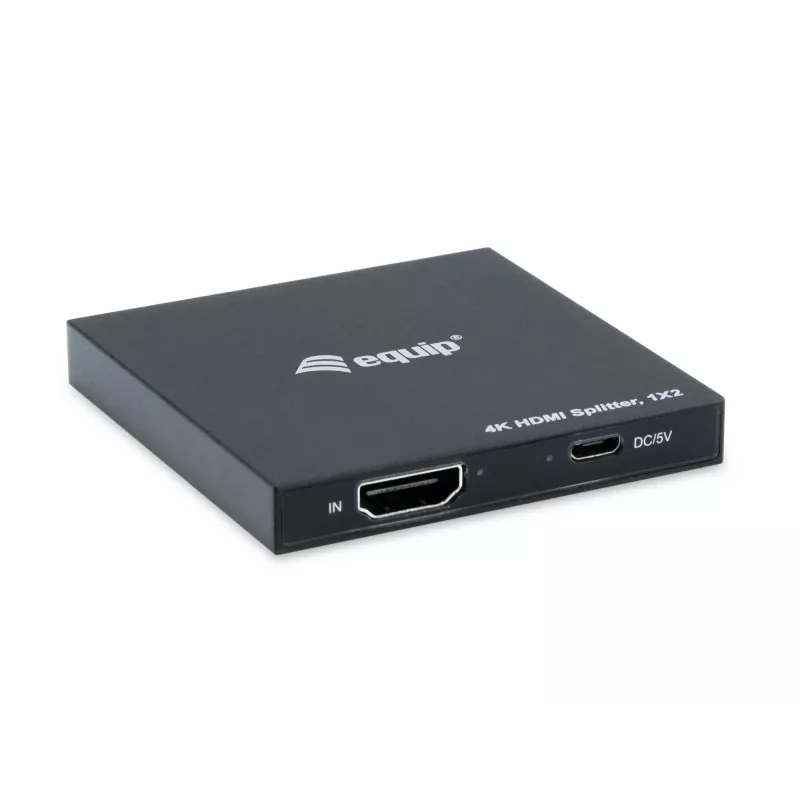

The Equip 332715 HDMI Video Splitter distributes a single HDMI video signal to two displays, supporting resolutions up to 3840 x 2160. Housed in a compact aluminium case (65 mm x 9 mm x 65 mm) with a black finish, it is supplied with a USB cable for power and easy connectivity. The splitter is designed for reliable, synchronized high-definition output to two screens simultaneously.

Advantages

The Equip 332715 offers dual-output HDMI distribution from one source without degrading image quality, supports 4K resolution, and comes in a robust aluminium enclosure for durability. Its compact size and included USB cable make installation simple and space-efficient.

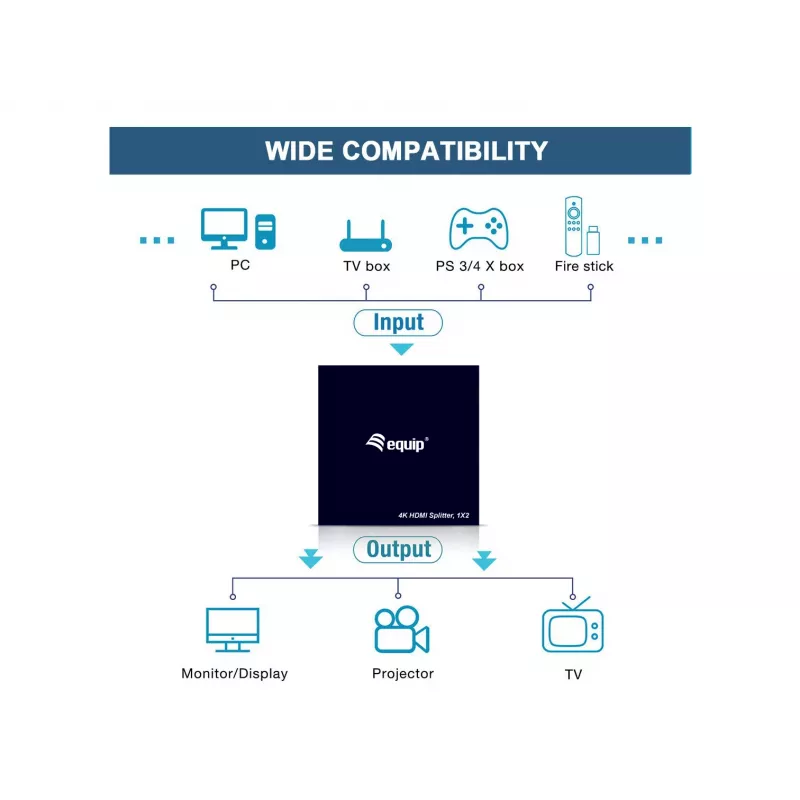

Suitable for

• Presentations in meeting rooms and conference halls
• Home theatre setups where the same signal is needed on two displays
• Retail displays and digital signage across small areas
• Educational campuses and lecture theatres requiring synchronized screens

Key specifications

• Brand: EQUIP
• Model: 332715
• Video port type: HDMI
• Number of HDMI outputs: 2
• Maximum resolution: 3840 x 2160
• Material: Aluminium housing
• Dimensions: 65 mm x 9 mm x 65 mm
• Weight: 0.06 kg
• Colour: Black

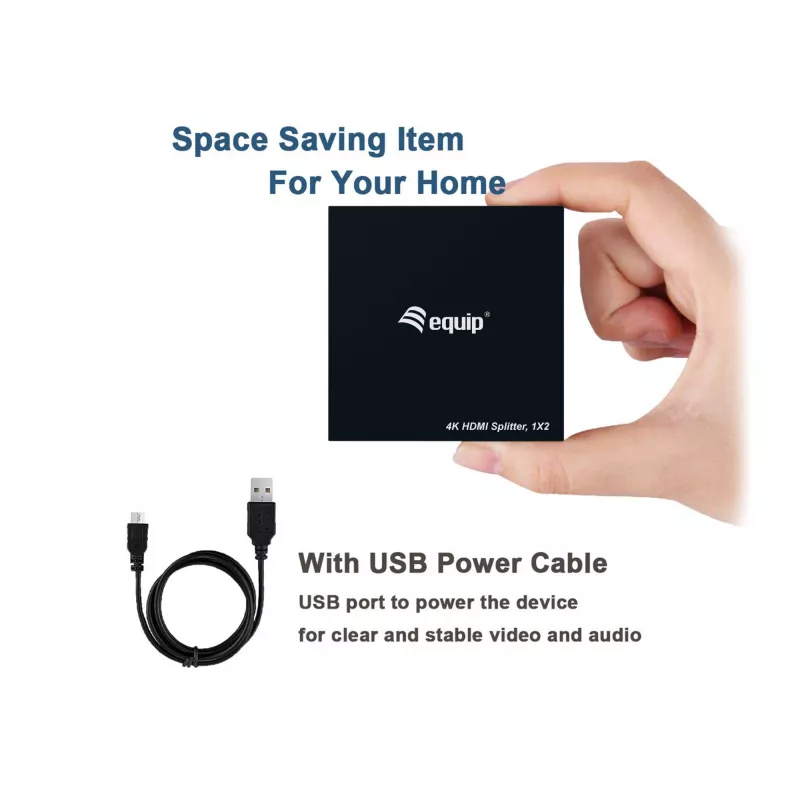

• Included accessories: USB cable

How to use

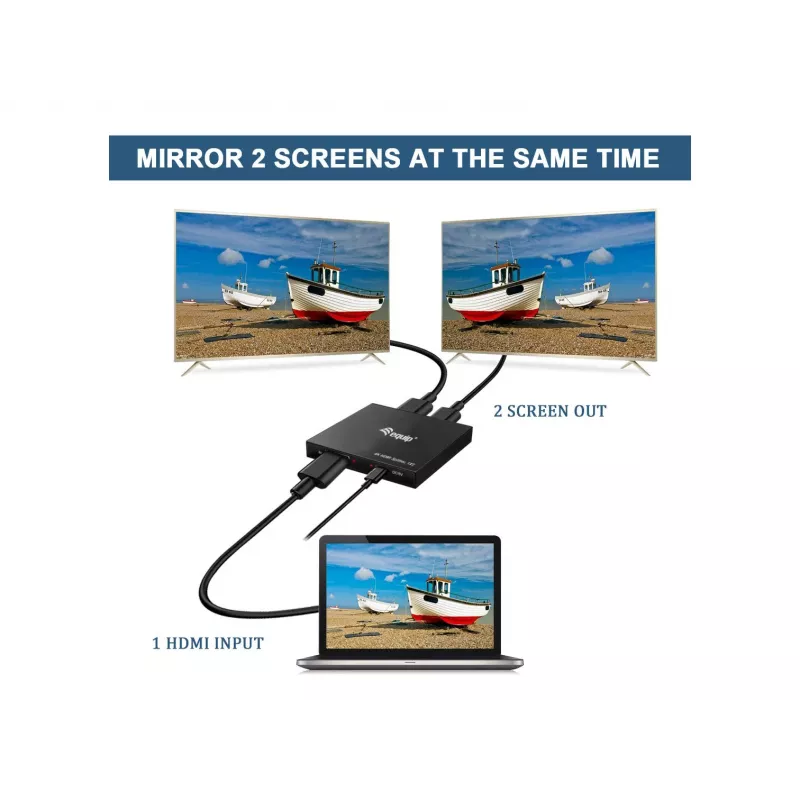

Connect the HDMI source (PC, media player or other HDMI device) to the splitter's input. Attach two HDMI cables from the splitter's outputs to the displays. Power the splitter using the supplied USB cable connected to a USB power source. Once connected, the same video signal will be output to both displays; configure display settings on the source device if necessary to match resolution and refresh rate.

Recommendations

For best results use high-quality HDMI cables and ensure both displays support the chosen resolution. If using 4K at higher refresh rates, verify that the source device and cables meet the required specifications. Place the splitter in a well-ventilated area and avoid excessive bending of cables.
