Επίτοιχη Βάση Lanberg WF01-6415-10S

Supporting up to 60 kg of equipment in a compact wall-mounted form, the Lanberg WF01-6415-10S delivers 15U of 19-inch rack space without consuming valuable floor area. Its 600x450mm footprint and 774mm height make it ideal for network switches, patch panels, CCTV recorders, and other low-voltage hardware in server rooms, offices, and utility closets.

Overview

Constructed from SPCC cold rolled steel with a grey RAL 7044 finish, this cabinet is built to last. The front door features tempered glass and a lock, opening up to 180° for easy access. Removable side panels with locks allow for quick maintenance and cable routing. Top and bottom cable entry points with blank panels keep installations tidy. The flat-pack design simplifies transport and self-assembly, with all necessary mounting hardware included.

What stands out

• 15U capacity in a space-saving wall-mount design
• Robust steel construction with 60 kg load rating
• Lockable tempered glass front door and removable side panels
• IP20 protection for indoor environments
• Adjustable 19-inch mounting rails with M6 cage nuts

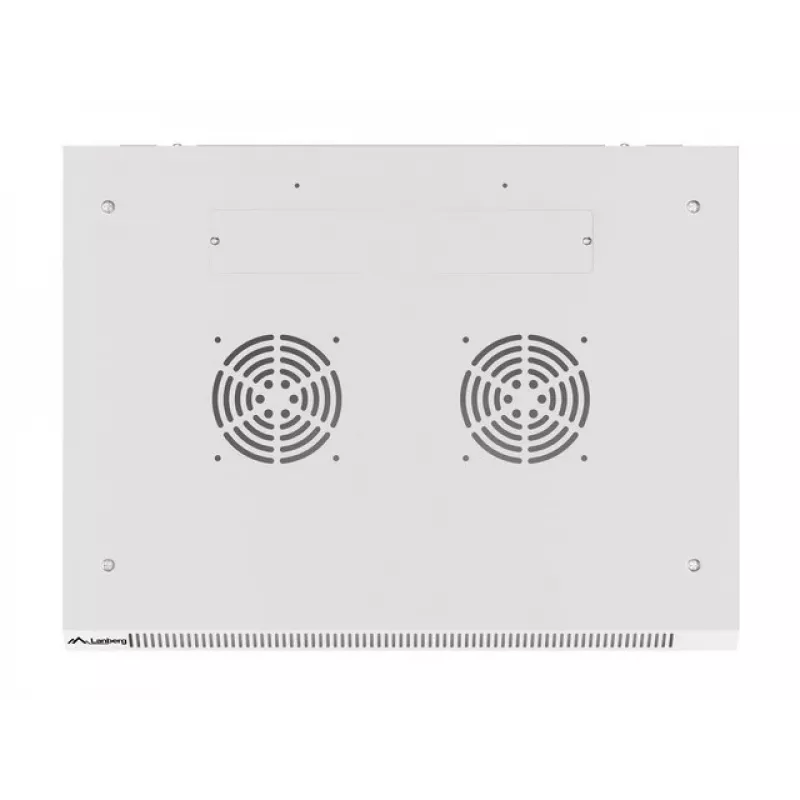

• Ventilation-ready top panel for optional fan installation
• Complies with ANSI/EIA RS-310-D and other standards

Technical details

• Rack size: 19" / 15U
• External dimensions: 600 mm (W) x 450 mm (D) x 774 mm (H)
• Maximum load: 60 kg
• Material: SPCC cold rolled steel, 1.5 mm mounting profiles, 1.2 mm other parts
• Colour: Grey (RAL 7044)
• Protection rating: IP20
• Front door: Tempered glass with lock, 180° opening
• Side panels: Removable with locks
• Cable entries: Top and bottom with blank panels
• Mounting rails: Adjustable 19-inch, with M6 cage nuts
• Ventilation: Passive, fan-ready top
• Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7
• Assembly: Flat-pack, self-assembly
• Weight: 24 kg

Our verdict

The Lanberg WF01-6415-10S is a reliable and secure wall-mount rack for small to medium installations. Its sturdy build, locking access, and included accessories make it a practical choice for protecting and organizing network equipment in space-constrained areas.
