Lanberg | Μονάδα διανομής ρεύματος (PDU) 19 inch 1U 10A 2M 7x πρίζες Schuko | PDU-07F-0200-IEC-BK

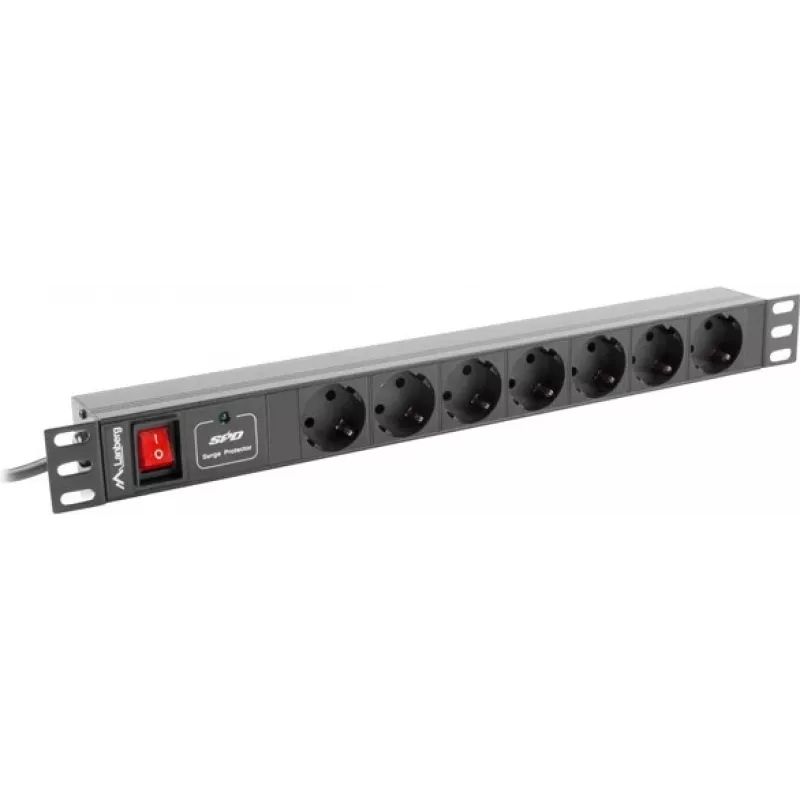

The Lanberg Power Distribution Unit PDU-07F-0200-IEC-BK is a 1U horizontal PDU designed for mounting on the front of 19" server cabinets. It supplies uninterrupted power to connected devices via seven Type F AC outlets and a C14 power inlet, and includes LED indicators and a 2 m cable. With a nominal input voltage of 220–250 V, a maximum current of 10 A and an operating frequency of 50–60 Hz, the unit is sized for professional rack installations where reliable power distribution is required.

Advantages

The PDU offers a compact 1U form factor for front-mount installation in standard 19" racks and provides seven Type F outlets to power multiple devices. Built-in overload protection, current circuit diaphragms and an automatic fuse increase operator and equipment safety while making maintenance or replacement straightforward. The device uses a larger cable diameter to ensure stable operation under high load conditions.

Suitable for

• Front mounting in 19" server cabinets
• Powering multiple rack devices such as servers, switches and storage units
• Professional server rooms and small data centers

Key specifications

• Model: Lanberg PDU-07F-0200-IEC-BK
• Form factor: 1U, horizontal front-mount
• AC outlets: 7 × Type F
• Power inlet: C14
• Input voltage: 220–250 V
• Maximum current: 10 A
• Frequency: 50–60 Hz
• Cable length: 2 m
• Dimensions (W×D×H): 431 × 45 × 44.5 mm
• Weight: 0.77 kg
• Colour: Black

How to use

Mount the PDU horizontally on the front rails of a 19" server cabinet using appropriate rack hardware. Connect the unit to the mains via the C14 inlet and distribute power to rack equipment using the seven Type F outlets. Monitor LED indicators for activity and ensure the total connected load does not exceed the 10 A rating. If the automatic fuse operates, replace it following standard safety procedures with power disconnected.

Recommendations

Install in a properly ventilated rack, verify the total current draw of connected devices remains below 10 A, and use qualified personnel for mounting and fuse replacement to maintain safety and reliable operation.
