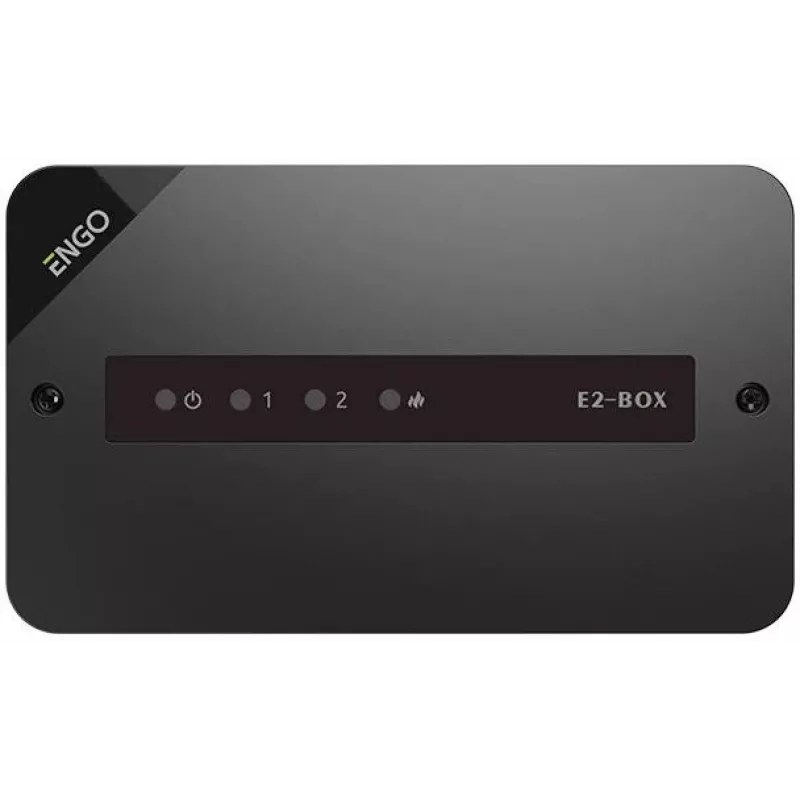

ENGO CONTROLS ECB2-230 ενσωματωτής θερμικών κυκλωμάτων με 230V

The ENGO CONTROLS ECB2-230 is a professional heat circuits integrator designed for managing two heating zones with main pump support. Operating at 230V AC, this DIN rail mounted device provides precise temperature control via an NTC sensor input and relay outputs. Ideal for heating and cooling systems, it features a 3-digit LED display, adjustable hysteresis, and alarm functions for high/low temperature and sensor failure.

Advantages

Reliable and easy to install on a DIN rail (3 modules). The device offers two relay outputs with 16A capacity per channel, ensuring robust control of heating circuits. The NTC sensor compatibility and wide temperature range (-50°C to +125°C) make it versatile for various applications. The hysteresis adjustment (0.1°C to 20°C) allows fine-tuning of system response.

Suitable for

• Heating systems with two zones
• Cooling control applications
• Industrial temperature monitoring
• Integration with main pump systems

Key specifications

• Supply Voltage: 230V AC
• Output Type: Relay, 2 channels
• Max Relay Current: 16A per channel
• Sensor Type: NTC (KTY81-210 compatible)
• Temperature Control Range: -50°C to +125°C
• Display: 3-digit LED
• Mounting: DIN Rail (3 modules)
• Protection Class: IP20
• Power Consumption: Max 3W
• Housing Material: ABS Plastic

Recommendations

For optimal performance, use with ENGO CONTROLS NTC sensors. Ensure proper ventilation and avoid exposure to moisture. The device is designed for indoor use only.
