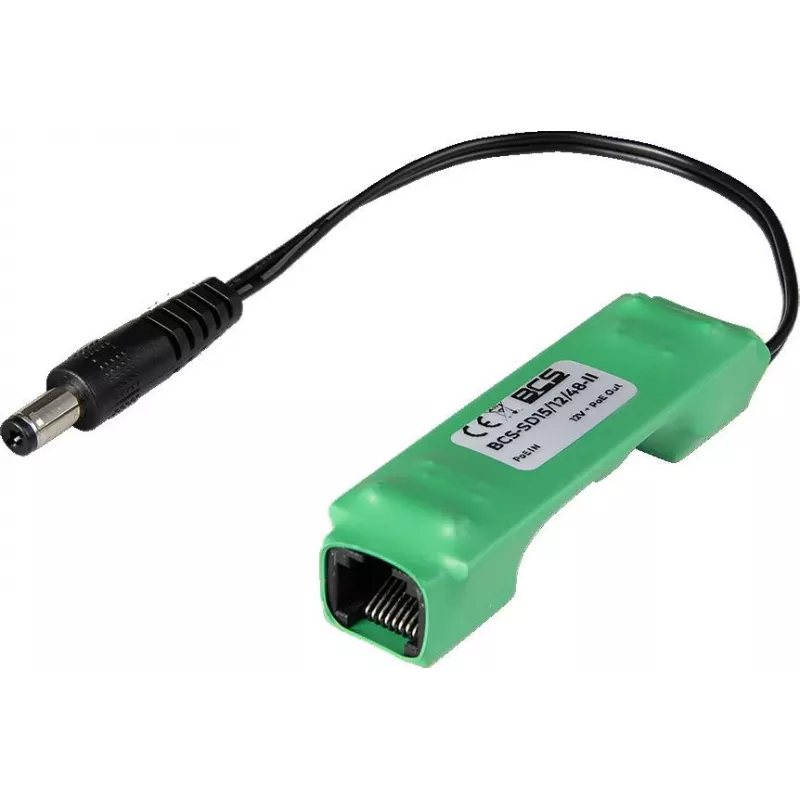

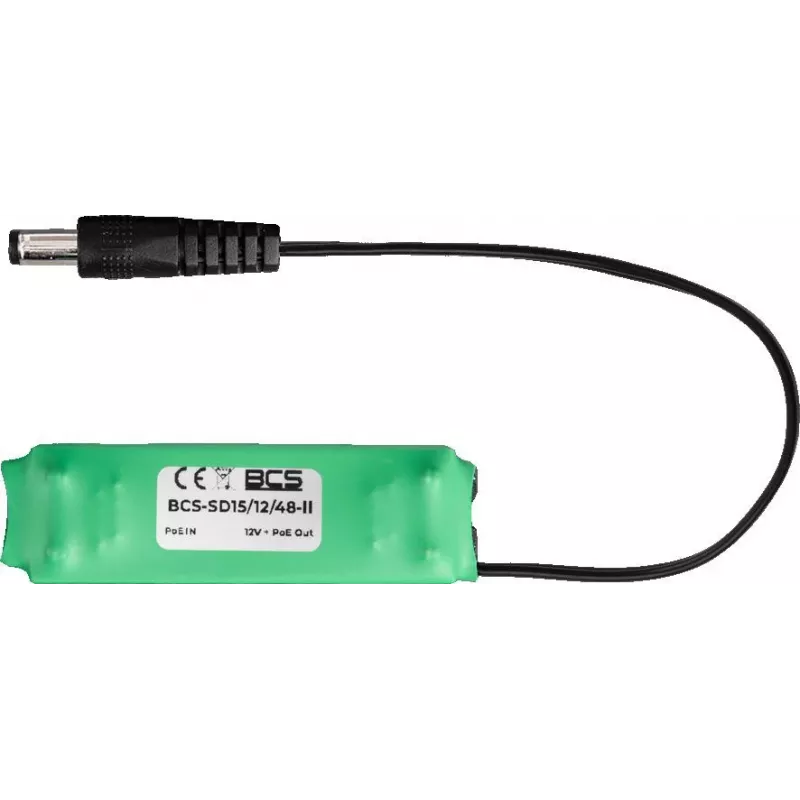

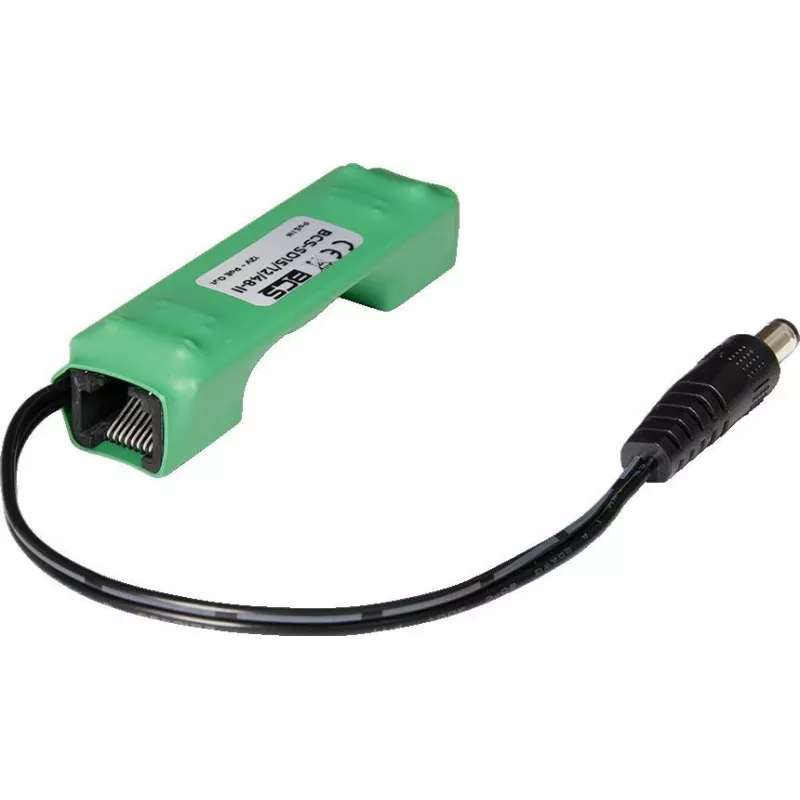

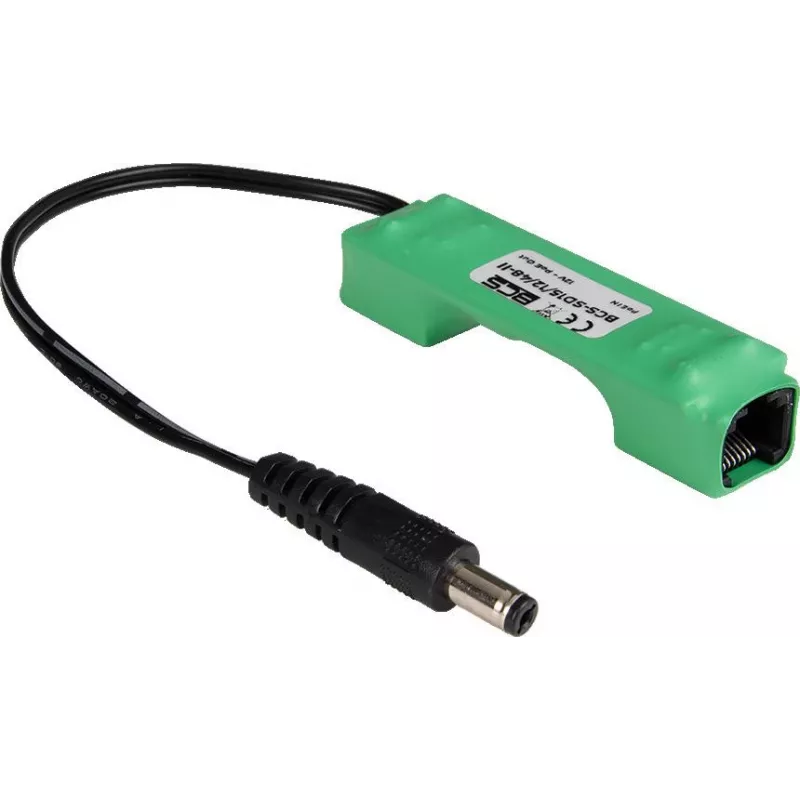

BCS Μετατροπέας DC/DC BCS-SD15/12/48-II 15W 12V σε 48V

The BCS BCS-SD15/12/48-II is a high-performance DC/DC converter designed to convert a nominal 12V DC input to a stable 48V DC output. With an output power of 15W and an output current of 0.31A, this converter is ideal for applications requiring isolated power conversion in industrial, telecommunications, and embedded systems. Its compact PCB mount design and metal case ensure reliable operation in demanding environments.

Advantages

This converter offers high efficiency of 85%, reducing power loss and heat generation. It features comprehensive protection including overload, short circuit, overvoltage, and input reverse polarity protection, ensuring safe operation. With an isolation voltage of 1500V DC and a wide operating temperature range from -25°C to +70°C, it is suitable for harsh conditions. The natural convection cooling eliminates the need for fans, enhancing reliability.

Suitable for

• Industrial control systems
• Telecommunications equipment
• Embedded electronics
• Battery-powered devices requiring 48V rail
• Automotive and marine applications

Key specifications

• Input Voltage: 10-16V DC (nominal 12V)
• Output Voltage: 48V DC
• Output Current: 0.31A
• Output Power: 15W
• Efficiency: 85%
• Isolation Voltage: 1500V DC
• Operating Temperature: -25°C to +70°C
• Mounting: PCB Mount
• Housing: Metal Case
• MTBF: >200,000 hours
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure input voltage is within the specified range and provide adequate ventilation for natural convection cooling. This converter is not suitable for outdoor use without additional environmental protection.
