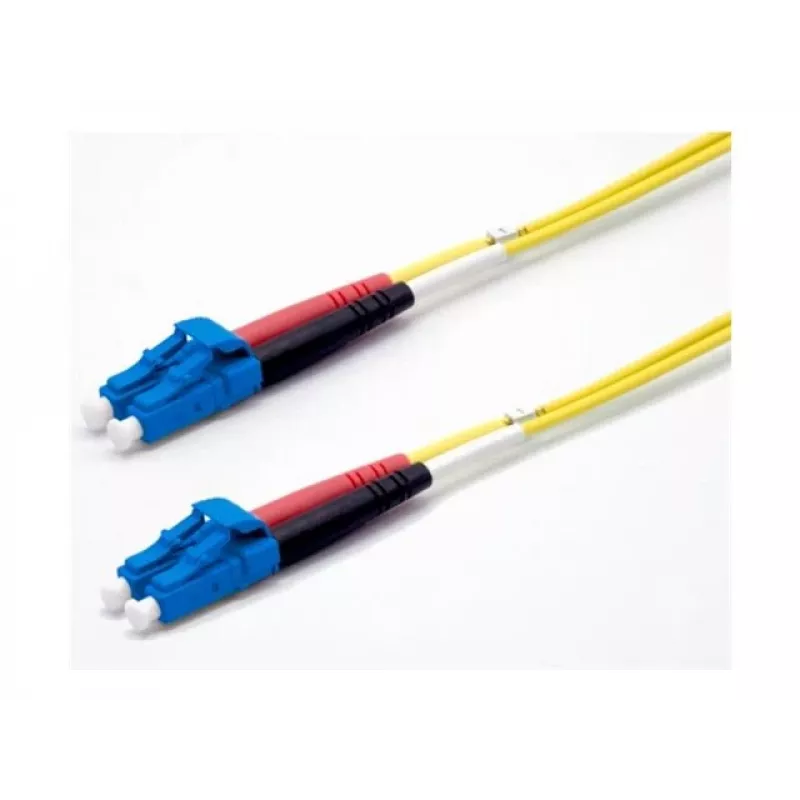

Ekivalan OS2 Duplex LWL Patch Καλώδιο LC/LC 5m Κίτρινο COZ008LCLC2SJ0050A

In data centres and telecom rooms, a weak optical link causes packet loss, retransmissions, and unexplained slowdowns. This Ekivalan OS2 patch cable delivers a stable single-mode connection between LC ports, so your high-speed links stay error-free.

Who is it for

Network engineers and technicians who need a reliable OS2 duplex jumper for patching between fibre panels, switches, and transceivers. It is built for indoor installations where low smoke zero halogen (LSZH) jacketing is required.

Main features

• OS2 single-mode fibre, 9/125 µm core/cladding
• Duplex construction with LC connectors on both ends
• 5.0 m length with yellow LSZH jacket
• Insertion loss ≤ 0.3 dB, return loss ≥ 50 dB
• Ceramic ferrules for precise alignment

Specifications

• Cable length: 5.0 m
• Fibre type: OS2 single-mode
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Connector 1: LC
• Connector 2: LC
• Jacket material: LSZH
• Cable diameter: 2.0 mm
• Insertion loss (max): 0.3 dB
• Return loss (min): 50 dB
• Operating temperature: -20°C to 70°C
• Minimum bend radius (installation): 30 mm

Tips

Keep the bend radius above 30 mm during installation to avoid microbending losses. Use dust caps on connectors when not in use.
