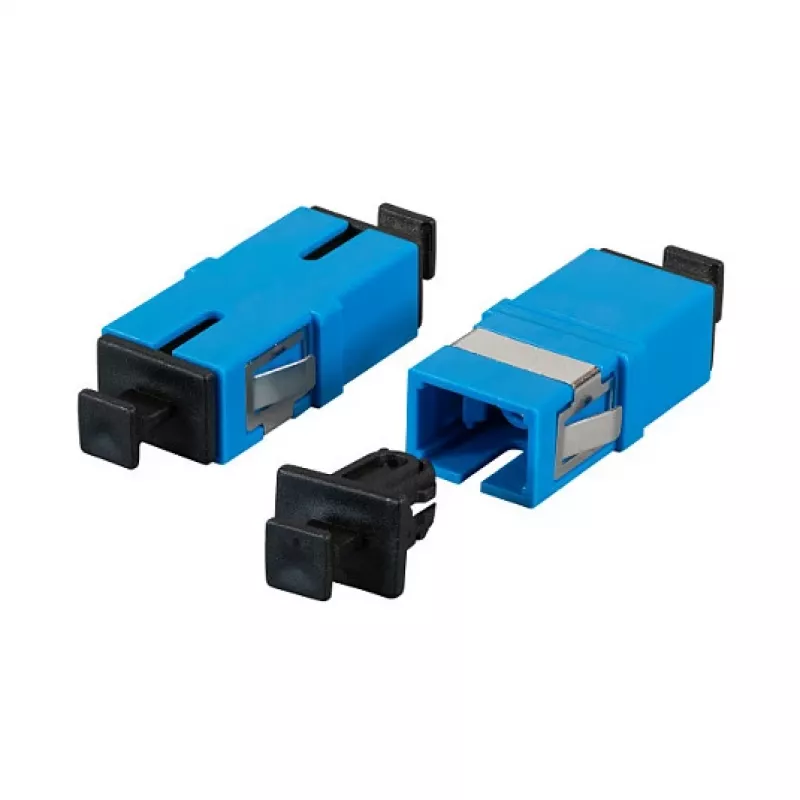

EFB Elektronik SC Simplex Single Mode Fiber Optic Coupler, Flangeless, Μπλε, Ceramic Sleeve (53511.1)

The EFB Elektronik SC Simplex Single Mode Fiber Optic Coupler (53511.1) is a high-quality, one-piece adapter designed for reliable interconnections of SC single mode fiber optic cables. Featuring a flangeless design and a ceramic alignment sleeve, this coupler ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This coupler offers exceptional durability with over 500 mating cycles and stable performance across a wide temperature range. The ceramic sleeve provides precise fiber alignment, minimizing signal loss and ensuring consistent data transmission. Its compact, flangeless construction allows for easy integration into patch panels or direct cable connections.

Suitable for

• Interconnecting SC single mode fiber optic cables in data centers
• Telecommunications networks
• FTTx installations
• Test and measurement equipment

Key specifications

• Connector Type: SC
• Fiber Type: Single Mode (OS2)
• Configuration: Simplex
• Adapter Type: Coupler
• Mounting Style: Flangeless
• Alignment Sleeve Material: Ceramic
• Color: Blue
• Construction: One-piece
• Insertion Loss: < 0.2 dB (typical)
• Return Loss: > 50 dB (typical)
• Durability: > 500 mating cycles
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Housing Material: Polymer
• Standard Compliance: IEC 61754-4
• Flammability Rating: UL94 V-0
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with high-quality SC single mode patch cables and ensure clean connector ends before mating. This coupler is suitable for both indoor and protected outdoor applications.
