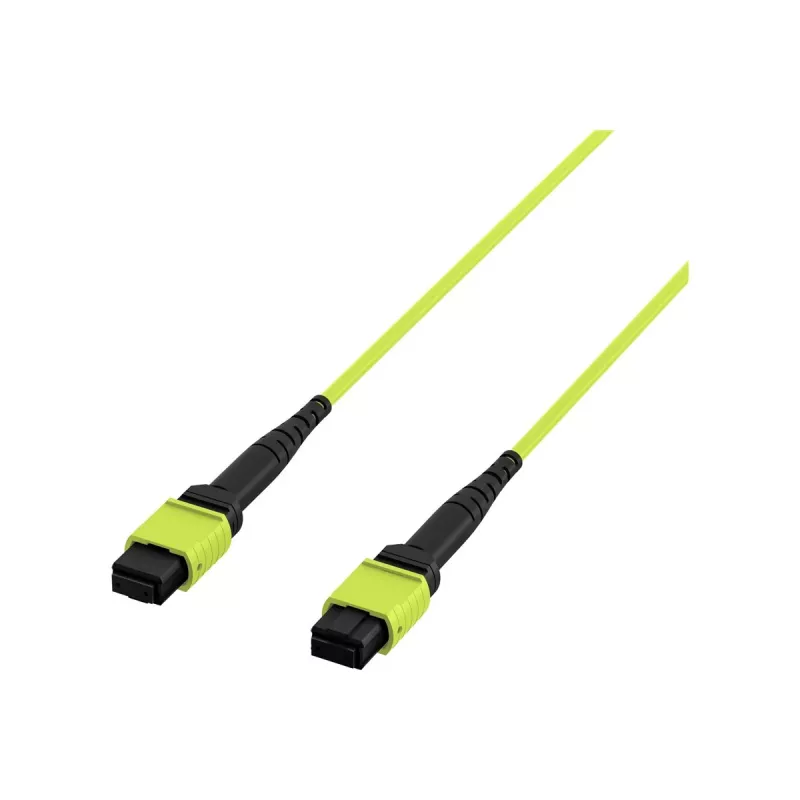

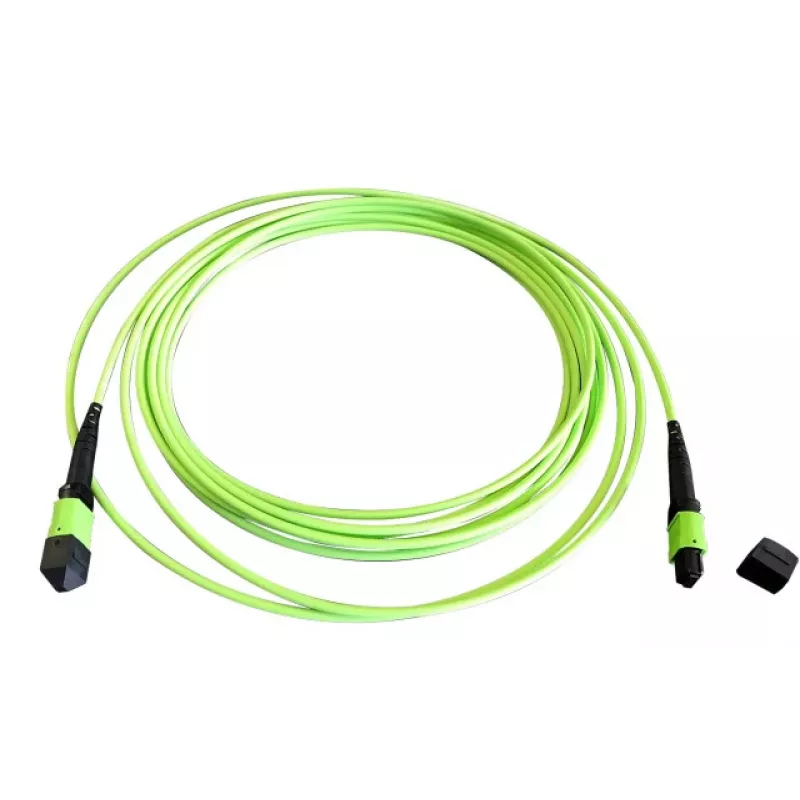

EFB Elektronik MTPF12MTPFOM5-2 2m OM5 MTP to MTP καλώδιο οπτικής ίνας

The EFB Elektronik MTPF12MTPFOM5-2 is a high-performance fiber optic patch cable designed for demanding data center and enterprise network environments. Featuring 12-fiber OM5 multimode construction with MTP male connectors on both ends, this 2-meter cable supports 40/100/400 Gigabit Ethernet and is ideal for high-density interconnects.

Advantages

OM5 fiber enables broadband multimode transmission over longer distances, supporting multiple wavelengths for future-proof network upgrades. The MTP connector provides a compact, high-density interface that reduces cable clutter and simplifies patching. LSZH jacket ensures safety in confined spaces, and the lime green color allows easy identification.

Suitable for

• Data center backbone and leaf-spine architectures
• High-speed 40/100/400 Gigabit Ethernet links
• Storage area networks (SAN) and high-performance computing
• Telecommunications and enterprise network patching

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM5 (50/125 µm)
• Number of Fibers: 12
• Connector A: MTP (Male)
• Connector B: MTP (Male)
• Length: 2 meters
• Polarity: Type B (Crossed)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Lime Green
• Insertion Loss (Max): 0.35 dB per connector
• Return Loss (Min): 20 dB
• Cable Diameter: 3.0 mm
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +70°C
• Standards: IEC 61754-7, TIA/EIA-604-5, RoHS, REACH
• Connector Ferrule Material: Zirconia Ceramic
• Connector Polishing Type: PC/UPC

Recommendations

For optimal performance, ensure proper handling and cleaning of MTP connectors before installation. This cable is best suited for structured cabling systems requiring high-density, high-speed connectivity.
