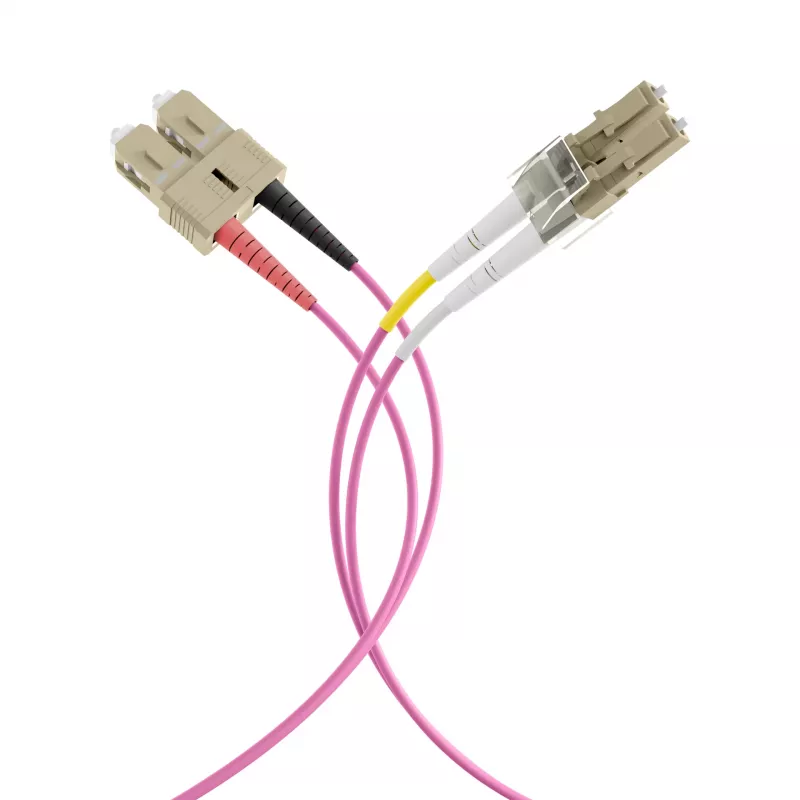

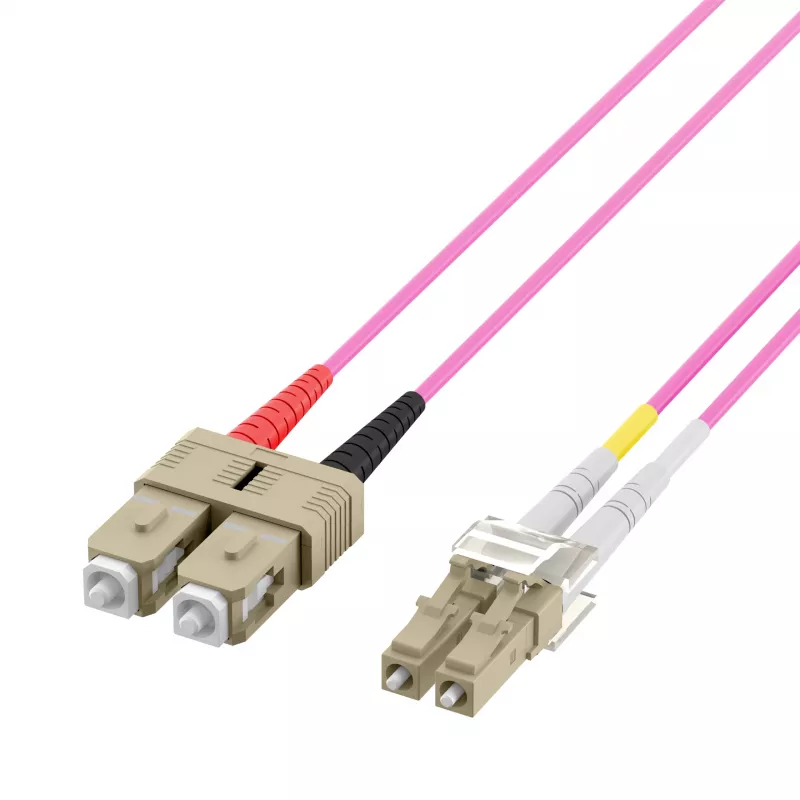

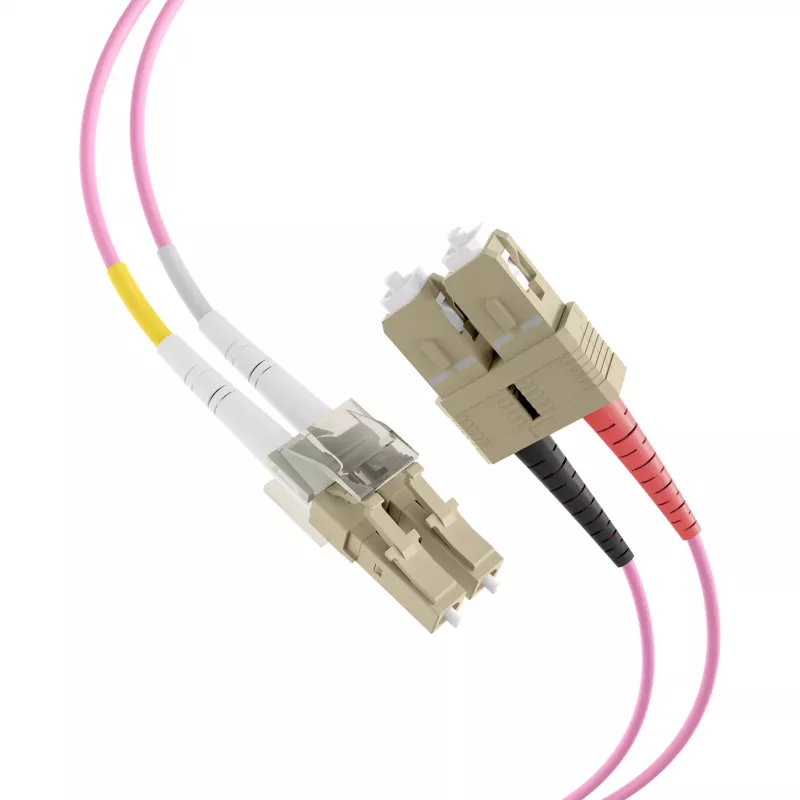

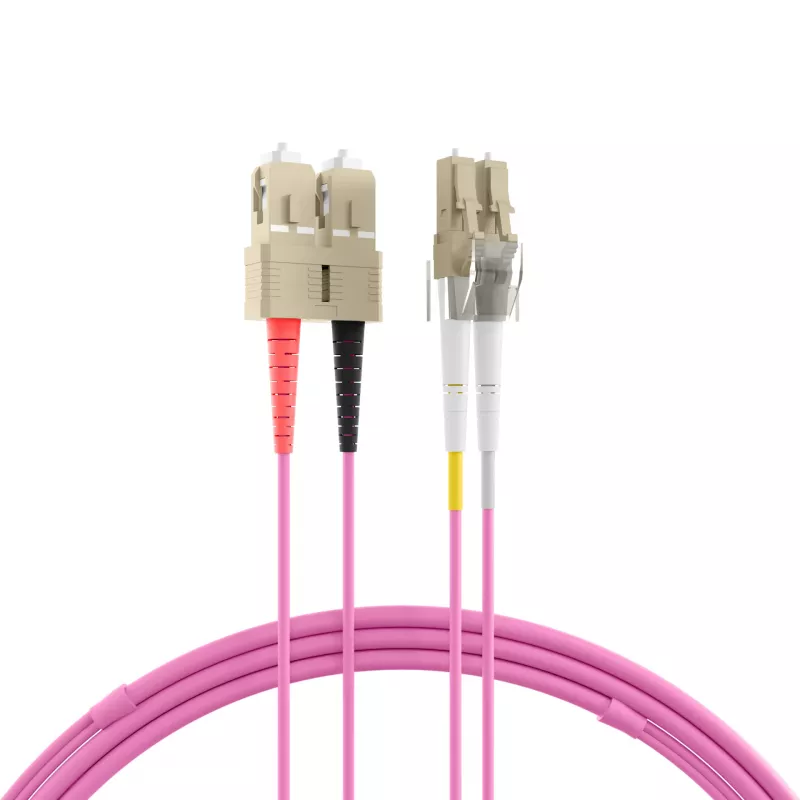

EFB Elektronik IPL-DF-LCUSCU-4-0300 Καλώδιο Patch Duplex OM4 LC/SC 3 m

The EFB Elektronik IPL-DF-LCUSCU-4-0300 is a high-performance duplex multimode OM4 patch cable designed for demanding data center, LAN, SAN, and FTTx applications. With LC/UPC to SC/UPC connectors and a length of 3 meters, this cable ensures reliable, high-speed data transmission with low insertion loss and high return loss.

Advantages

Optimized for 40/100 GbE networks, the OM4 fiber provides superior bandwidth over longer distances compared to OM3. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in confined spaces, while the heather violet color allows easy identification. Zirconia ceramic ferrules guarantee precise alignment and durability.

Suitable for

• Data centers requiring high-density cabling
• Local Area Networks (LAN) with high bandwidth demands
• Storage Area Networks (SAN) for reliable connectivity
• FTTx deployments

Key specifications

• Cable type: Duplex Patch Cable
• Fiber type: Multimode OM4 (50/125 µm)
• Connectors: LC/UPC to SC/UPC
• Length: 3 m
• Jacket: LSZH, Heather Violet, 3.0 mm diameter
• Insertion loss: < 0.3 dB typical
• Return loss: > 30 dB typical
• Operating wavelengths: 850 nm / 1300 nm
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Polarity: A-B (Crossed)
• Standards: IEC 60793-2-10 Type A1a.3, TIA/EIA-492AAAD

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for backbone cabling and high-speed interconnects. Pair with EFB patch panels and adapters for a complete solution.
