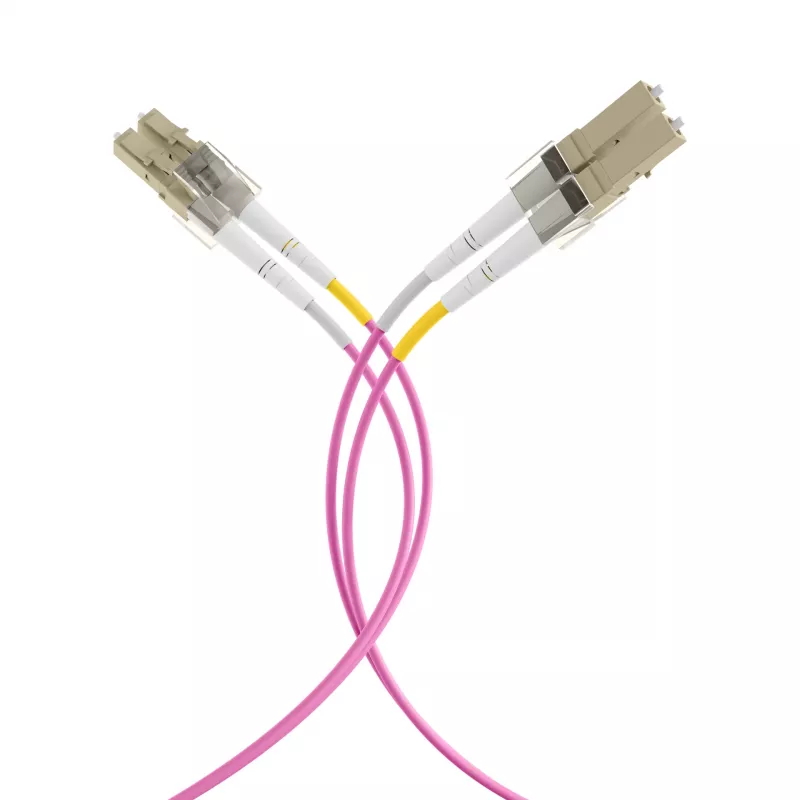

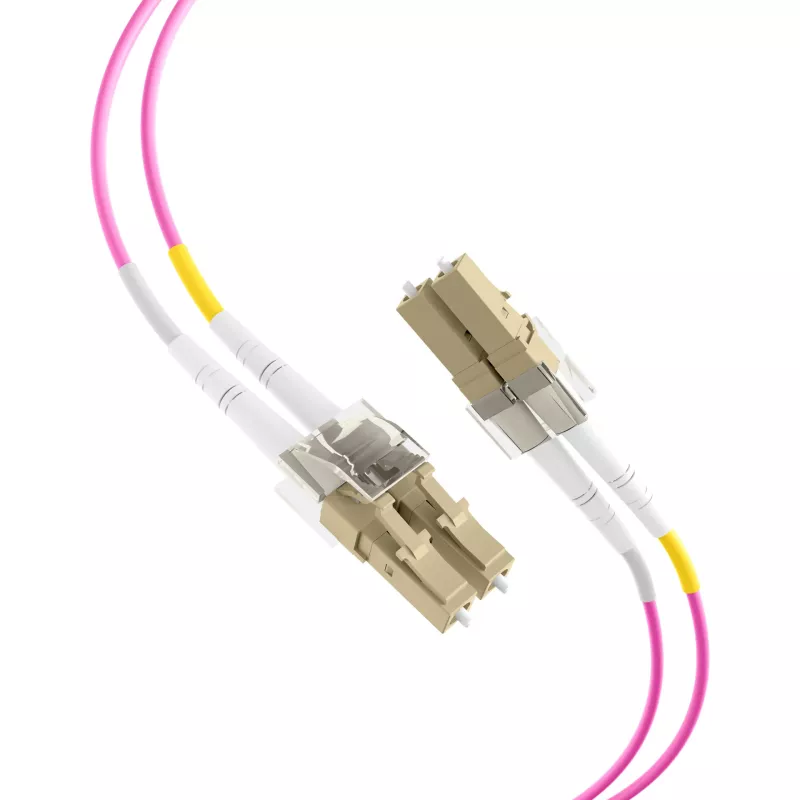

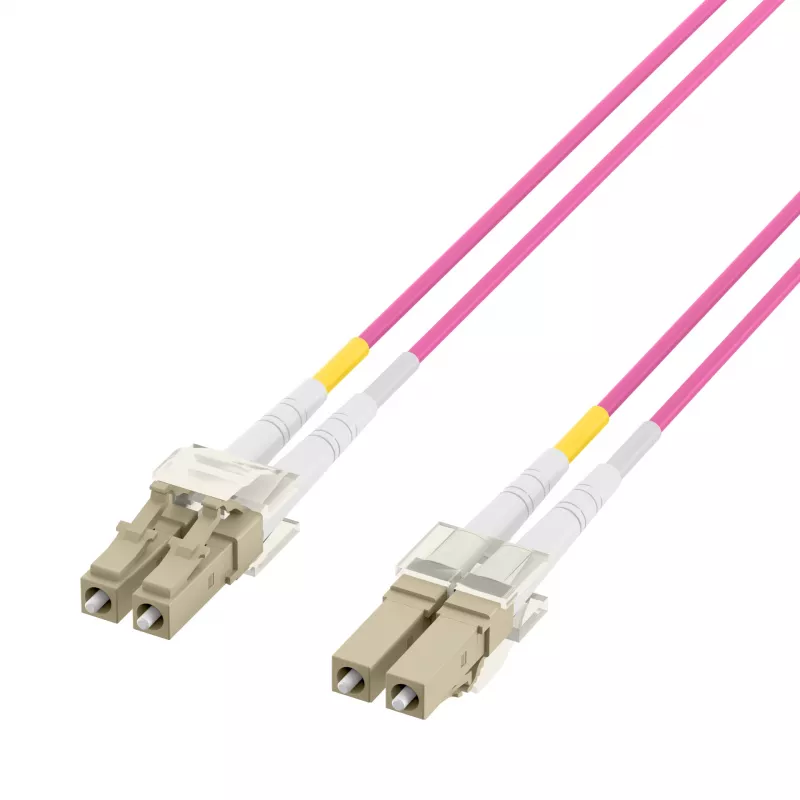

EFB Elektronik IPL-DF-LCULCU-4-0050 Καλώδιο Patch Οπτικών Ινών, 0,5 m, OM4, LC Duplex, Aqua

The EFB Elektronik IPL-DF-LCULCU-4-0050 is a high-performance fiber optic patch cable designed for high-speed data networks. With OM4 multimode fiber and LC duplex connectors, it supports 10GbE, 40GbE, and 100GbE applications. The cable features a 50/125 µm core/cladding, LSZH jacket, and aqua color for easy identification.

Advantages

Optimized for high-bandwidth applications, this cable ensures low insertion loss (≤0.3 dB) and high return loss (≥30 dB). The LSZH jacket provides safety in confined spaces, and the 2.0 mm diameter offers flexibility for tight installations.

Suitable for

• Data centers
• Enterprise networks
• Telecommunications
• High-speed computing

Key specifications

• Fiber type: Multimode OM4
• Connectors: LC duplex to LC duplex
• Length: 0.5 m
• Core/Cladding: 50/125 µm
• Jacket: LSZH, Aqua
• Insertion loss: ≤0.3 dB
• Return loss: ≥30 dB
• Bandwidth at 850nm: 4700 MHz·km
• Bandwidth at 1300nm: 500 MHz·km
• Attenuation at 850nm: ≤3.0 dB/km
• Attenuation at 1300nm: ≤1.0 dB/km
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, pair with OM4-compatible transceivers and ensure clean connector ends. Suitable for backbone cabling and high-density patching.
