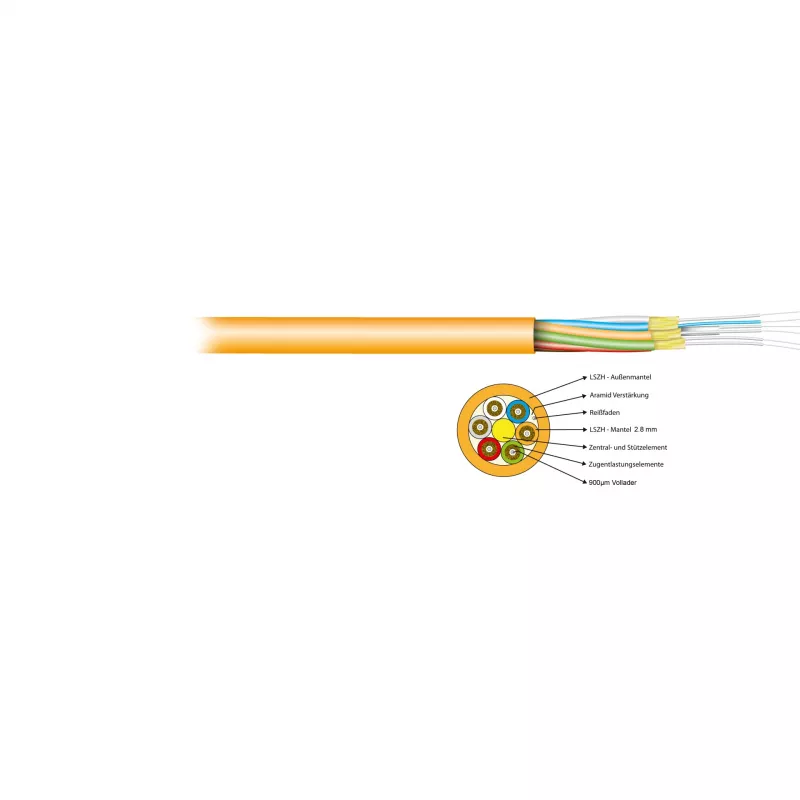

EFB Elektronik I-V(ZN)HH 2E 9/125 OS2 Breakout Cable 2,8 mm κίτρινο

The EFB Elektronik I-V(ZN)HH 2E 9/125 OS2 Breakout Cable is a high-performance single-mode fiber optic cable designed for indoor data center and enterprise network applications. With a 2.8 mm individual fiber unit diameter and LSZH jacket, it ensures reliable signal transmission and safety in sensitive environments.

Advantages

This breakout cable offers low attenuation, halogen-free flame retardancy, and support for high-speed data rates up to 100GbE. Its yellow jacket provides easy identification for OS2 single-mode installations.

Suitable for

• Data center backbone cabling
• Enterprise network infrastructure
• Indoor fiber optic installations requiring LSZH materials

Key specifications

• Cable Type: Breakout Fiber Optic Cable
• Fiber Type: Single-mode (OS2)
• Fiber Count: 2 (Duplex)
• Core/Cladding: 9/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Individual Fiber Unit Diameter: 2.8 mm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Standards: IEC 60794-2, IEC 60332-1-2, IEC 61034-2, IEC 60754-2

Recommendations

For optimal performance, pair with LC or SC connectors and ensure proper cable management to maintain bend radius.
