EFB Elektronik Ερμάριο δικτύου PRO 24U 800x800 mm RAL7035

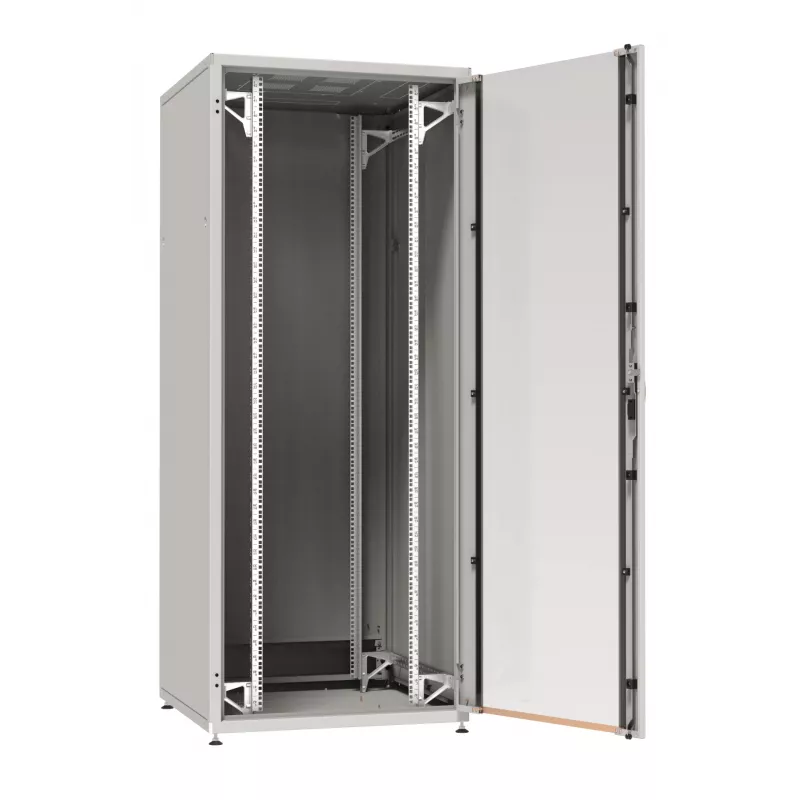

The EFB Elektronik PRO 24U Network Cabinet is a high-quality 19-inch freestanding rack designed for professional IT environments. With 24 rack units of space, it provides ample room for servers, switches, and networking equipment. The cabinet features a robust welded steel frame with a load capacity of up to 800 kg, ensuring reliable support for heavy installations.

Advantages

This network cabinet offers exceptional stability and security. The front safety glass door allows for easy monitoring of equipment, while the rear steel door with swing handle and lock provides secure access. Removable, lockable side panels facilitate convenient cable management and maintenance. The adjustable 19-inch mounting profiles (front and rear) enable flexible installation of various devices.

Suitable for

• Data centers and server rooms requiring a reliable 24U rack solution
• Network infrastructure for enterprise and SMB environments
• Housing servers, patch panels, switches, and UPS systems
• Applications needing passive ventilation and cable entry from top and bottom

Key specifications

• Rack Units: 24U
• Rack Standard: 19 inch
• External Dimensions (WxDxH): 800 x 800 x 1200 mm
• Color: RAL 7035 (Light Grey)
• Material: Steel, powder-coated

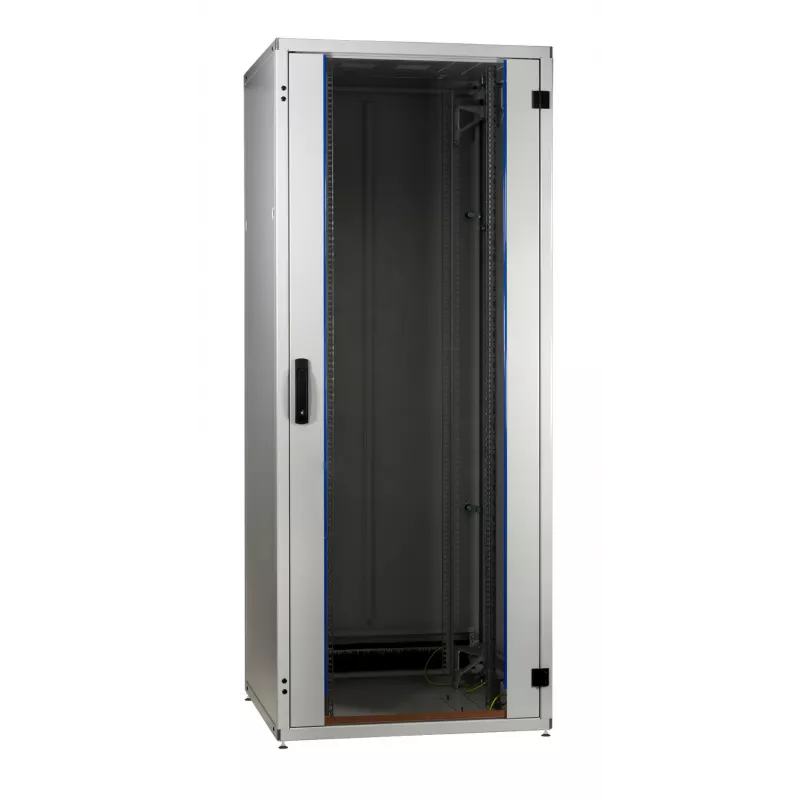

• Front Door: Safety glass door with lock
• Rear Door: Steel door with swing handle and lock
• Side Panels: Removable, lockable
• Load Capacity: 800 kg
• Protection Class: IP20

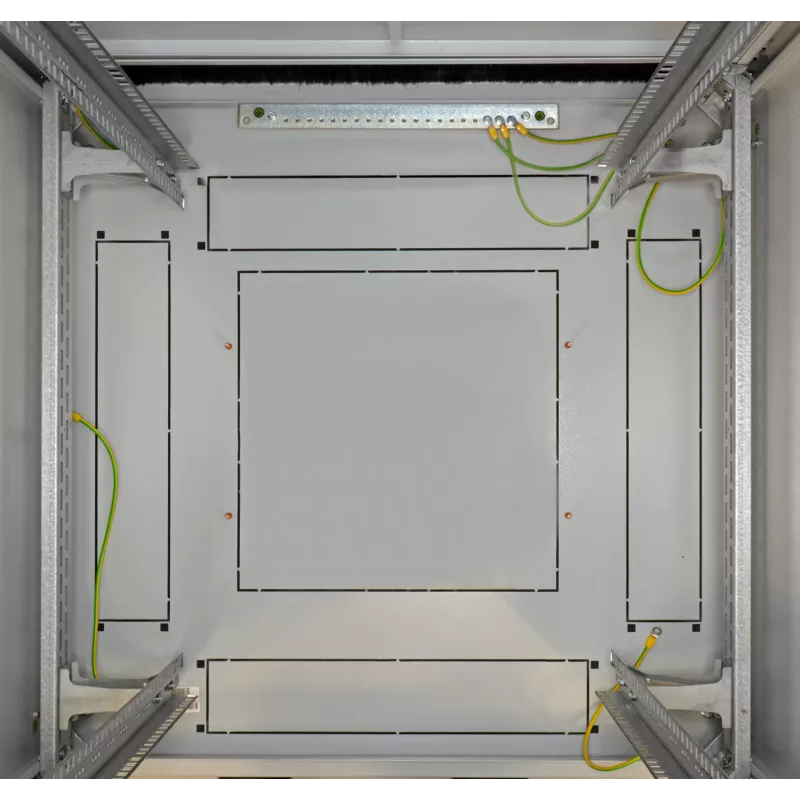

• Cable Entry: Top and bottom with brush strips
• Mounting Rails: Adjustable 19-inch profiles (front and rear)

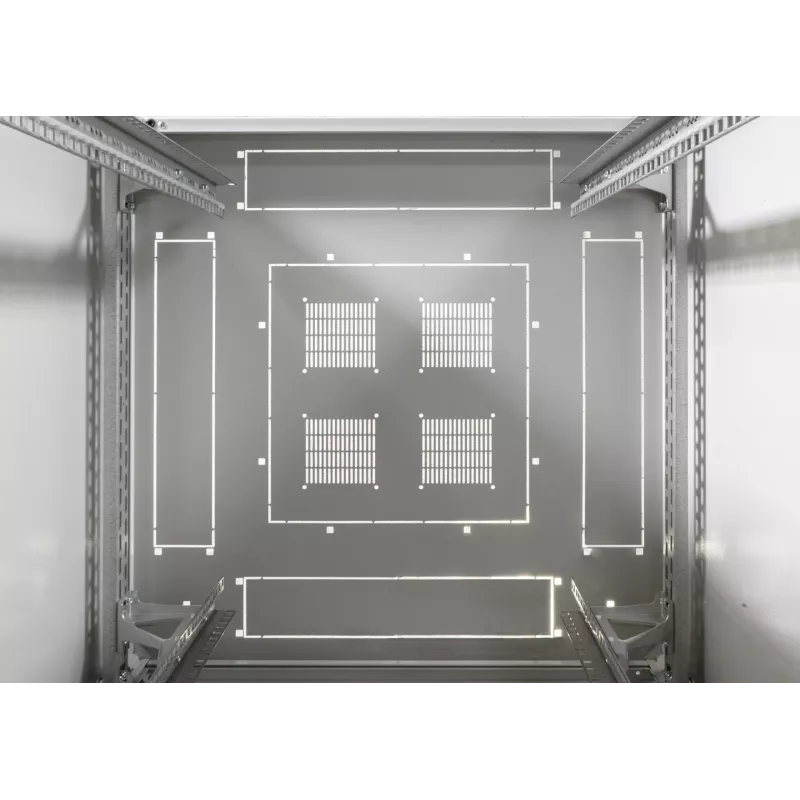

• Ventilation: Passive ventilation (perforated top/bottom, optional fan units)
• Locking System: Swing handle with profile half cylinder (front and rear)
• Feet: Adjustable leveling feet
• Compliance: RoHS, CE

Recommendations

For optimal airflow and cable management, consider using optional fan units and cable management accessories. This cabinet is ideal for standard 19-inch rack-mountable equipment and provides a professional appearance for any IT setup.
