EFB 19 ιντσών 42HE 800x1000 Ντουλάπι δικτύου, IP55, RAL7035

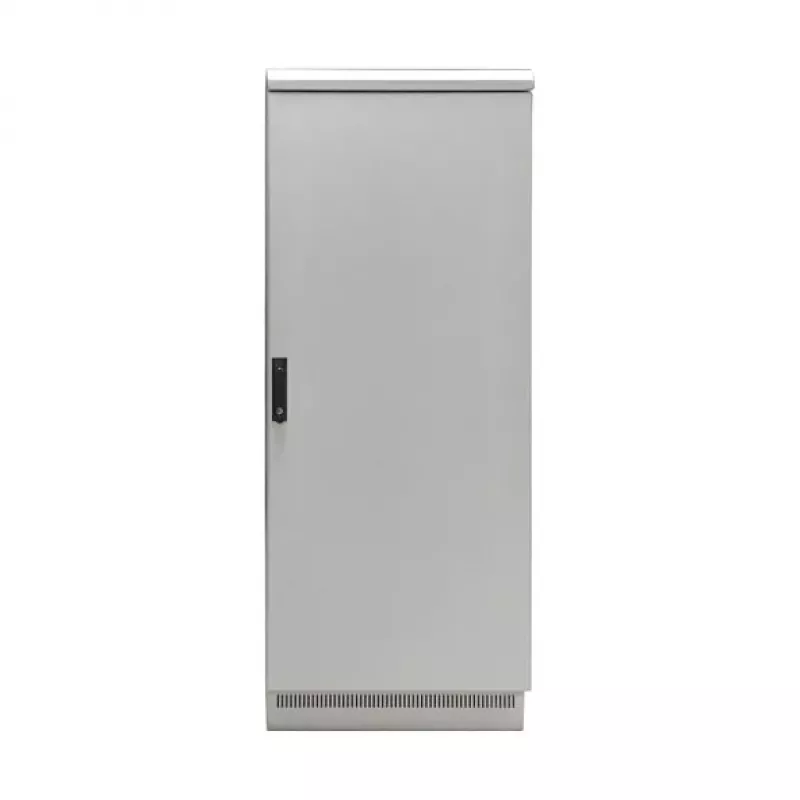

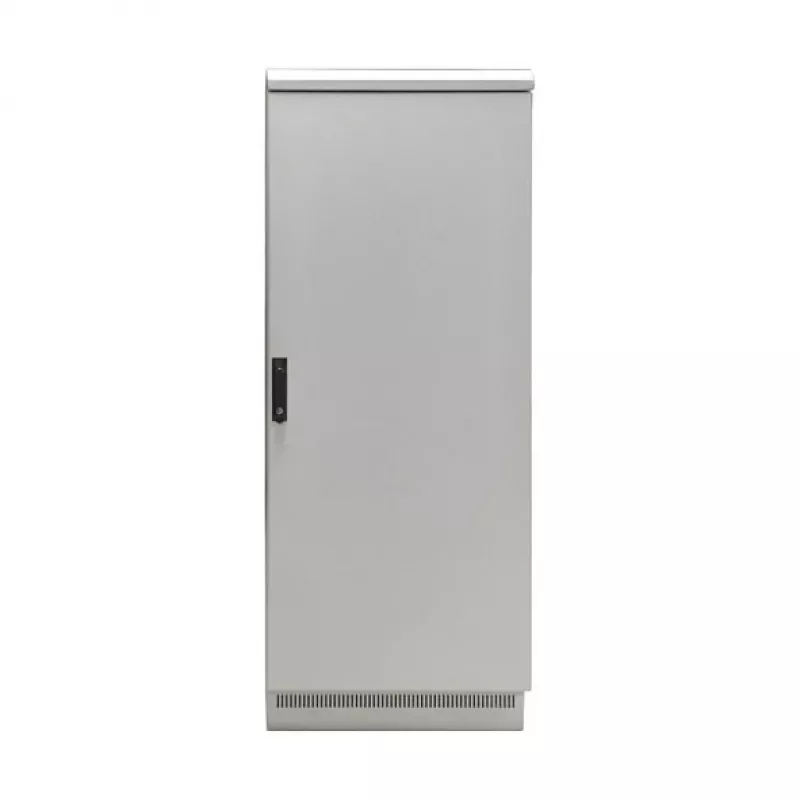

The EFB 19" 42HE 800x1000 Network Cabinet is a robust and secure enclosure designed for industrial environments, data centers, and protected outdoor areas. With an IP55 rating, it offers excellent protection against dust and water jets, ensuring reliable operation of your network equipment. The cabinet features a welded steel frame, powder-coated finish in RAL 7035 light grey, and solid steel doors with 3-point locking mechanisms for enhanced security.

Advantages

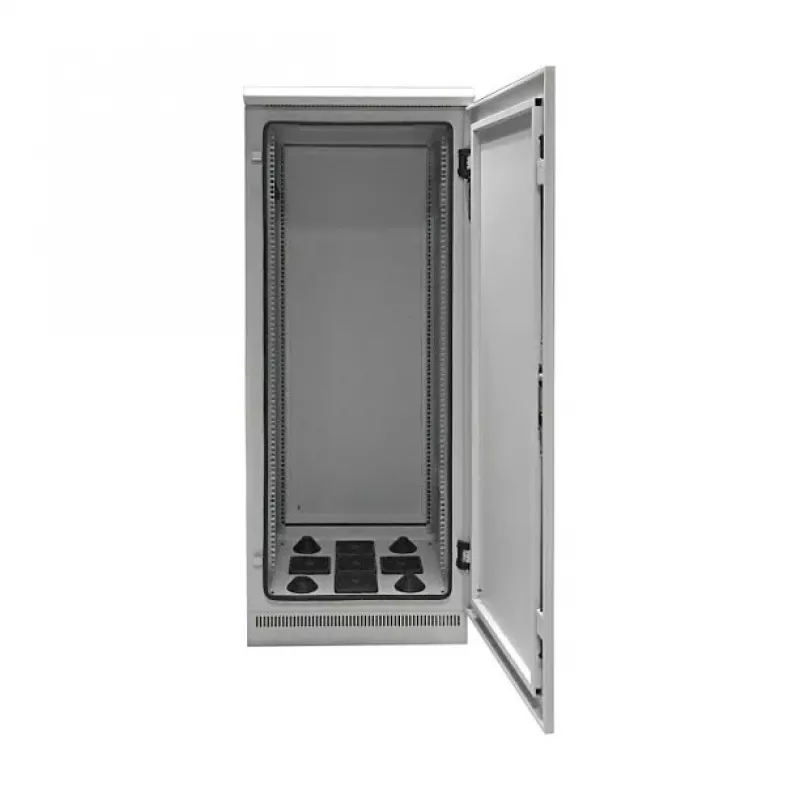

This network cabinet provides a high static load capacity of 1000 kg, adjustable 19-inch mounting profiles, and cable entry points at top and bottom with brush strips for effective sealing. The removable and lockable side panels allow easy access for installation and maintenance. Integrated grounding kit ensures safety and compliance.

Suitable for

• Industrial networking equipment
• Server and patch panel installations
• Protected outdoor enclosures
• Data center infrastructure

Key specifications

• Rack Standard: 19 inch
• Rack Units: 42U
• External Dimensions: 800 x 1000 x 2000 mm (WxDxH)
• Ingress Protection: IP55
• Colour: RAL 7035 (Light Grey)
• Material: Steel, powder-coated
• Front Door: Solid steel, single-leaf, 3-point locking
• Rear Door: Solid steel, single-leaf, 3-point locking
• Side Panels: Removable, lockable, solid
• Static Load Capacity: 1000 kg
• Cable Entry: Top and bottom, sealed with brush strips
• Mounting Profiles: 19-inch, adjustable depth
• Ventilation: Passive (sealed for IP55), provision for active cooling
• Frame Construction: Welded steel
• Surface Finish: Powder-coated
• Grounding: Integrated grounding kit
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure proper grounding and consider active cooling units if high heat dissipation is expected. This cabinet is ideal for environments requiring dust and water protection.
