EFB Καλώδιο Patch Duplex LC-LC OM5 1,5m LSZH 2mm Πράσινο Λάιμ

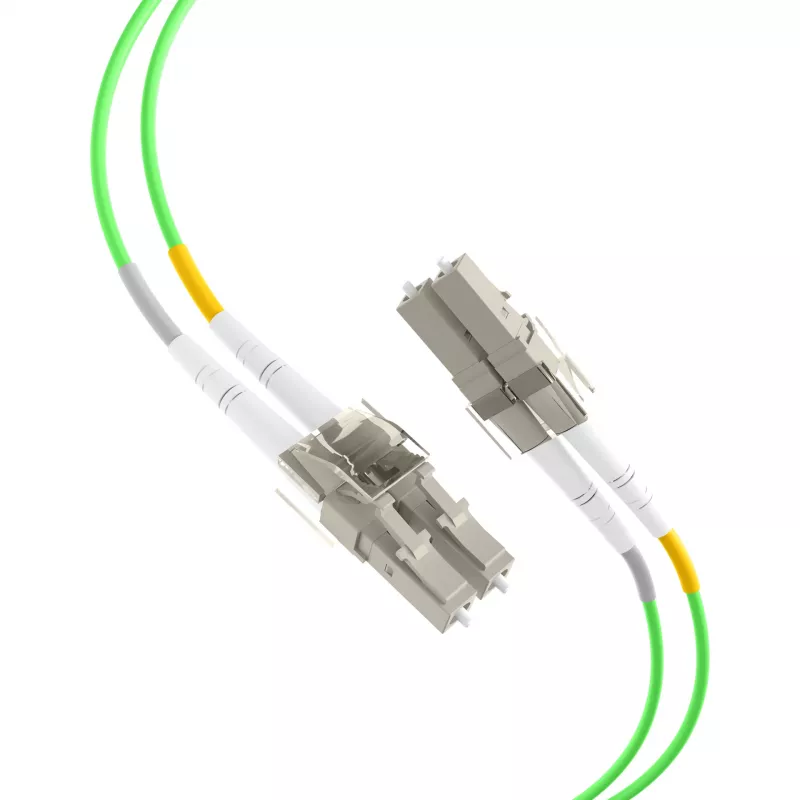

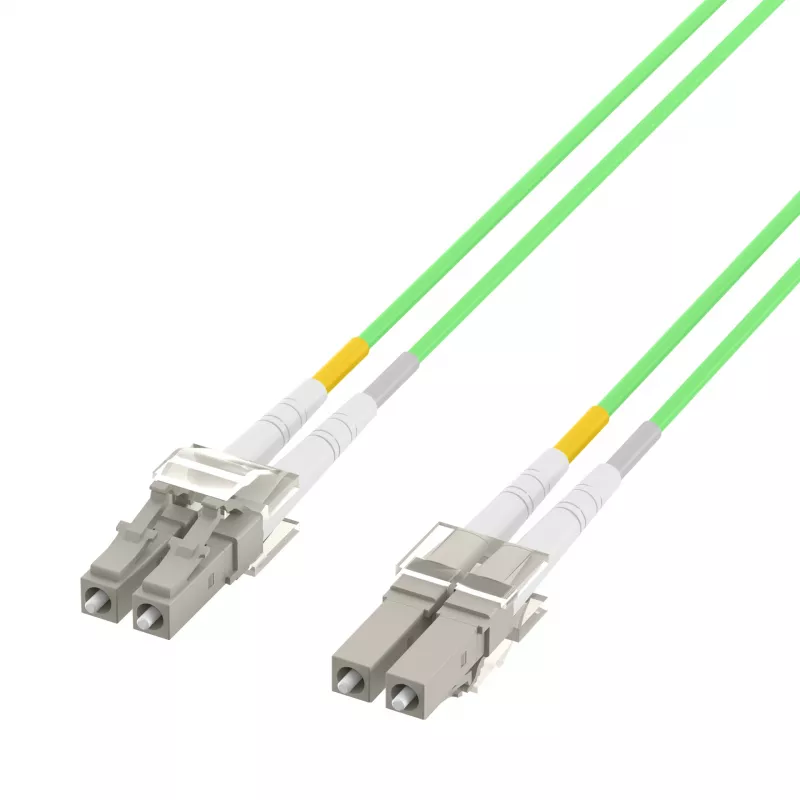

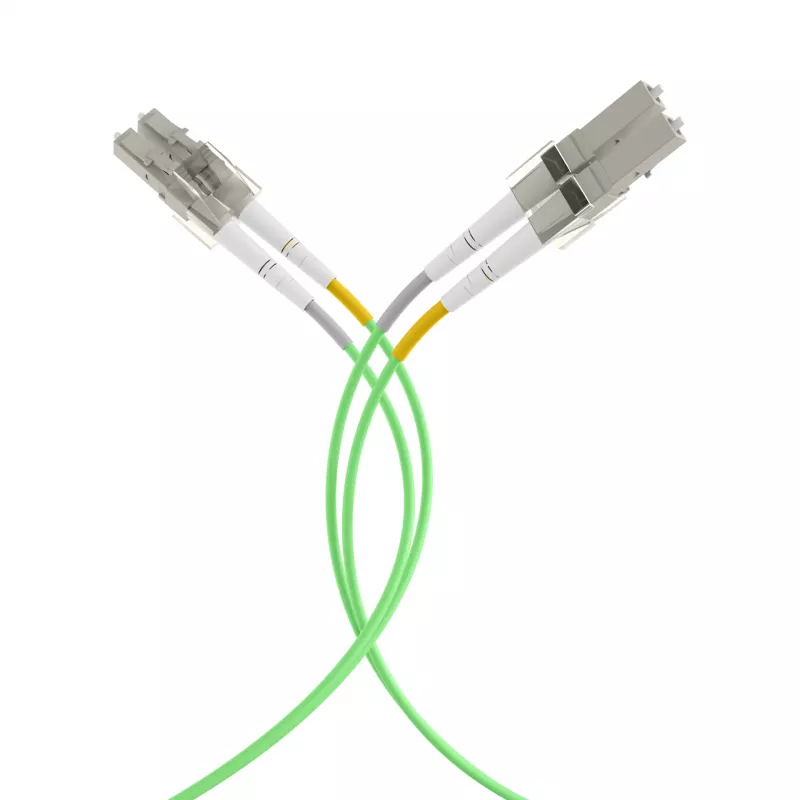

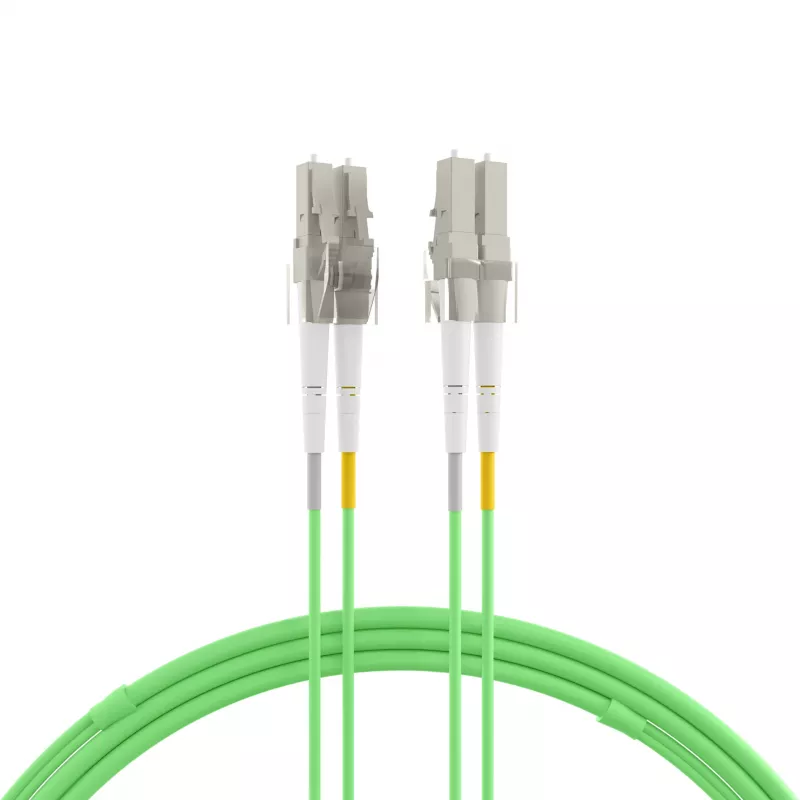

The EFB Duplex Patch Cable LC-LC OM5 1.5m LSZH 2mm Lime Green is a high-performance fiber optic patch cable designed for demanding data center and enterprise network applications. With OM5 wideband multimode fiber, it supports high-speed protocols such as 100GBASE-SR4 and 400GBASE-SR8, making it ideal for next-generation network infrastructures.

Advantages

This cable offers exceptional bandwidth and low attenuation, ensuring reliable data transmission over short distances. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes and smoke in case of fire. The lime green color allows for easy identification and cable management.

Suitable for

• Data centers requiring high-speed interconnects
• Storage Area Networks (SAN)
• Local Area Networks (LAN) with high bandwidth demands
• Telecommunications rooms and server racks

Key specifications

• Cable Type: Duplex Fiber Optic Patch Cable
• Fiber Type: Multimode (MM) OM5
• Connector A: LC/UPC
• Connector B: LC/UPC
• Cable Length: 1.5 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Lime Green
• Cable Diameter: 2.0 mm per strand
• Fiber Core/Cladding: 50/125 µm
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Bandwidth (850nm): 2800 MHz·km (OFL) / 4700 MHz·km (EMB)
• Bandwidth (953nm): 1850 MHz·km (OFL) / 2700 MHz·km (EMB)
• Attenuation (850nm): ≤ 3.0 dB/km
• Attenuation (1300nm): ≤ 1.0 dB/km
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH, TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC duplex transceivers and patch panels. Ideal for use in high-density environments where space and safety are critical.
