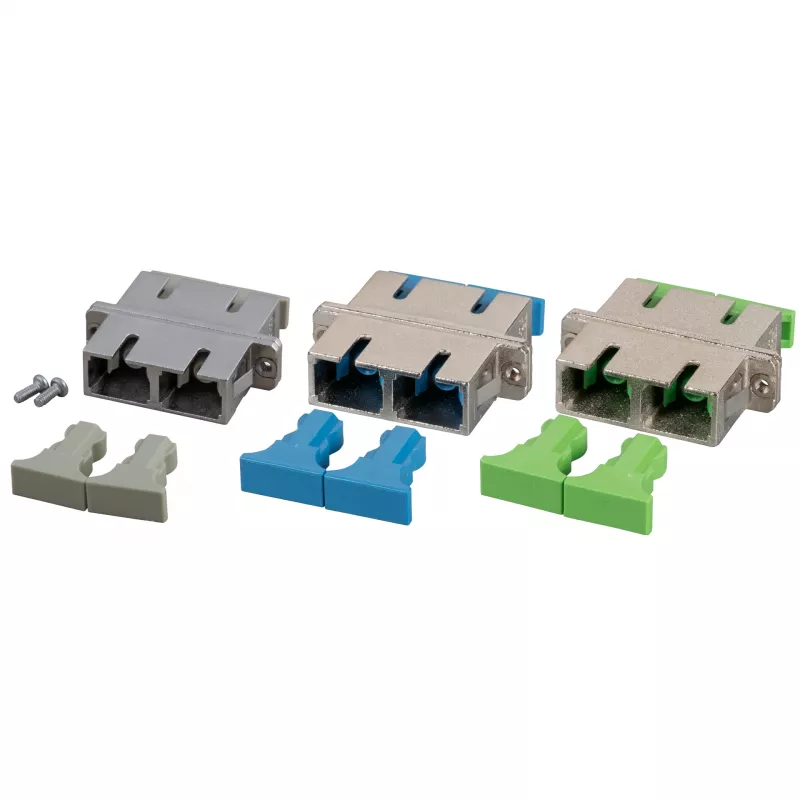

EFB Electronic Ζεύκτης SC-Duplex SM Μεταλλική Θήκη

The EFB electronic coupling SC-Duplex SM metal housing is a high-quality fiber optic adapter designed for reliable single-mode connections. Manufactured by EFB, this coupling ensures low insertion loss and durable performance, making it ideal for use in fiber optic patch panels, wall outlets, and distribution boxes.

Advantages

This coupling offers exceptional durability with a metal housing (zinc alloy) and ceramic sleeve, ensuring over 1000 mating cycles. The integrated dust caps protect the connectors when not in use, maintaining optimal performance. It complies with international standards IEC 61754-4 and TIA/EIA-604-3, guaranteeing compatibility and reliability.

Suitable for

• Fiber optic patch panels
• Wall outlets
• Distribution boxes
• Data center installations
• Telecommunications networks

Key specifications

• Connector Type: SC-Duplex
• Fiber Mode: Single-Mode (SM)
• Housing Material: Metal (Zinc Alloy)
• Sleeve Material: Ceramic
• Insertion Loss (Typical): ≤ 0.2 dB
• Mating Durability: > 1000 cycles
• Operating Temperature Range: -20°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Standard Compliance: IEC 61754-4, TIA/EIA-604-3
• Mounting Type: Panel Mount
• Color Code: Blue (for Single-Mode)
• Dust Protection: Integrated Dust Caps
• Duplex Orientation: Side-by-Side
• RoHS Compliant: Yes
• Halogen-Free: Yes

Recommendations

For optimal performance, use with single-mode fiber optic cables and ensure proper cleaning of connectors before mating. This coupling is suitable for both indoor and outdoor applications within the specified temperature range.
