Eaton Σφιγκτήρας διαστολής 150-300 mm² AKS300 (107196)

Rated for 630 A and 690 V AC, the Eaton AKS300 spreading clamp connects rigid or flexible conductors from 150 to 300 mm² to busbars in the xEffect system.

Overview

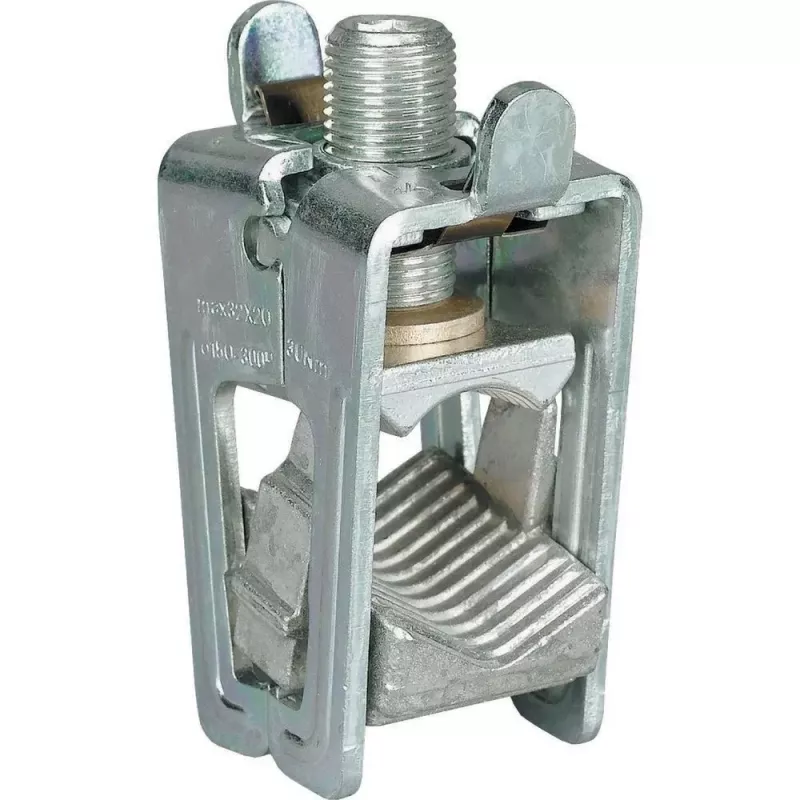

The Eaton AKS300 is a spreading clamp terminal designed for secure electrical connections in busbar systems. It accepts one conductor per clamp, with a screw terminal connection type and a copper contact material for reliable conductivity. The housing is made of polyamide (PA), providing insulation and mechanical protection. It is compatible with the Eaton xEffect busbar system, supporting busbar thicknesses of 5 mm and 10 mm.

Technical details

• Conductor cross-section (rigid): 150 - 300 mm²
• Conductor cross-section (flexible): 150 - 300 mm²
• Rated operational current: 630 A
• Rated operational voltage: 690 V AC
• Rated insulation voltage: 1000 V
• Connection type: Spreading clamp (screw terminal)
• Number of conductors per clamp: 1
• Mounting type: Busbar mounting
• Busbar system compatibility: Eaton xEffect (5/10 mm thick)
• Material (contact): Copper
• Material (housing): Polyamide (PA)
• Pollution degree: 3
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Colour: Grey / Black

Our verdict

A robust and high-capacity terminal clamp for large conductor cross-sections, ideal for industrial busbar installations.
