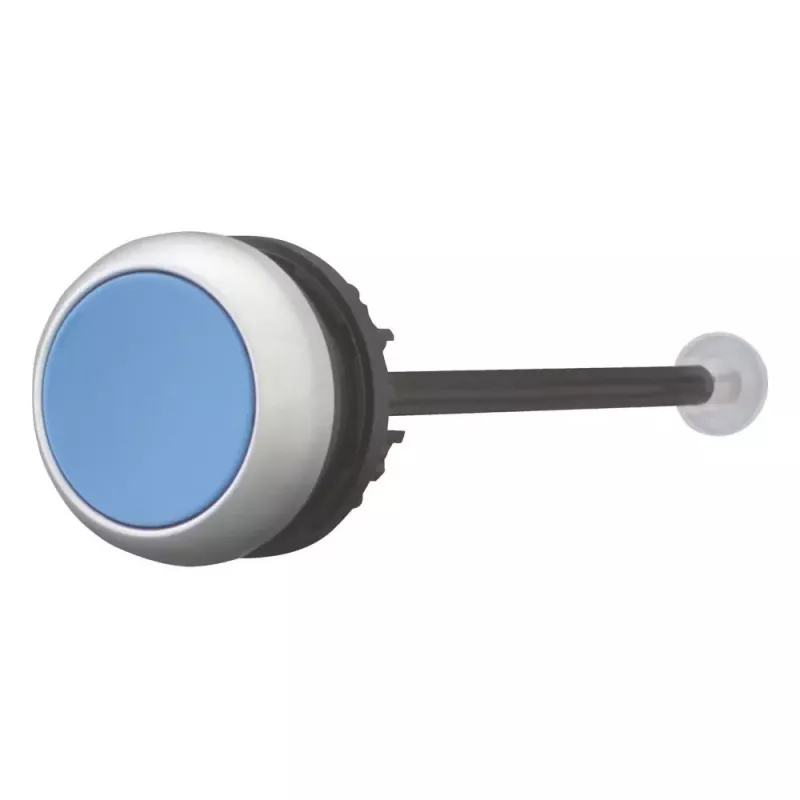

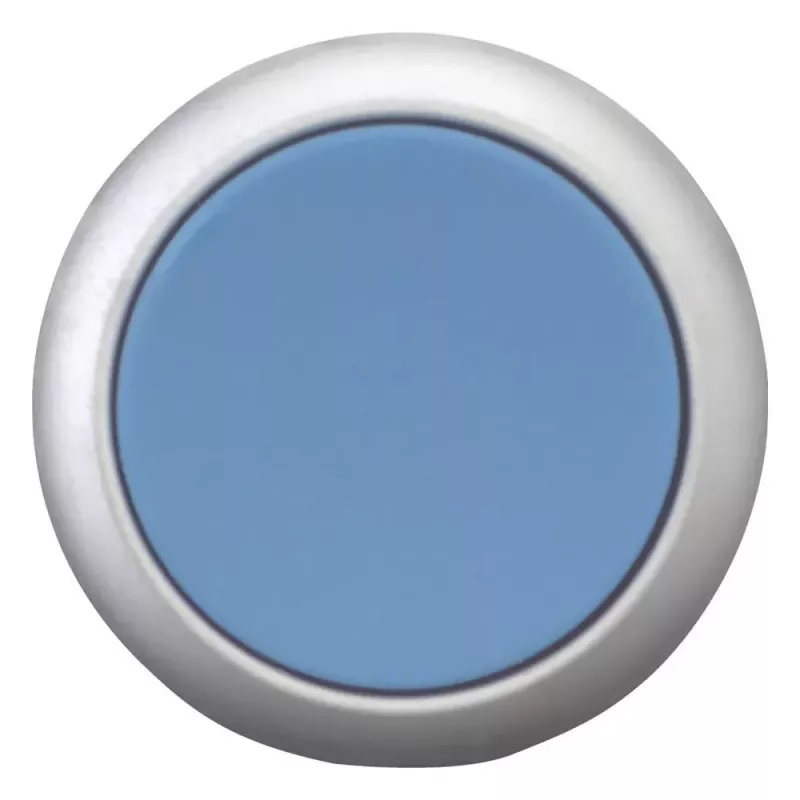

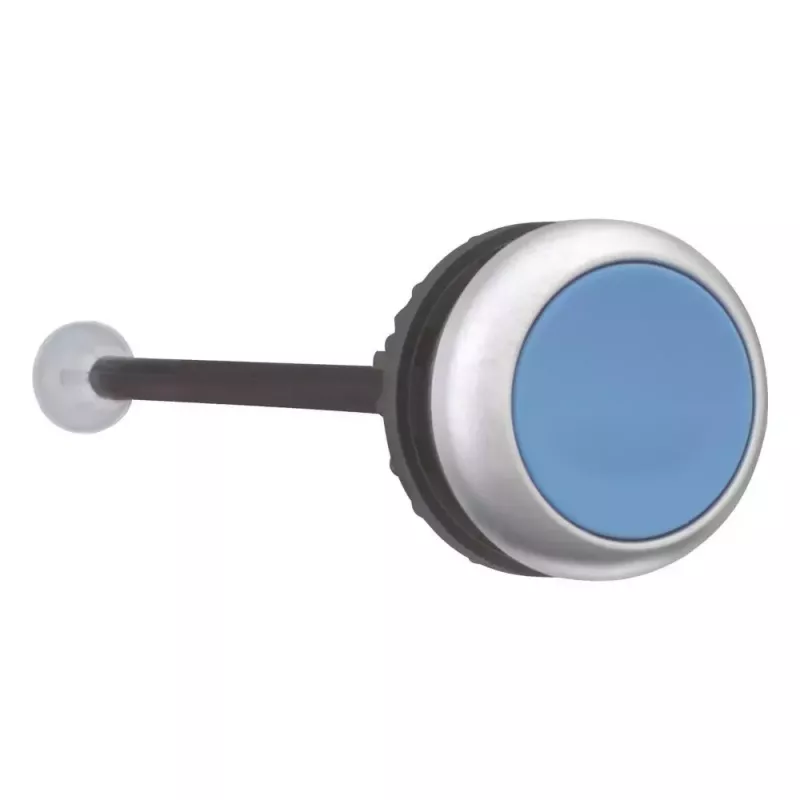

Eaton M22-DZ-B μπλε μηχανισμός μπουτόν με κλειδαριά απελευθέρωσης 254833

With a front protection rating of IP66, IP67, and IP69K, the Eaton M22-DZ-B key release button actuator is built for harsh industrial environments where dust, water, and high-pressure washdowns are a daily reality.

Overview

The Eaton M22-DZ-B is a blue, key-operated actuator from the RMQ-Titan series, designed for 22.5 mm panel mounting. It provides a reliable unlocking or switching function in control circuits, operating as a 2-position device with key removal in the 0 position. The actuator is non-illuminated and compatible with Eaton M22 contact blocks and lamp holders.

What stands out

• Front protection IP66, IP67, IP69K for demanding environments
• Key-operated design with key removal in the 0 (unlocked) position
• Mechanical life exceeding 100,000 operations
• Wide operating temperature range from -25 to +70 °C
• Plastic front ring for lightweight durability

Technical details

• Product type: Key release button actuator
• Series: M22 (RMQ-Titan)
• Colour: Blue
• Actuator type: Key-operated
• Mounting diameter: 22.5 mm
• Number of positions: 2
• Key removal position: 0 (unlocked)
• Front ring material: Plastic
• Protection degree (front): IP66, IP67, IP69K
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Mechanical life: > 100,000 operations
• Compatibility: Eaton M22 contact blocks, M22 lamp holders
• Standards compliance: IEC/EN 60947-5-1, VDE 0660 Part 200
• Function: Unlocking / Switching
• Illumination: Non-illuminated
• Key included: No (actuator only)
• Panel thickness: 1-6 mm

Our verdict

A robust key release actuator for industrial control panels, offering high protection and long mechanical life. Ideal for applications requiring secure switching with key removal in the unlocked position.
