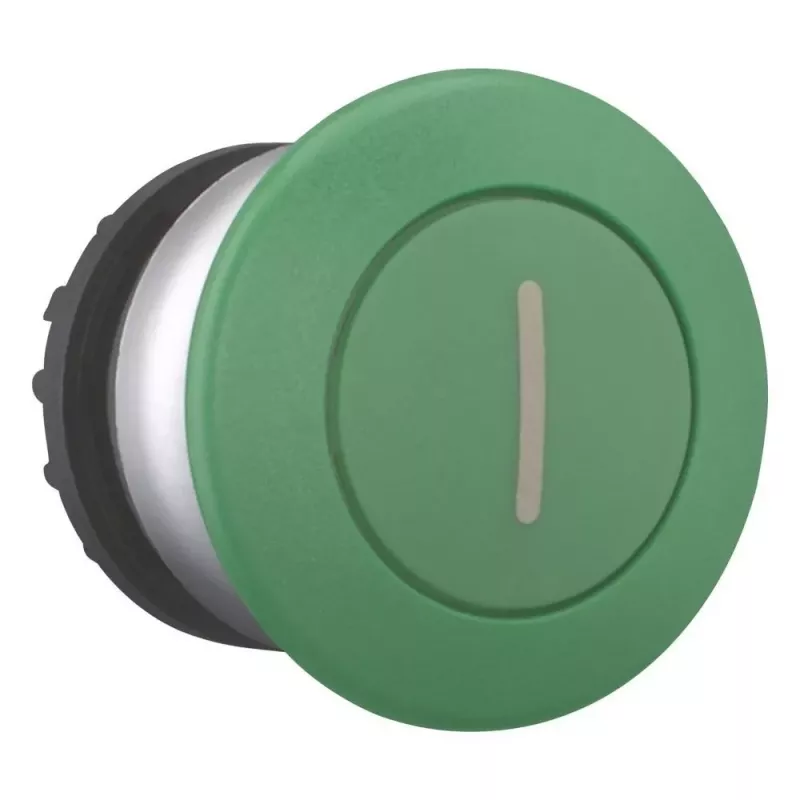

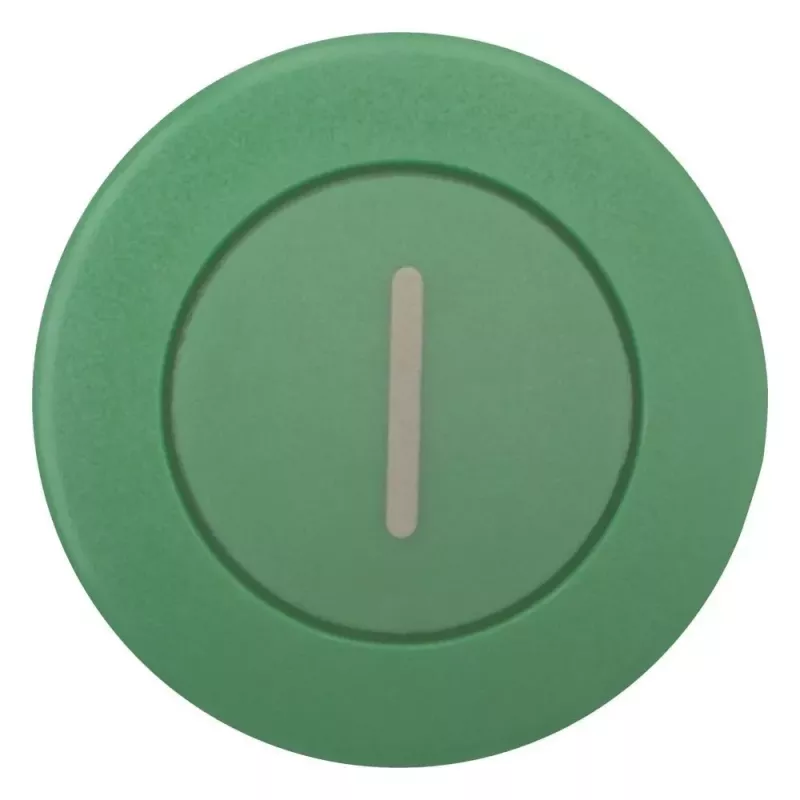

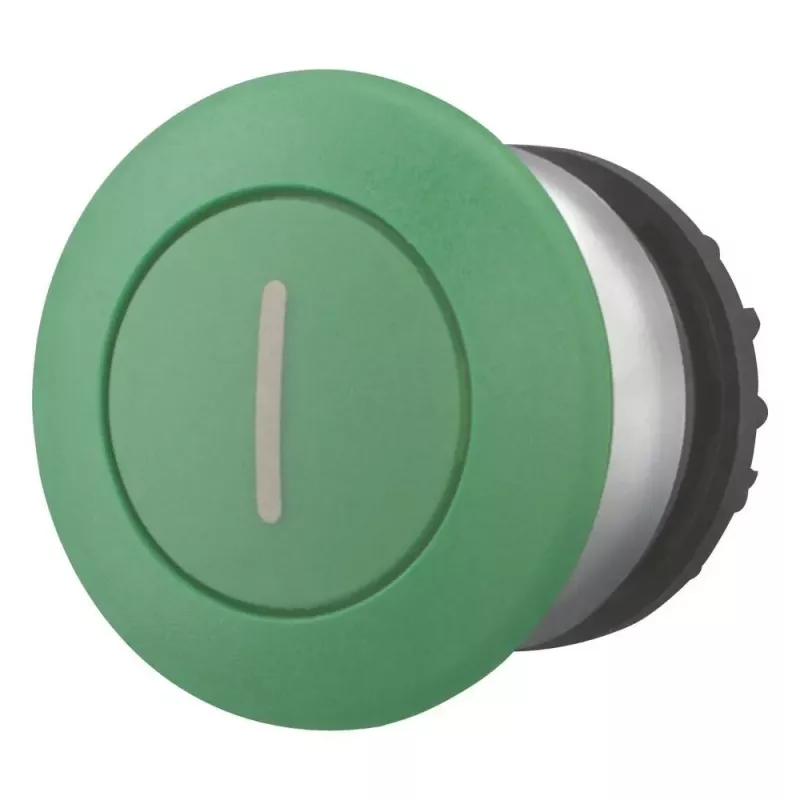

Eaton M22-DRP-G-X1 Green Latching Pushbutton Actuator, 22.5 mm, Front Panel Mount 216753

Control panel builders and machine operators use the Eaton M22-DRP-G-X1 as a reliable green pushbutton actuator for start or reset functions. It mounts in a standard 22.5 mm panel cut-out and works with separate M22 contact blocks (not included) to complete the switching circuit.

Key specifications

• Actuator type: round pushbutton, latching (maintained)
• Actuator colour: green
• Mounting diameter: 22.5 mm
• Front protection: IP66, IP67, IP69K
• Bezel material: plastic, black
• Operating temperature: -25 to +70 °C
• Mechanical life: > 5 million operations
• Max panel thickness: 6 mm

Why choose it

The latching action keeps the button in the pressed position until pressed again, providing clear visual status. Its rugged front protection suits washdown environments, and the modular M22 system allows flexible contact configurations.

Ideal use cases

• Industrial control panels for start/stop functions
• Machine tools and packaging equipment
• Washdown areas requiring high ingress protection

Good to know

Compatible with Eaton M22 series contact blocks and lamp holders. The actuator is non-illuminated; illumination can be added with a separate lamp holder if needed.
