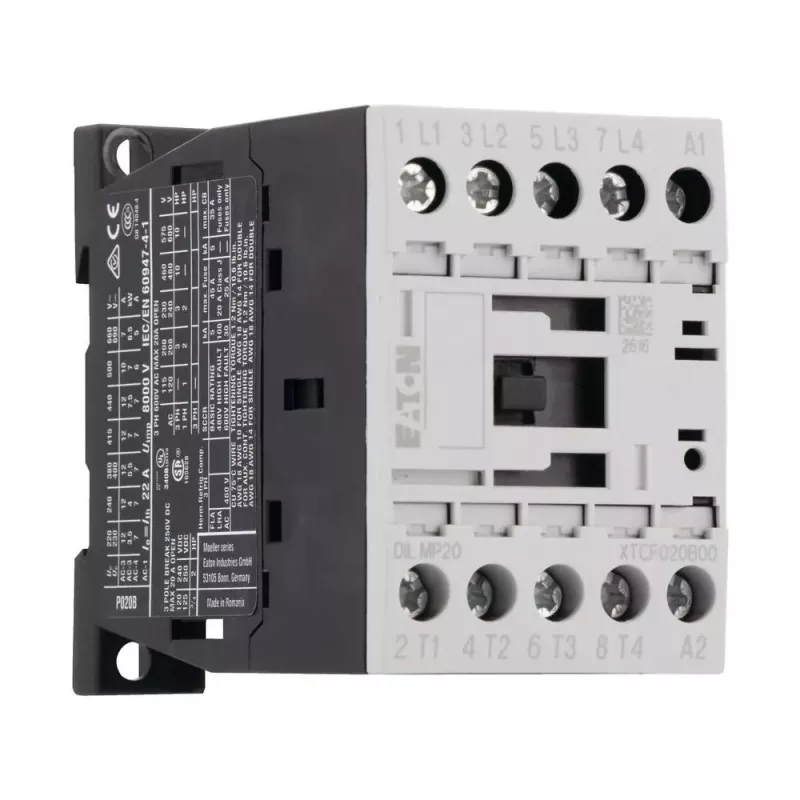

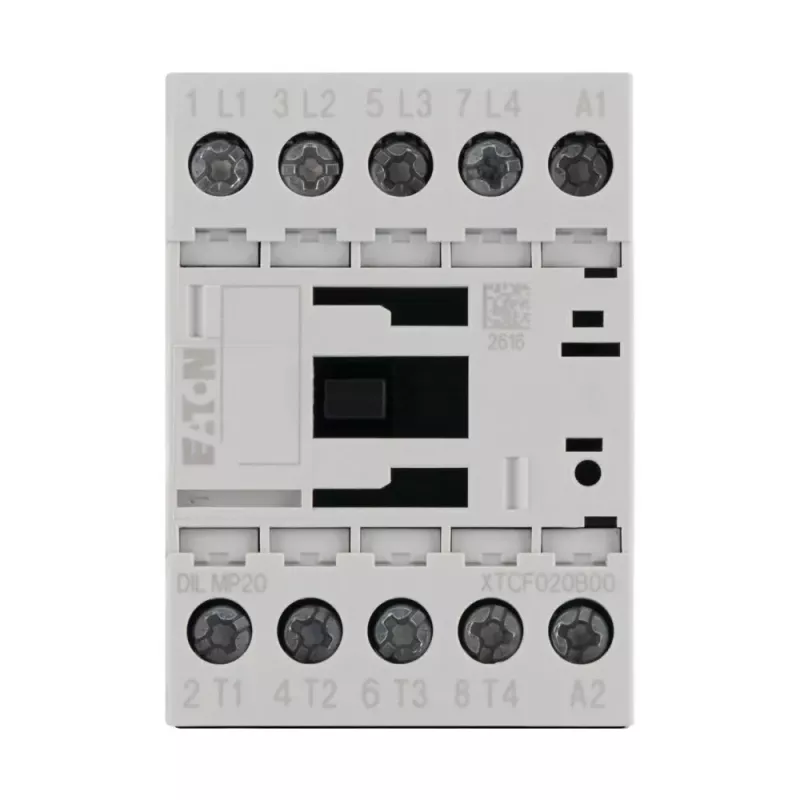

Eaton DILMP20 4-πολικός επαφέας 20A AC-1 230V 50/60Hz 276978

In industrial control panels, the Eaton DILMP20 contactor reliably switches three-phase loads up to 20 A. It is used by panel builders and maintenance technicians for motor control, heating, and lighting circuits.

Key specifications

• Number of poles: 4
• Rated operational current (AC-1): 20 A
• Coil voltage: 230 V AC, 50/60 Hz
• Utilization category: AC-1
• Rated operational voltage: 690 V AC
• Rated insulation voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Mounting: DIN rail or screw
• Terminal type: screw terminals

Why choose it

The DILMP20 offers a compact design with high mechanical and electrical durability. It is suitable for demanding industrial environments and complies with international standards.

Ideal use cases

• Switching resistive loads such as heating elements
• Controlling lighting circuits in commercial buildings
• Motor control in conveyor systems

Good to know

The contactor has no built-in auxiliary contacts, but they can be added as front-mount modules. The coil consumption is 60 VA during pull-in and 7.5 VA holding.
