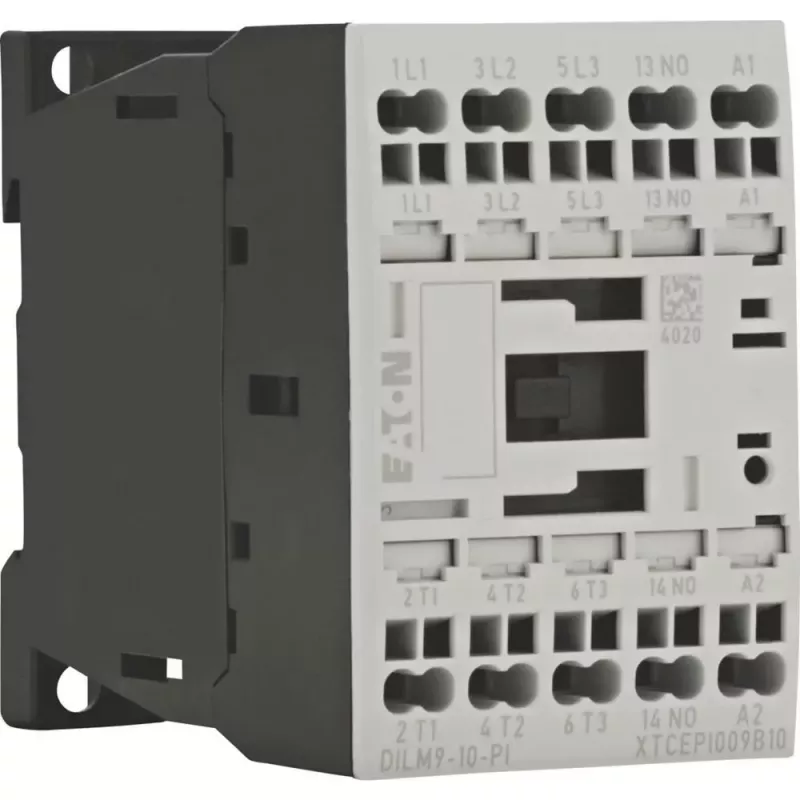

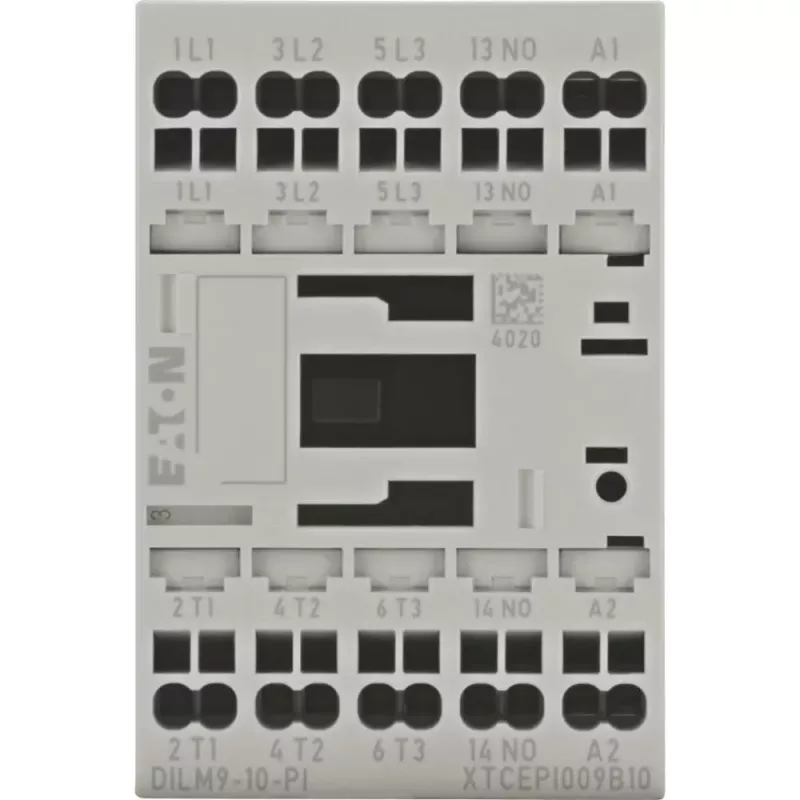

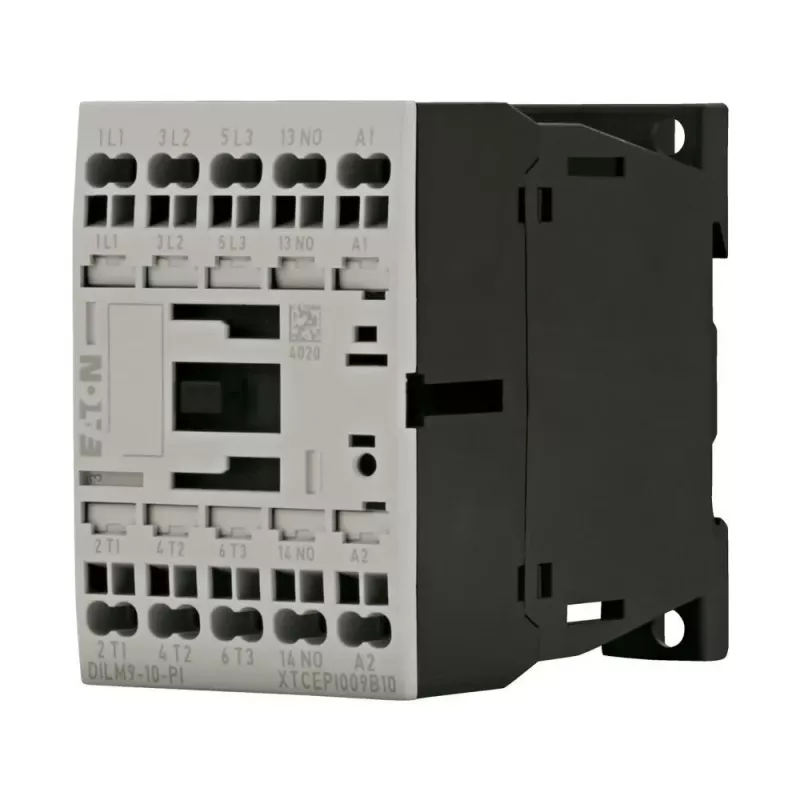

Eaton DILM9-10 Ρελέ, 3-πολικό, 9 A, Πηνίο 230 V AC 199229

Industrial control panels and motor starters rely on the Eaton DILM9-10 contactor to switch three-phase loads up to 4 kW at 400 V. This compact 3-pole device handles 9 A in AC-3 duty and 22 A in AC-1 duty, with a 230 V AC coil for direct control from standard PLC outputs or pushbuttons.

Key specifications

• 3-pole main contacts, 1 normally open auxiliary contact
• Rated operational current: 9 A (AC-3, 400 V), 22 A (AC-1, 400 V)
• Coil voltage: 230 V AC (50 Hz), 240 V AC (60 Hz)
• Rated operational voltage: 690 V AC
• Mounting: DIN rail or screw
• Degree of protection: IP20
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Mechanical durability: 10 million operations
• Electrical durability: 1.5 million operations (AC-3)
• Operating temperature: -25 to +60 °C
• Short-circuit protection: 25 A gG/gL fuse at 400 V

Why choose it

The DILM9-10 combines proven contactor technology with a compact 45 mm width, saving space in crowded enclosures. Screw terminals provide secure wiring for solid or stranded conductors, and the auxiliary contact simplifies control circuit integration.

Ideal use cases

• Motor starting for conveyors, pumps, and fans up to 4 kW
• Heating and lighting load switching in building automation
• Replacement for older DIL series contactors in retrofit projects

Good to know

Designed to IEC/EN 60947, VDE 0660, UL, and CSA standards, this contactor is suitable for global applications. Its IP20 rating means it must be installed inside an enclosure for protection against dust and contact.
