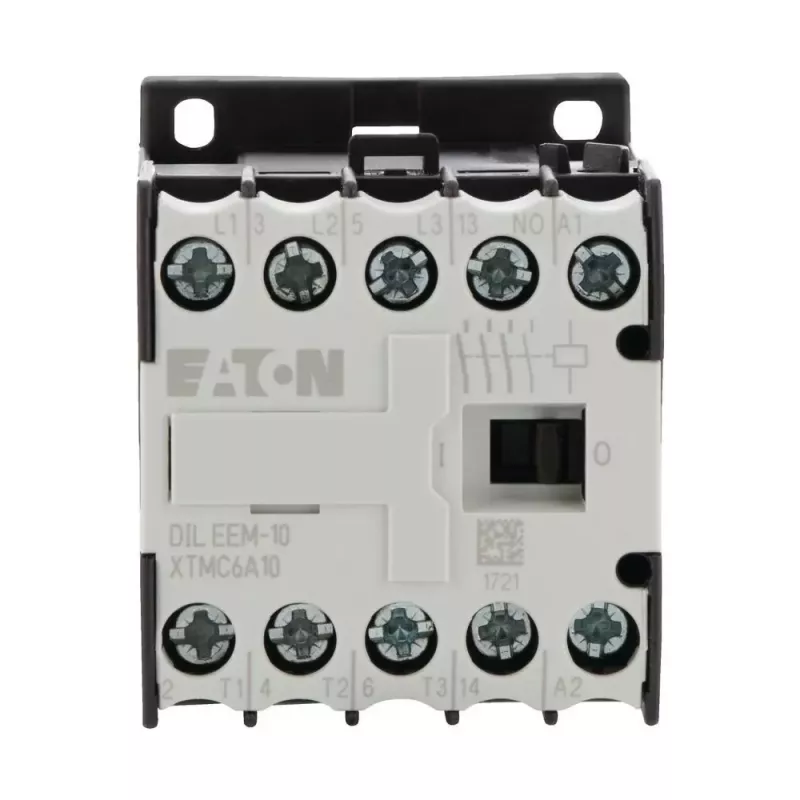

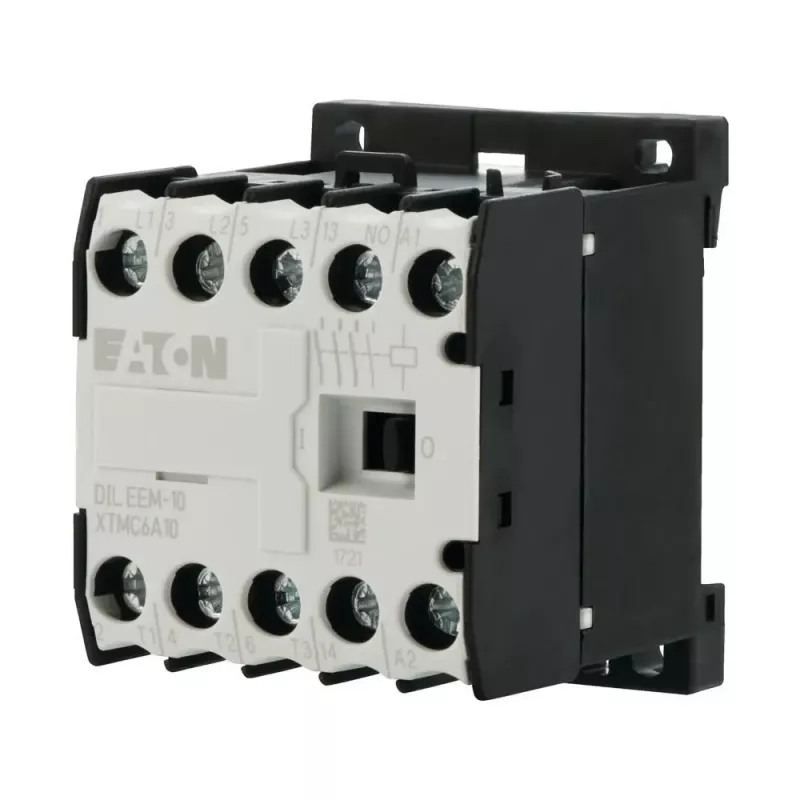

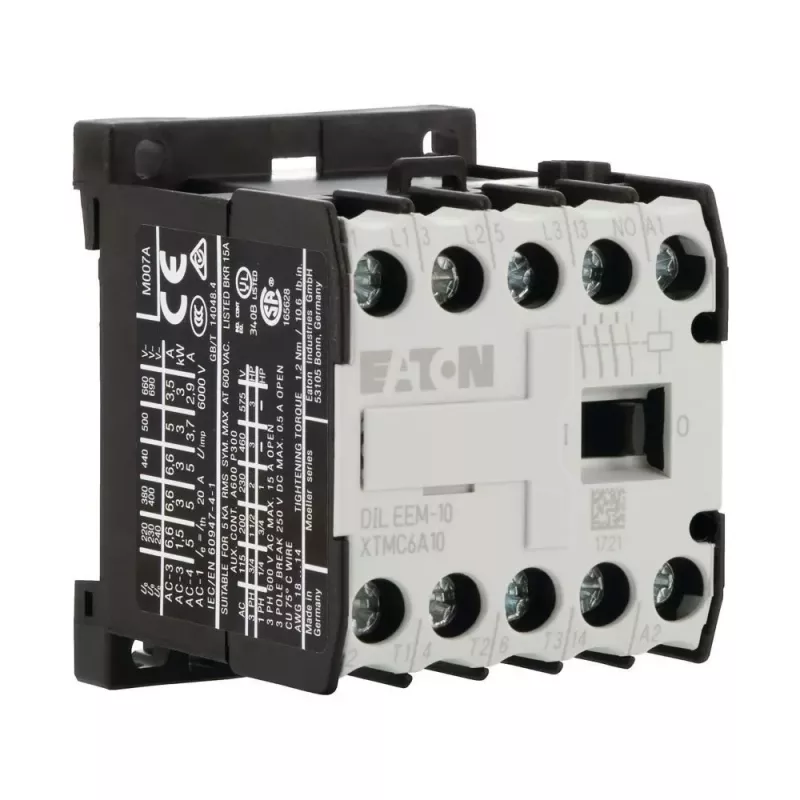

Eaton DILEEM-10-G 24V DC βοηθητικό ρελέ, 1NO, 690V, μαύρο/λευκό 051643

The Eaton DILEEM-10-G stands apart from generic auxiliary contactors by combining a compact footprint with robust switching capability up to 690 V and a 10 A thermal current rating. Its 24 V DC coil makes it ideal for control circuits in industrial automation, while the black and white housing provides clear visual identification. Compliance with IEC/EN 60947-4-1, UL 508, and CSA-C22.2 No. 14-05 ensures reliable performance in demanding environments.

Highlights

• 1 normally open (NO) contact for auxiliary switching
• 24 V DC coil voltage for low-voltage control systems
• Rated operational voltage up to 690 V AC
• High mechanical durability: over 10 million operations
• Compact design with DIN rail or screw mounting
• IP20 terminal protection
• Wide operating temperature range: -25 to 50 °C

In daily use

This auxiliary contactor excels in motor control and automation applications where reliable signal switching is critical. The screw terminals ensure secure wiring, and the IP20 rating protects against accidental contact. With a mechanical life exceeding 10 million operations and an electrical life over 1 million operations under AC-15 conditions, it delivers long-term dependability. The black and white housing not only looks professional but also aids in quick identification on crowded DIN rails.

Full specifications

• Brand: Eaton
• Model: DILEEM-10-G
• MPN: 051643
• EAN: 4015080516439
• Product type: Auxiliary contactor
• Contact configuration: 1 NO
• Coil voltage: 24 V DC
• Rated operational voltage (Ue): up to 690 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Conventional free air thermal current (Ith): 10 A
• Operating temperature range: -25 to 50 °C
• Standards: IEC/EN 60947-4-1, UL 508, CSA-C22.2 No. 14-05, CE
• Mounting: DIN rail / screw
• Terminal type: screw terminals
• Degree of protection (terminals): IP20
• Mechanical life: >10 million operations
• Electrical life (AC-15, 230 V, 3 A): >1 million operations
• Housing colour: black / white
• Series: DIL EM

Final note

For engineers and panel builders seeking a dependable auxiliary contactor with proven certifications and a compact form factor, the Eaton DILEEM-10-G is a solid choice that balances performance and longevity.
