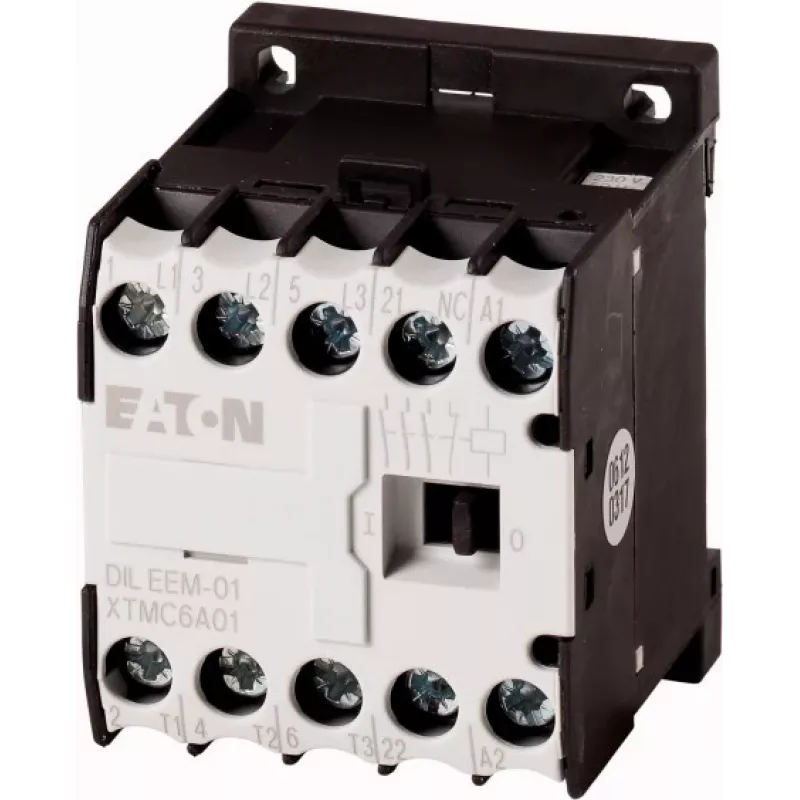

Eaton DILEEM-01 μίνι ρελέ 230V 50Hz / 240V 60Hz 1NO 051633

Small control tasks in industrial panels often demand a compact switching device that handles both AC and DC loads without taking up much rail space. The Eaton DILEEM-01 mini contactor solves this with a 1NO auxiliary contact and a coil rated for 230 V at 50 Hz or 240 V at 60 Hz, making it a practical choice for machine builders and panel shops.

Who is it for

This device suits electricians, panel builders, and maintenance technicians who need a reliable, space-saving contactor for control circuits, signaling, or small motor loads. Its dual frequency rating allows use in regions with either 50 Hz or 60 Hz mains.

Main features

• 1 normally open (NO) auxiliary contact
• Coil voltage: 230 V AC at 50 Hz, 240 V AC at 60 Hz
• Rated insulation voltage: 690 V
• Rated operational current: 20 A (AC-1, 230 V), 3 A (AC-15, 230 V)
• Compact DIN rail or screw mounting
• Operating temperature range: -25 to 50 °C
• Housing in black and white

Specifications

• Product type: Mini contactor
• Series: DIL EM
• Rated impulse withstand voltage: 6 kV
• Protection degree: IP20
• Electrical life (AC-15): 10 x 10^6 operations
• Mechanical life: 20 x 10^6 operations
• Terminal type: Screw terminals
• Weight: 170 g

Tips

When selecting a contactor, verify the coil voltage matches your control circuit. The DILEEM-01 is designed for frequent switching and fits standard 35 mm DIN rails, simplifying installation in crowded enclosures.
