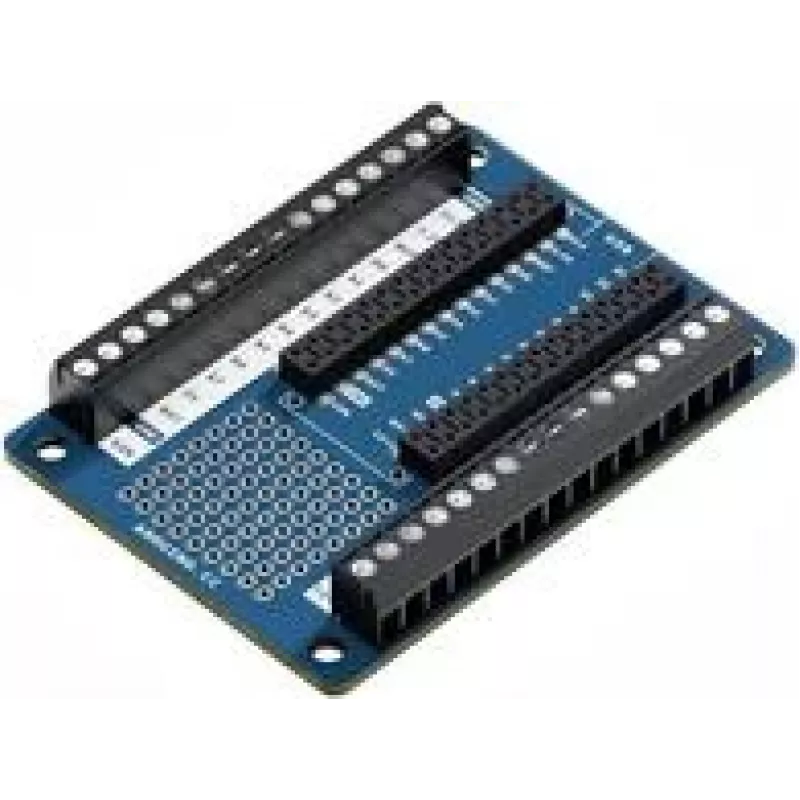

Arduino Nano shield προσαρμογέας βιδωτών ακροδεκτών ASX00037-3P

This screw terminal adapter shield for Arduino Nano provides a reliable screw terminal connection for every pin on the Nano board, simplifying wiring for prototyping and permanent installations. It features clearly labeled terminals for digital, analog, power, ground, and reset signals, plus a DC power jack for external 7-12V supply and a power status LED.

Advantages

The adapter board eliminates the need for soldering or jumper wires, allowing secure screw terminal connections for all Arduino Nano pins. It includes a DC power jack for direct external power input and an LED indicator for power status. The board is made of FR-4 material with four mounting holes for stable installation.

Suitable for

• Prototyping and testing Arduino Nano projects
• Permanent installations requiring robust wiring
• Industrial control and automation systems
• Educational projects and electronics learning

Key specifications

• Compatibility: Arduino Nano V3.0 and compatible boards
• Terminal type: Screw terminal blocks, approximately 30 terminals
• Pinout labeling: Digital (D0-D13), Analog (A0-A7), Power (5V, 3.3V), Ground (GND), Reset (RST)
• External power input: DC power jack (7-12V recommended)
• Indicator: Power status LED
• Mounting holes: 4 standard holes
• Board material: FR-4 PCB, blue color
• Dimensions: 54mm x 37mm, weight: 25g

Recommendations

For secure and tidy connections in your Arduino Nano projects, this screw terminal adapter is an essential accessory. It is ideal for both hobbyists and professionals seeking reliable wiring solutions.
