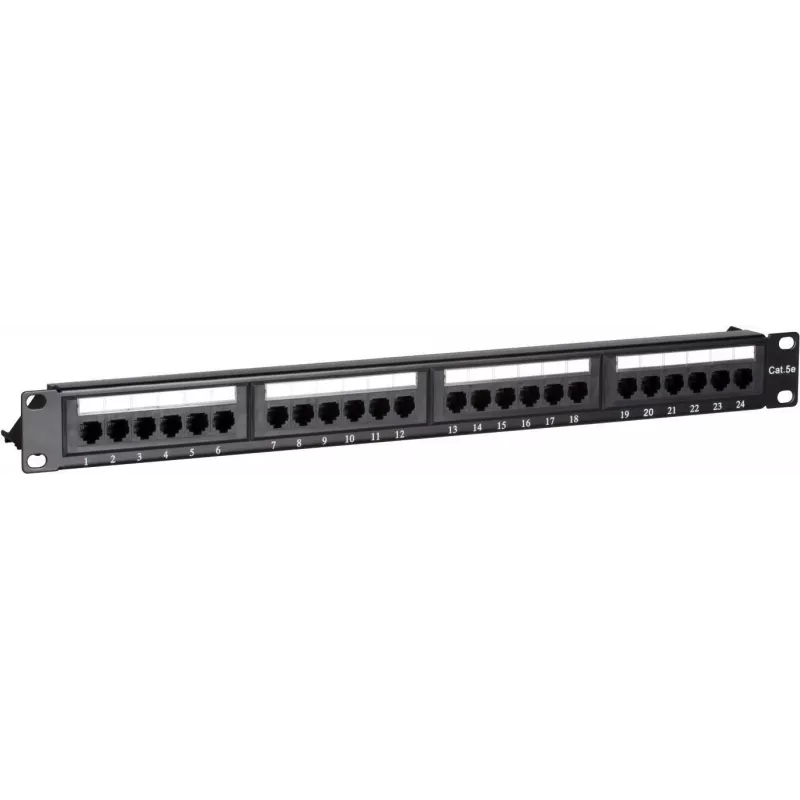

DS-IT CAT 5e UTP 24-Port 19 ιντσών Rackmount Patch Panel (DS-Patch5-24UTP)

Unlike many patch panels that force you to choose between durability and ease of termination, the DSIT DS-Patch5-24UTP delivers both in a compact 1U footprint. This 24-port CAT 5e UTP panel is built around a steel frame with gold-plated RJ45 contacts, ensuring reliable Gigabit Ethernet performance for years. The rear IDC blocks accept LSA+ or Krone tools, so you can terminate quickly without sacrificing signal integrity.

Highlights

• 24 RJ45 ports on a 19-inch rack-mountable panel, occupying only 1U of space
• Supports CAT 5e UTP cabling for 10/100/1000Base-T networks
• Gold-plated contacts resist corrosion and maintain low contact resistance
• IDC termination compatible with both LSA+ and Krone punch-down tools
• Sturdy steel housing with clear port numbering for easy identification
• Meets ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards

In daily use

Whether you are wiring a small office or a data center row, this panel simplifies cable management. The rear IDC blocks are angled to reduce strain on twisted pairs, and the front ports accept standard RJ45 plugs. The panel operates reliably in temperatures from -10°C to 60°C and up to 90% non-condensing humidity, making it suitable for most indoor environments.

Full specifications

• Brand: DSIT
• Model: DS-Patch5-24UTP
• MPN: DS-Patch5-24UTP
• EAN: 8719172412154
• Product type: Network patch panel
• Rack size: 19-inch
• Rack units: 1U
• Number of ports: 24
• Cable category: CAT 5e
• Shielding: UTP (unshielded twisted pair)
• Front connectors: RJ45 jacks
• Rear connectors: IDC (insulation displacement connectors)
• Termination standard: TIA/EIA 568A/B
• Housing material: Steel
• Contact plating: Gold-plated contacts (on RJ45)
• Compatibility: 10/100/1000Base-T Ethernet (Gigabit Ethernet)
• Mounting: Rack-mountable
• IDC compatibility: LSA+ / Krone compatible
• Operating temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Final note

The DSIT DS-Patch5-24UTP is a dependable choice for structured cabling projects where performance and straightforward installation matter most.
