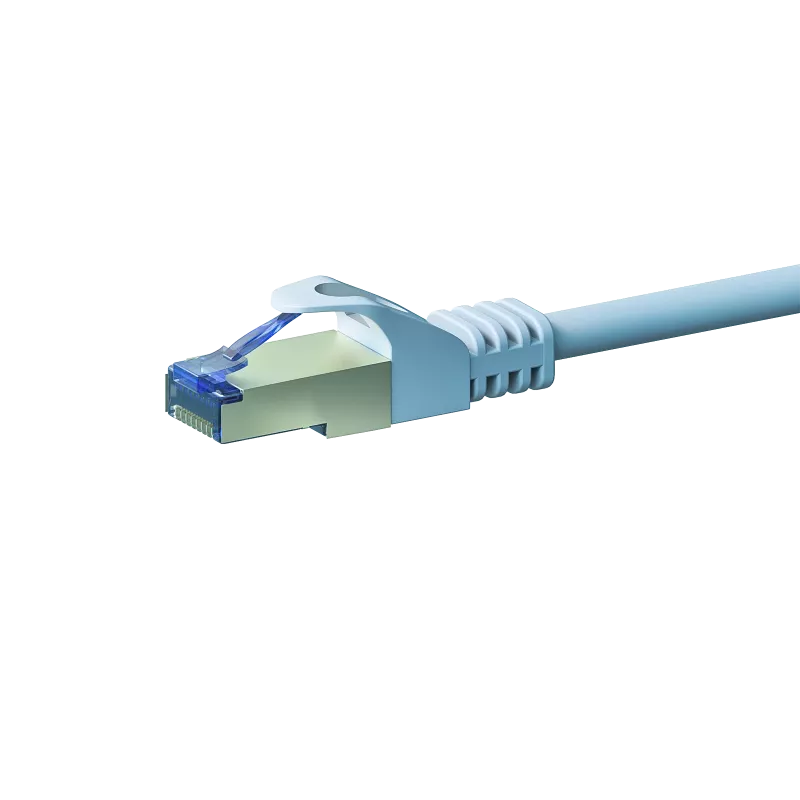

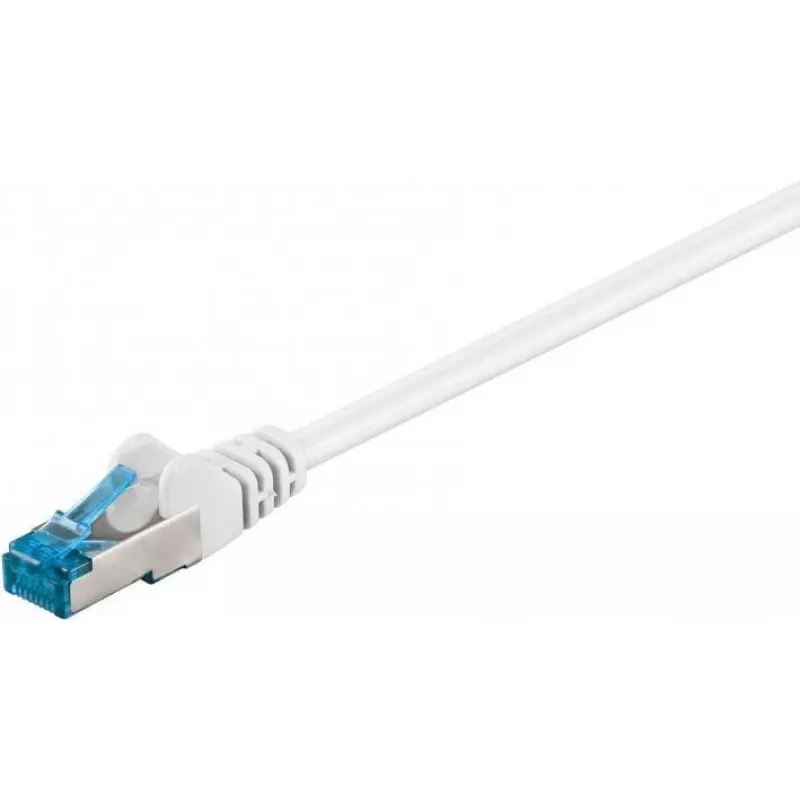

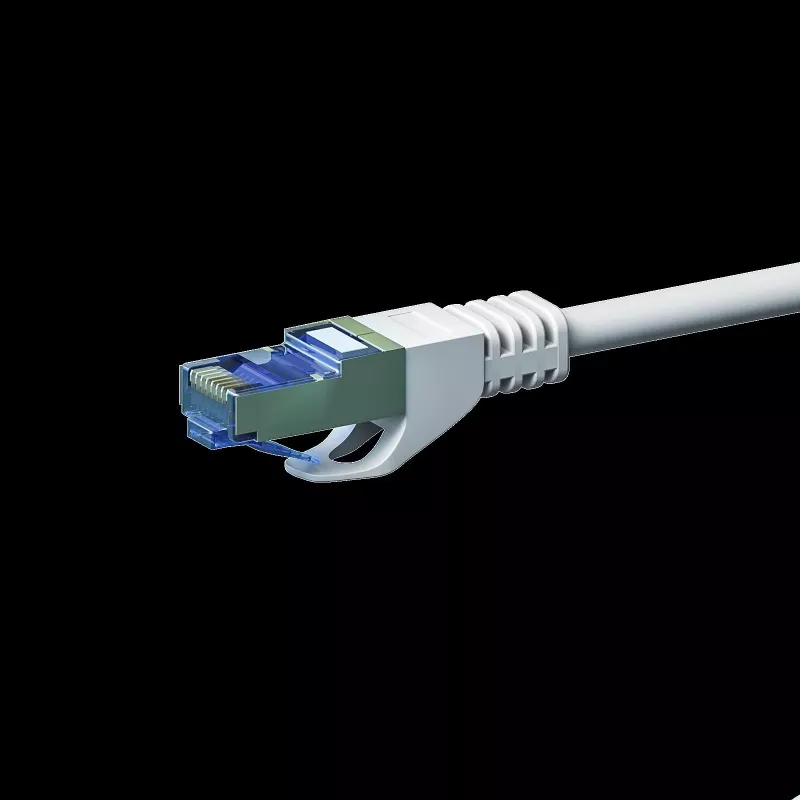

DSIT CAT 6a S/FTP LSOH καλώδιο δικτύου patch, 1 m, λευκό (DC-6A2-010)

For high-density 10 Gigabit Ethernet links where fire safety and signal integrity are non-negotiable, this DSIT CAT 6a patch cable pairs S/FTP shielding with a low-smoke zero-halogen jacket. Unlike standard PVC cables, the LSOH sheath emits minimal smoke and no corrosive halogens in a fire, making it suitable for data centers, server rooms, and public buildings. Each of the four twisted pairs is individually foil-shielded, and the entire bundle is wrapped in a copper braid, providing superior protection against alien crosstalk and EMI. The result is a stable 500 MHz channel that reliably carries 10GBASE-T over the full 1-meter length.

Highlights

• Category 6a performance: supports 10 Gigabit Ethernet up to 500 MHz bandwidth.
• S/FTP construction: individual pair foils plus overall braid shield for maximum noise immunity.
• LSOH jacket: low smoke, zero halogen for enhanced fire safety in enclosed spaces.
• Gold-plated RJ45 connectors: 50 µm gold plating resists corrosion and ensures reliable contacts.
• 100% copper conductors: stranded AWG 26/7 for flexibility and consistent signal quality.
• Backward compatible: works with Cat 6, Cat 5e, and Cat 5 networks.

In daily use

Terminated with snagless RJ45 plugs and wired to TIA/EIA 568B, this cable connects servers, switches, patch panels, and workstations without signal degradation. The white jacket is easy to identify in cable trays and blends into office environments. The 1-meter length is ideal for short rack-to-rack links or connecting adjacent equipment. The LSOH material remains flexible and durable across a wide temperature range from -20°C to 60°C.

Full specifications

• Cable type: S/FTP (Screened/Foiled Twisted Pair)
• Category: Cat 6a (Category 6a)
• Length: 1 m
• Colour: White
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: up to 500 MHz
• Connector type: RJ45 male to RJ45 male
• Connector plating: 50 µm gold-plated contacts
• Conductor material: 100% copper
• Conductor construction: stranded
• Conductor gauge: AWG 26/7
• Wiring standard: TIA/EIA 568B
• Impedance: 100 Ohm
• Fire safety: IEC 60332-1, IEC 61034, IEC 60754 (LSOH compliant)
• Operating temperature: -20°C to 60°C
• Certifications: RoHS compliant

Final note

Choose this DSIT patch cable when you need a short, fire-safe, high-performance link for 10G networks in critical environments.
