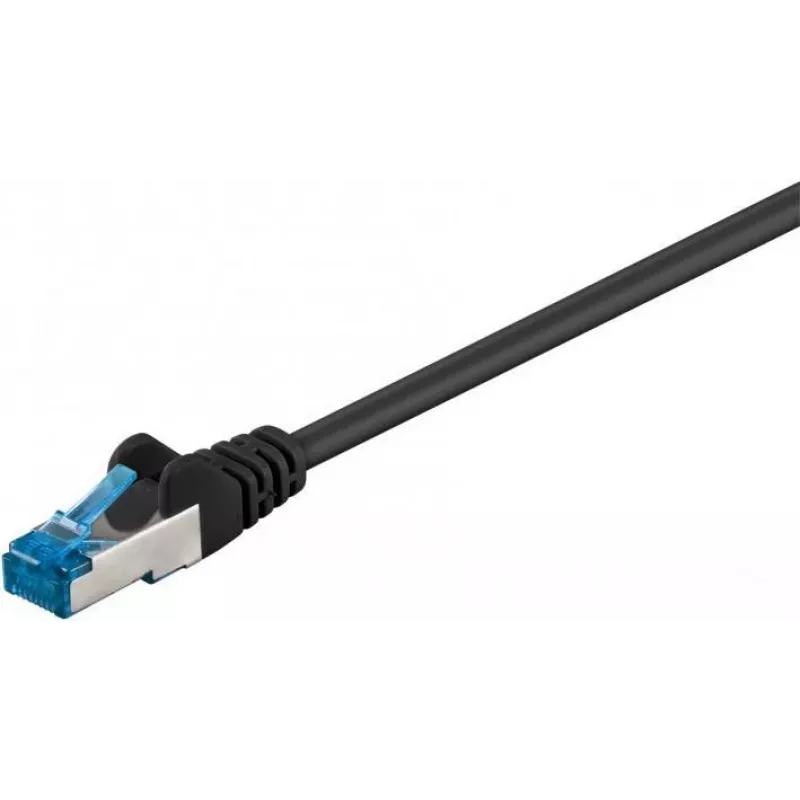

DSIT CAT 6a S/FTP LSOH καλώδιο δικτύου, 3m, μαύρο

For high-density 10 Gigabit installations where safety and signal integrity are non-negotiable, this DSIT CAT 6a patch cable stands apart with its S/FTP construction and LSOH jacket. Unlike standard UTP cables, each twisted pair is individually foil-shielded and the entire bundle is wrapped in a braided screen, virtually eliminating alien crosstalk and EMI. The low-smoke zero-halogen jacket means that in the event of fire, it emits no corrosive or toxic fumes, making it suitable for public buildings, data centres, and enclosed spaces.

Highlights

• Category 6a performance: supports 10GBASE-T up to 500 MHz bandwidth.
• S/FTP shielding: foil around each pair plus overall braid for superior noise immunity.
• LSOH jacket: low smoke, zero halogen for enhanced fire safety.
• 3-metre length, black colour, stranded copper conductors (AWG 26/7) for flexibility.

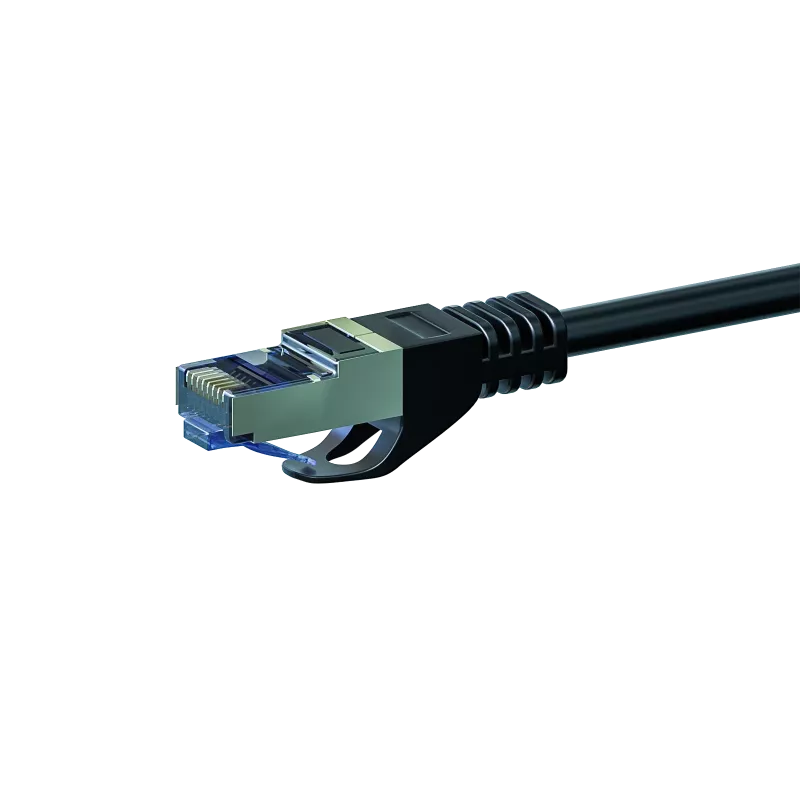

• RJ45 male connectors on both ends, wired to TIA/EIA-568B.

In daily use

This cable is ideal for connecting servers, switches, and patch panels in high-speed networks. Its robust shielding ensures stable 10G links even in cable-dense racks, while the LSOH jacket provides peace of mind in compliance-driven environments. The stranded conductors make it easy to route through tight spaces without kinking, and the snagless boots protect the locking tabs during frequent moves.

Full specifications

• Brand: DSIT
• Model: DC-6A0-030
• MPN: DC-6A0-030
• EAN: 8719956621826
• Cable type: CAT 6a S/FTP
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Length: 3 metres
• Colour: Black
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Conductor material: Copper (stranded)
• Conductor gauge: AWG 26/7
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Outer diameter: Approx. 6.2 mm
• Operating temperature: -20°C to 60°C
• Flame retardancy: IEC 60332-1
• Halogen free: Yes
• Certifications: RoHS, CE
• Compatibility: Backward compatible with Cat 6, Cat 5e, Cat 5

Final note

A reliable, future-proof cabling solution that combines high-speed performance with stringent fire safety standards.
