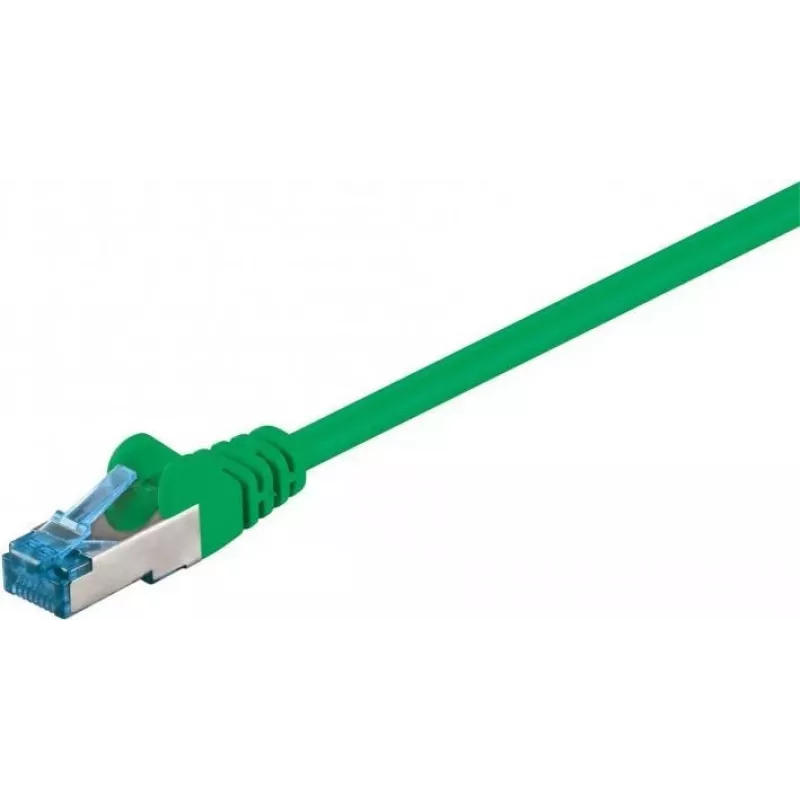

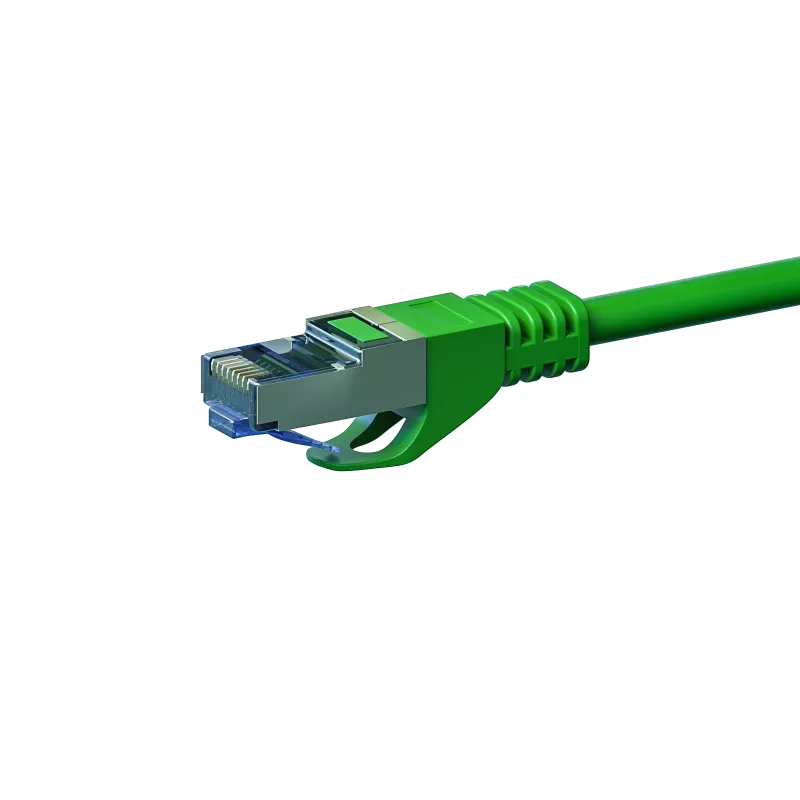

DSIT Cat 6a S/FTP LSOH καλώδιο δικτύου 10m πράσινο

High-performance Cat 6a Ethernet patch cable with S/FTP shielding and LSOH jacket, delivering 10 Gigabit speeds up to 500 MHz over 10 meters in green.

Advantages

Each twisted pair is individually foil shielded and the entire bundle is braid shielded, providing superior immunity to EMI and crosstalk. The low smoke zero halogen jacket ensures minimal toxic fumes and smoke in case of fire, making it safe for enclosed spaces. Supports PoE++ for powering devices without extra cabling. Stranded bare copper conductors offer flexibility and reliable signal integrity.

Suitable for

• Data centers and server rooms requiring 10GBASE-T connectivity
• Office LAN networks with high bandwidth demands
• Industrial environments with electromagnetic interference
• PoE applications such as IP cameras, access points, and VoIP phones
• Installations in public buildings where fire safety is critical

Key specifications

• Category: Cat 6a (Augmented Category 6)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket: LSOH (Low Smoke Zero Halogen)
• Length: 10 meters
• Colour: Green
• Data rate: 10 Gbps (10GBASE-T)
• Bandwidth: 500 MHz
• Connectors: RJ45 male to RJ45 male
• Wiring: TIA/EIA-568B
• Conductor: Bare copper, 26 AWG, stranded
• PoE: up to PoE++ (IEEE 802.3bt Type 4)
• Impedance: 100 Ohm
• Fire safety: IEC 60332-1, IEC 61034-2, IEC 60754-2
• Operating temperature: -20°C to 60°C
• Outer diameter: approx. 6.0 - 6.5 mm

Recommendations

For reliable 10G links in noise-heavy or safety-critical environments, this cable is an excellent choice. Pair with shielded RJ45 connectors and grounded patch panels to maximize performance.
