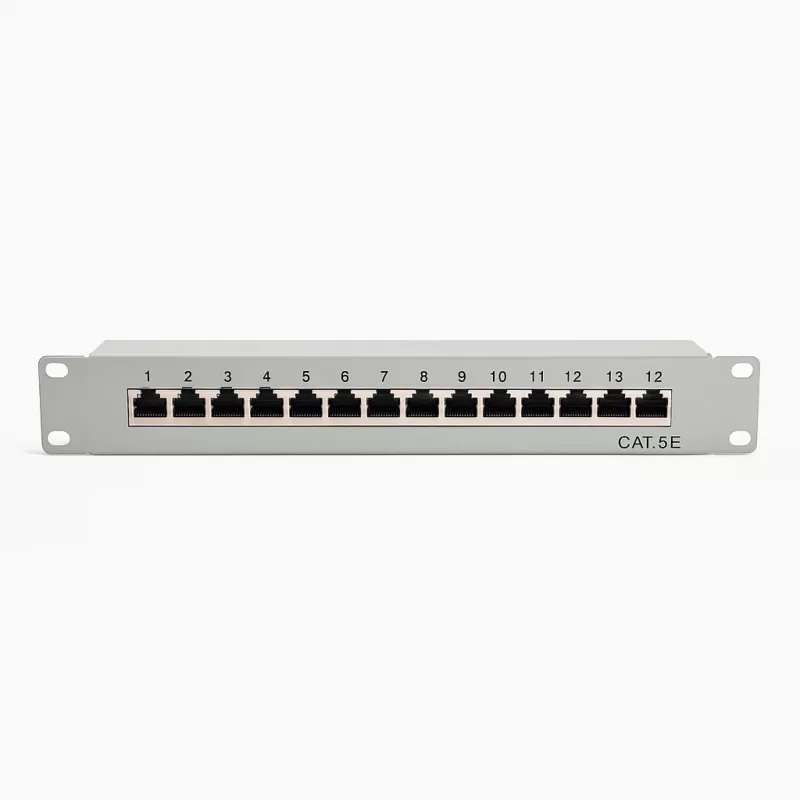

DSIT 10 inch 12-Port Cat5e STP Patch Panel – Τοποθέτηση σε Rack 1U, Θωρακισμένο RJ45, Μαύρο

Deliver 1 Gigabit Ethernet performance in a compact 10-inch form factor with the DSIT 12-Port Cat5e STP Patch Panel. Engineered for dense network environments, this 1U rackmount panel features 12 shielded RJ45 ports with gold-plated contacts and IDC termination for reliable, high-speed connections. Its SPCC steel housing and integrated grounding ensure robust shielding against EMI, making it ideal for professional LAN infrastructure where space and signal integrity matter.

Overview

The DSIT PKW-10-Patch5-12STP is a 10-inch rackmount patch panel that provides 12 ports of Category 5e shielded twisted pair connectivity. It is designed to fit standard 10-inch cabinets and offers a practical solution for organizing and managing network cables in small to medium installations. The panel supports TIA/EIA 568A/B wiring standards and is backward compatible with Cat5 and Cat3 systems. With a data transfer rate of up to 1000BASE-T, it meets the demands of modern gigabit networks.

What stands out

• 12 shielded RJ45 ports in a space-saving 10-inch, 1U design
• SPCC steel housing with integrated grounding for superior EMI protection
• Gold-plated phosphor bronze contacts ensure long-term reliability (≥750 mating cycles)
• IDC termination blocks support 22-26 AWG solid or stranded wire
• RoHS and CE certified for quality and environmental compliance

Technical details

• Form factor: 10-inch rackmount, 1U height
• Port count: 12 x RJ45 female, shielded
• Cabling standard: Category 5e (Cat5e), shielded twisted pair (STP)
• Rear termination: IDC (LSA+) for 22-26 AWG wires, TIA/EIA 568A/B
• Data transfer rate: up to 1 Gbps (1000BASE-T)
• Housing material: SPCC steel, black finish
• Contact material: phosphor bronze, gold plating (3-50 micro-inches)
• Durability: ≥750 mating cycles (RJ45), ≥200 IDC cycles
• Operating temperature: -10°C to 60°C; storage: -40°C to 70°C
• Certifications: RoHS, CE

Our verdict

A reliable and compact patch panel that brings professional-grade shielding and gigabit performance to 10-inch rack installations. Its robust construction and easy IDC termination make it a solid choice for structured cabling projects.
