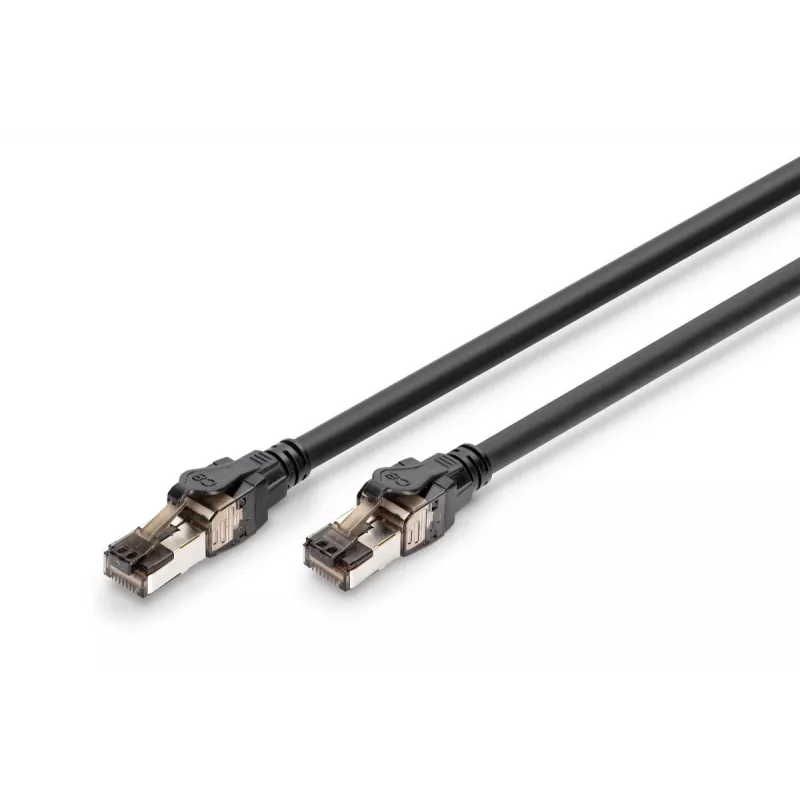

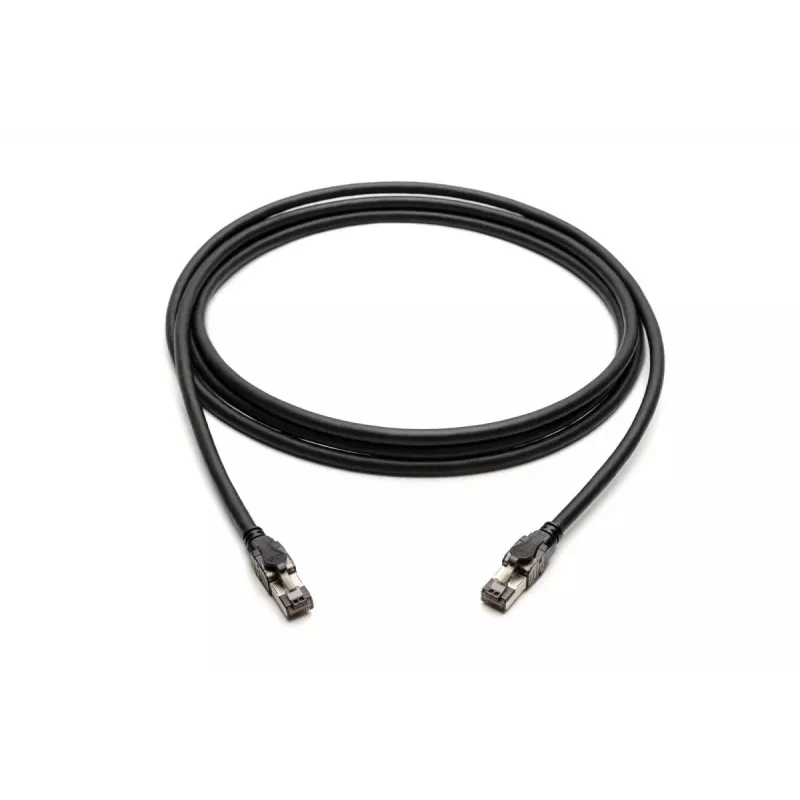

DIGITUS Καλώδιο patch - Κατ. 8.1 - S/FTP - AWG 24/7 - 5m - Μαύρο

DIGITUS Καλώδιο patch - Κατ. 8.1 - S/FTP - AWG 24/7 - 5m - Μαύρο
DIGITUS Καλώδιο patch - Κατ. 8.1 - S/FTP - AWG 24/7 - 5m - Μαύρο
DIGITUS Καλώδιο patch - Κατ. 8.1 - S/FTP - AWG 24/7 - 5m - Μαύρο
DIGITUS Καλώδιο patch - Κατ. 8.1 - S/FTP - AWG 24/7 - 5m - Μαύρο
DIGITUS Καλώδιο patch - Κατ. 8.1 - S/FTP - AWG 24/7 - 5m - Μαύρο
DIGITUS Καλώδιο patch - Κατ. 8.1 - S/FTP - AWG 24/7 - 5m - Μαύρο
26,75 €
The high-end network solution according to the CAT 8.1 standard- Highest performance: The CAT 8.1 patch cable with connector supports transmission rates of up to 40 Gbit/s at 2000 MHz for maximum network performance- New connector: RJ45 connector with integrated PCB for improved signal integrity and... Περισσότερα
Απόθεμα 4 Κωδικός 114294 Μάρκα DIGITUS Μοντέλο DK-1843-050 Εγγύηση 2 χρόνια

Αποστολή & επιστροφές

Εκτιμώμενη παράδοση Δευτέρα, Οκτωβρίου 26
Θα ενημερώνεστε μέσω του αναλυτικού μας συστήματος παρακολούθησης
Τρόποι πληρωμής
Τραπεζική κάρταVisaMastercardPayPalApple PayGoogle PayΤραπεζική κατάθεση

The high-end network solution according to the CAT 8.1 standard

- Highest performance: The CAT 8.1 patch cable with connector supports transmission rates of up to 40 Gbit/s at 2000 MHz for maximum network performance

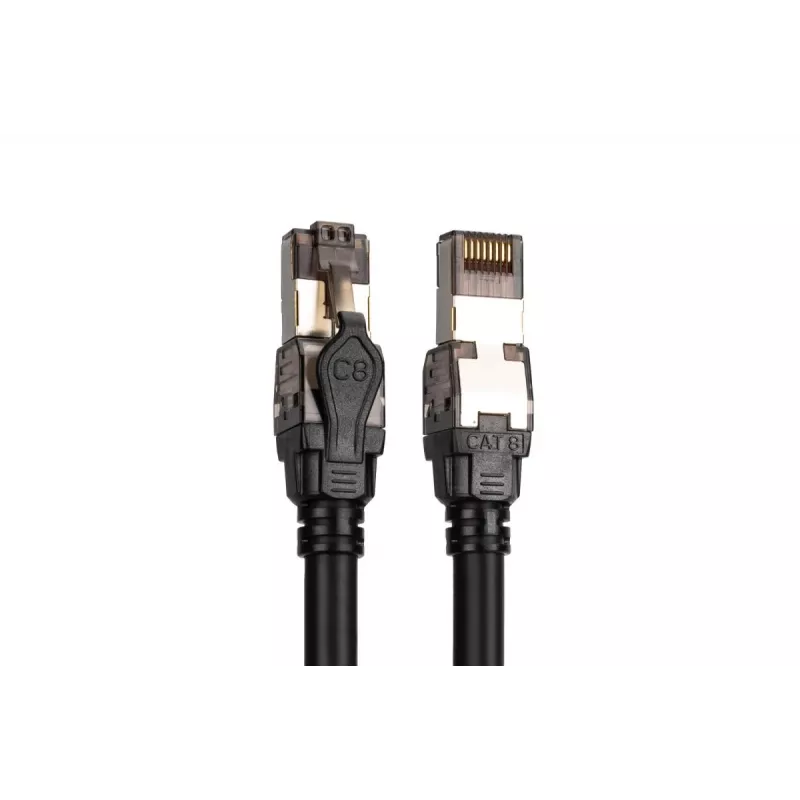

- New connector: RJ45 connector with integrated PCB for improved signal integrity and long-term stability
- Future-proof compatibility: Ideal for high-speed data centers, server rooms and industrial applications
- Supports the IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++ Type 3 & Type 4) standards

The DIGITUS® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 8.1 cabling. The performance has been tested up to 2,000 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from getting caught and the latching lever from breaking off the plug.

Κύρια σημεία
  • 2 x RJ45 plug connector (PCB)
  • RJ45 plug connector 3 μ nominal gold-plated over 60 μ nickel-primed contact pins
  • FO-PE (foamed polyethylene) insulation
  • Total diameter 8.0 mm ± 0.2 mm
  • Bending radius 15x OD
  • Wiring standard EIA/TIA 586B
  • Color code orange x white, green x white, blue x white, brown x white
  • Pin assignment 1:1
  • Contact resistance 750 mating cycles
  • Contact resistance 30 mΩ maximum
  • Unbalanced resistance 3% maximum
  • Insulation resistance 2500 VDC for 3 seconds
  • Uninsulated resistance 150 MΩ/km minimum
  • Operating temperature -20 °C to +60 °C
  • NVP 72%
  • Flame resistance IEC 60332-1
  • Smoke emission IEC 61034
  • Typical applications IEEE 802.3 Ethernet (10/100/1000BASE-T)
  • PoE according to IEEE 802.3af/at/bt (PoE+, PoE++ type 3 & 4)
  • Standards ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-5
Χαρακτηριστικά
Plug and Play
Yes
Ακτίνα κάμψης (ελάχ.)
1.5 cm
Βάθος συσκευασίας
370 mm
Βάρος συσκευασίας
240 g
Βύσμα 1
RJ-45
Βύσμα 2
RJ-45
Εξωτερική διάμετρος
8 mm
Επιμετάλλωση επαφών βύσματος
Gold
Θερμοκρασία λειτουργίας (T-T)
-20 - 60 °C
Θωράκιση βύσματος
Yes
Θωράκιση καλωδίου
S/FTP (S-STP)
Μέγεθος σύρματος AWG
24/7
Μήκος καλωδίου
5 m
Μορφή βύσματος 1
Straight
Μορφή βύσματος 2
Straight
Πιστοποίηση
IEC 60332-1 IEC 61034 SO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-5
Πλάτος συσκευασίας
340 mm
Ποσότητα ανά συσκευασία
1 pc(s)
Πρότυπο καλωδίου
Cat8.1
Συχνότητα
2000 MHz
Σχήμα καλωδίου
Round
Υλικό αγωγού
Copper
Υλικό θωράκισης βύσματος
Metal foil
Υλικό μανδύα
Low smoke zero halogen (LSZH)
Ύψος συσκευασίας
10 mm
Φύλο βύσματος 1
Male
Φύλο βύσματος 2
Male
Χρώμα προϊόντος
Black
