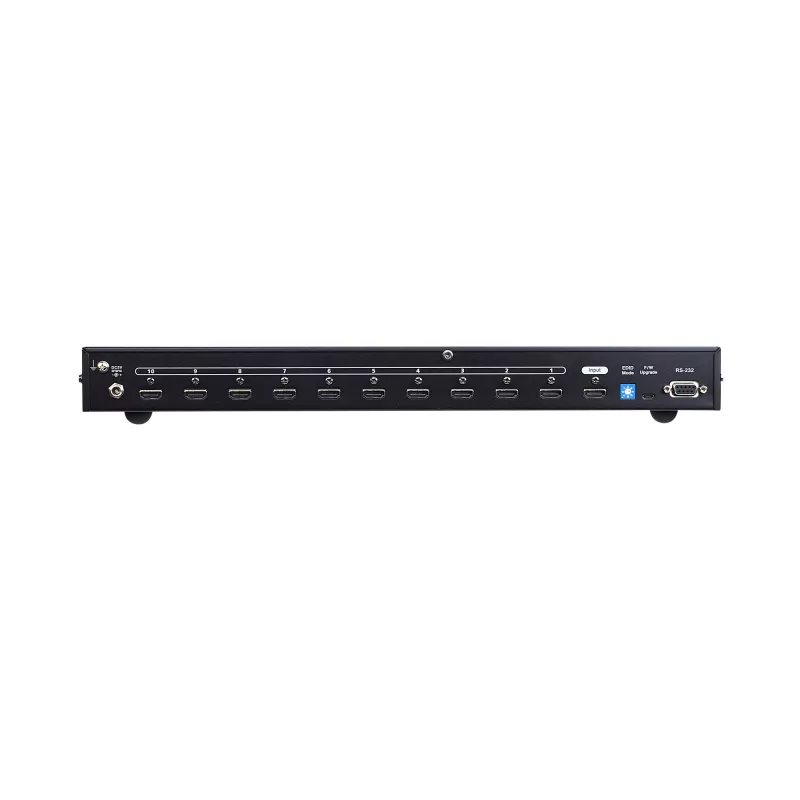

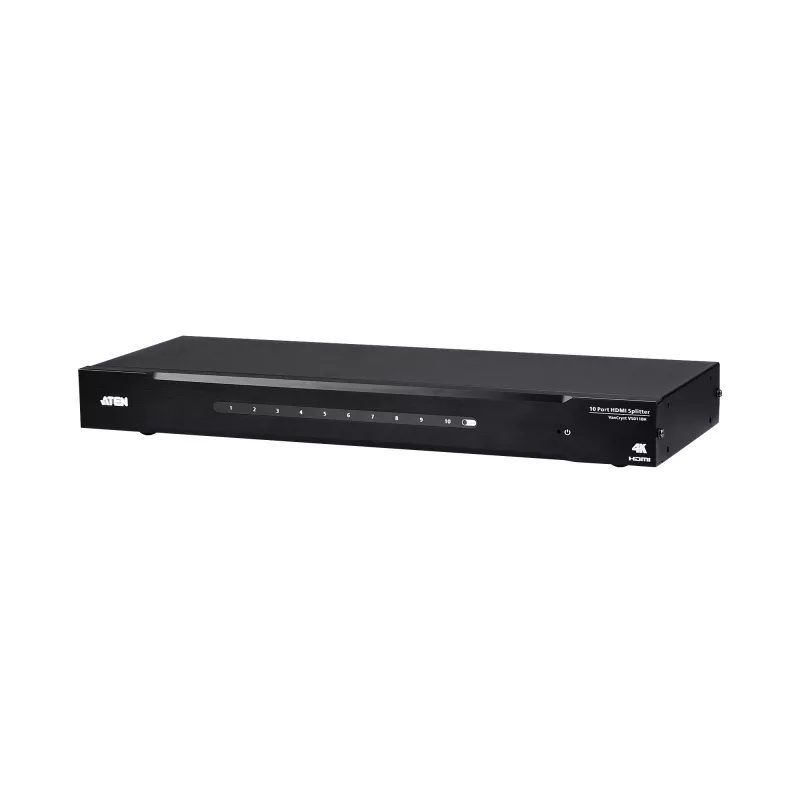

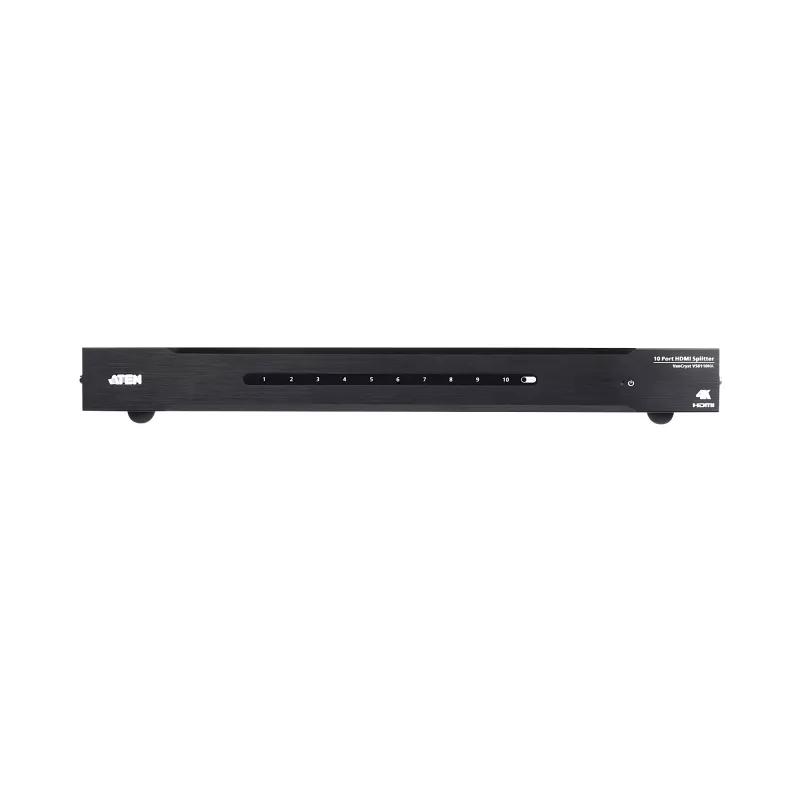

Διαχωριστής HDMI ATEN VS0110HA-AT-G 10 Θύρες 4K

The ATEN VS0110HA 10-Port 4K HDMI Splitter sends a single HDMI source to up to ten displays simultaneously, supporting resolutions up to 4096 x 2160. The unit uses a standard HDMI interface compatible with common sources and sinks such as DVD players, satellite set-top boxes and HDMI monitors. Built-in ATEN EDID management keeps continuous EDID communication with connected devices to maintain optimal video output. The package includes the VS0110HA splitter, a power adapter, a mounting kit and user instructions.

Advantages

The metal housing provides durability while the compact dimensions (157.8 mm × 437.2 mm × 44 mm) allow easy integration into racks or AV setups. Low power consumption (about 4.34 W) reduces operating costs. ATEN EDID technology ensures stable video output across multiple displays and broad compatibility with HDMI sources and sinks.

Suitable for

• Conference rooms and meeting spaces
• Retail displays and digital signage
• Events and exhibitions
• Classrooms and lecture halls
• Control rooms and monitoring stations

Key specifications

• Model: VS0110HA-AT-G
• Brand: ATEN
• Ports: 10 output HDMI ports + 1 input HDMI port (total 11 HDMI ports)
• Maximum resolution: 4096 × 2160 (4K)
• Video port type: HDMI
• Product colour: Black
• Dimensions (W×D×H): 157.8 mm × 437.2 mm × 44 mm
• Weight: 2.32 kg
• Power consumption: approx. 4.34 W
• Included in box: VS0110HA unit, power adapter (0AD6-1F05-26EG), mounting kit, user instructions

How to use

Place the splitter in a suitable location or mount it using the supplied kit. Connect a single HDMI source to the input HDMI port and attach up to ten HDMI displays to the output ports. Connect the power adapter and switch on the unit. The splitter will communicate EDID information with connected devices automatically to establish compatible video settings.

Recommendations

For best results, use high-quality HDMI cables rated for 4K transmission and ensure all connected displays support the intended 4K resolution and refresh rate. When extending over long distances, consider using HDMI extenders or active cables to maintain signal integrity.
