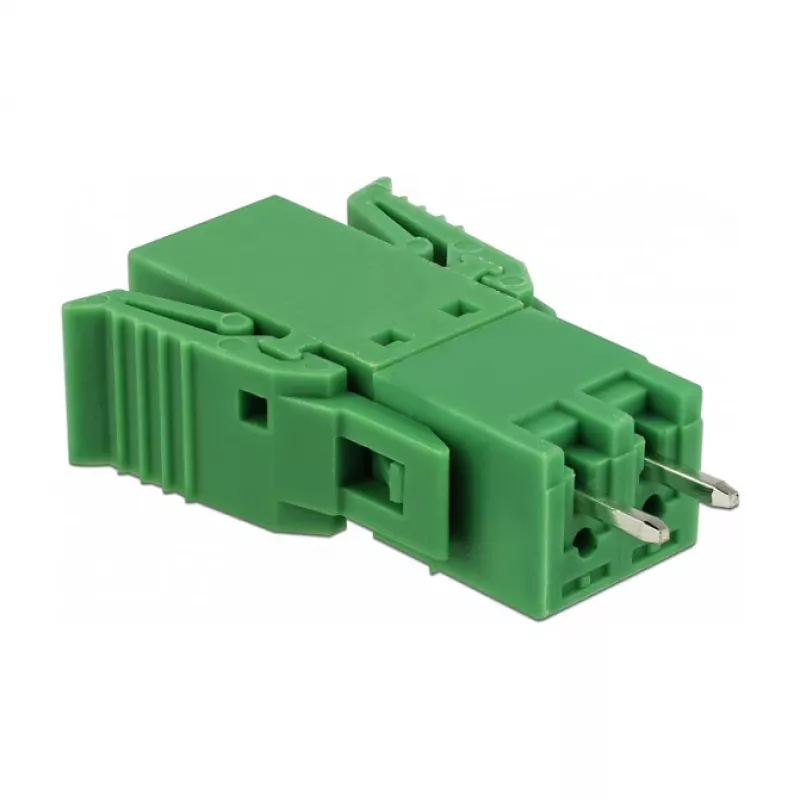

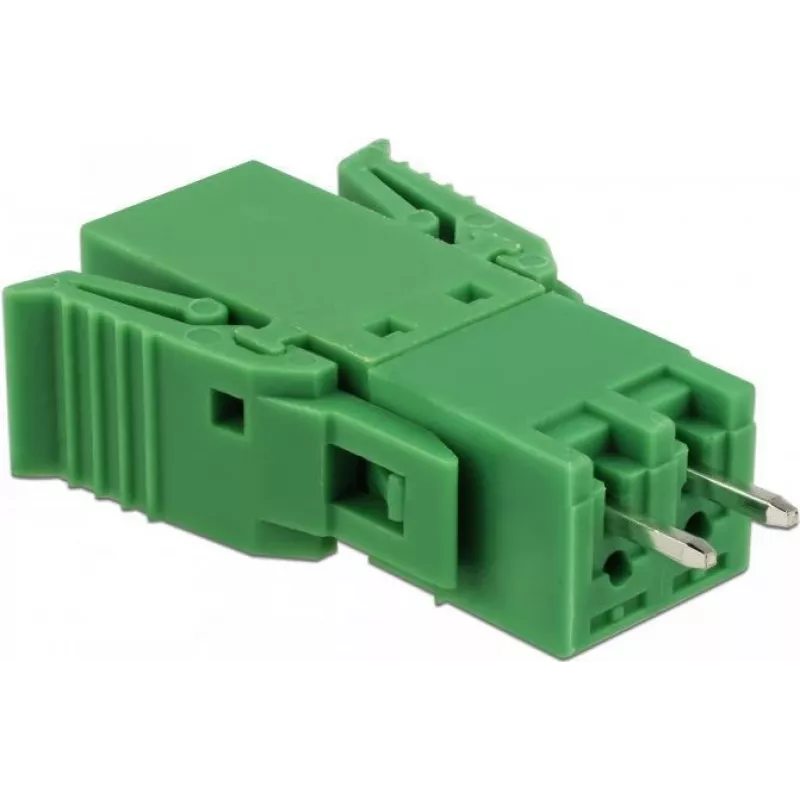

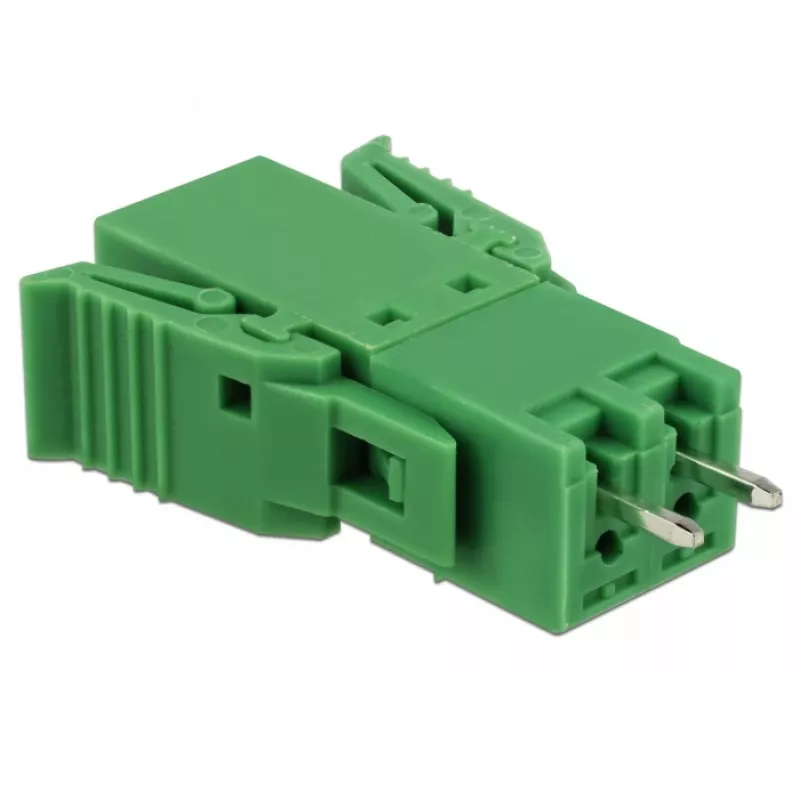

Delock Σετ κλέμας για πλακέτα 2-πολικό 3,81 mm βήμα κάθετο (65968)

Terminal block set for printed circuit boards, offering a secure 2-pin connection with a 3.81 mm pitch in a vertical orientation. This set includes 10 green terminal blocks, each rated for 8 A and 300 V, making it ideal for reliable wire-to-board connections in compact electronic devices.

Advantages

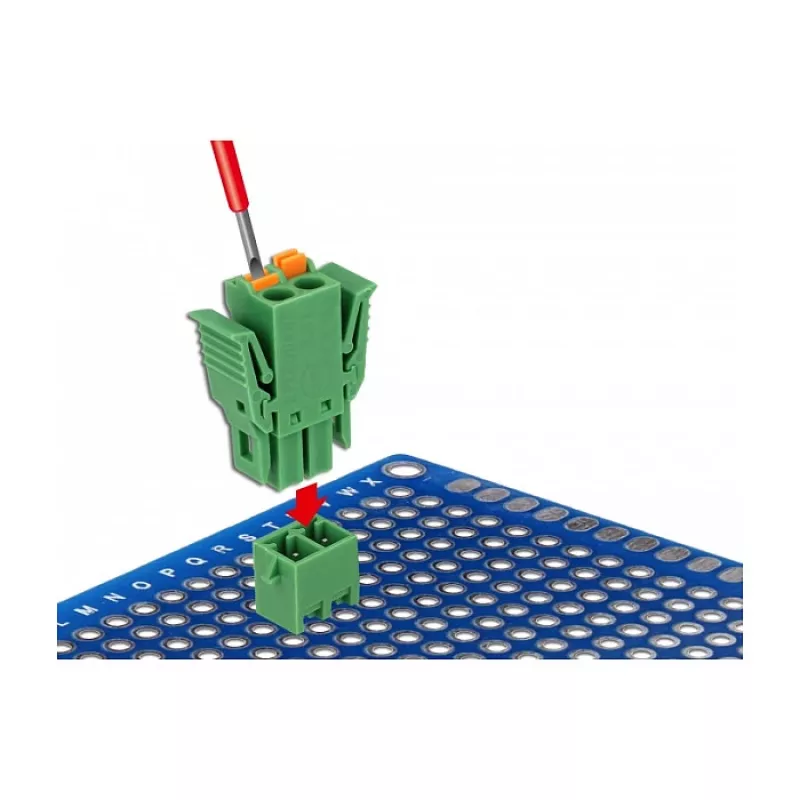

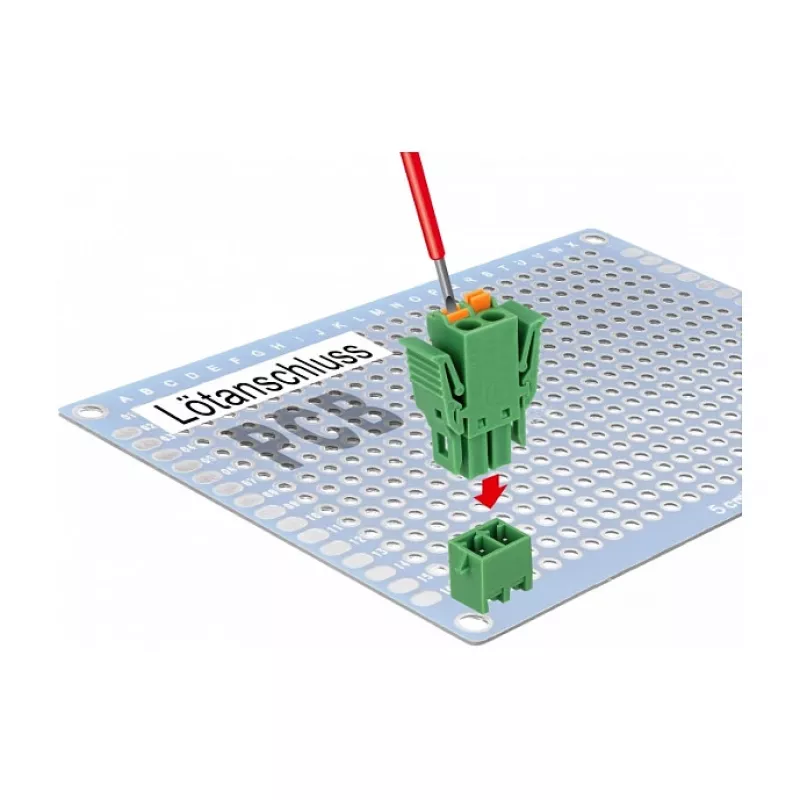

Vertical mounting saves board space and simplifies wiring access. The screw clamp mechanism ensures a firm grip on wires from 28 to 16 AWG, while the PA66 housing withstands temperatures from -40 °C to 105 °C.

Suitable for

• PCB prototyping and production
• Industrial control boards
• Power distribution modules
• Signal and low-voltage wiring

Key specifications

• Connector type: Terminal block, 2-pin
• Pitch: 3.81 mm
• Mounting type: PCB, vertical
• Rated current: 8 A
• Rated voltage: 300 V
• Wire gauge: 28 - 16 AWG (0.08 - 1.31 mm²)
• Wire stripping length: 5 - 6 mm
• Operating temperature: -40 °C to 105 °C
• Housing material: PA66
• Contact material: Brass, tin-plated
• Screw material: Steel, zinc-plated, M2
• Colour: Green
• Quantity per set: 10 pieces

Recommendations

Use a torque of max 0.2 Nm when tightening screws to avoid damaging the terminal block. Ensure wires are stripped to 5-6 mm for optimal contact.
