Delock Διακόπτης Πίεσης 12 mm 2 x Σύνδεση Βίδας Μπλε

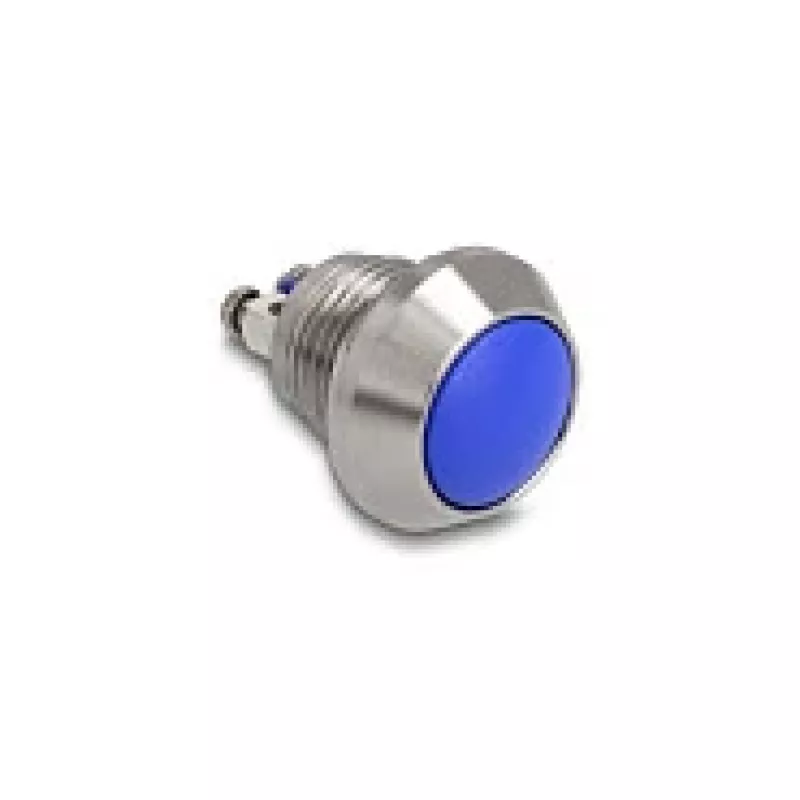

The Delock Push Button Switch is a high-quality momentary switch designed for panel mounting. With a 12 mm mounting diameter and two screw terminals, it is ideal for a variety of control and signaling applications. The blue actuator provides clear visual feedback, and the robust construction ensures long-lasting performance.

Advantages

This push button switch offers reliable momentary contact (push-to-make) operation, making it suitable for applications where temporary activation is required. The screw terminals allow for secure and easy wiring, while the compact 12 mm size fits standard panel cutouts. With an electrical life of over 10,000 cycles and mechanical life exceeding 50,000 cycles, it delivers dependable performance in demanding environments.

Suitable for

• Control panels and industrial automation
• Signal and indicator circuits
• DIY electronics and prototyping
• Access control and security systems

Key specifications

• Switch Type: Push Button Switch
• Operation Type: Momentary (Push-to-make)
• Mounting Diameter: 12 mm
• Contact Configuration: SPST-NO
• Number of Terminals: 2
• Terminal Type: Screw Terminal
• Actuator Color: Blue
• Rated Voltage (AC): 250 V
• Rated Current (AC): 1 A
• Insulation Resistance: > 100 MΩ
• Contact Resistance: < 50 mΩ
• Electrical Life: > 10,000 cycles
• Mechanical Life: > 50,000 cycles
• Operating Temperature: -25°C to +85°C
• Max. Panel Thickness: 5 mm
• Housing Material: Plastic
• Actuator Material: Plastic

Recommendations

For best results, use with appropriate panel cutout tools and ensure proper wiring according to your application's voltage and current requirements. This switch is not suitable for high-power loads without additional relay or contactor circuitry.
