DeLOCK 64208 Hub USB-Pin-Header 19 Pin 5000 Mbit/s μαύρο γκρι

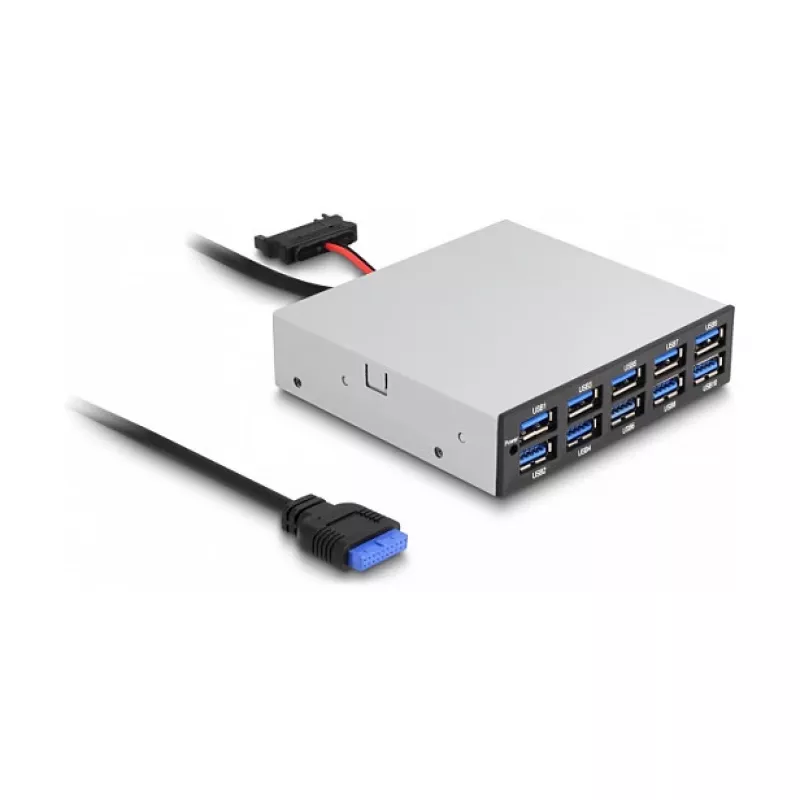

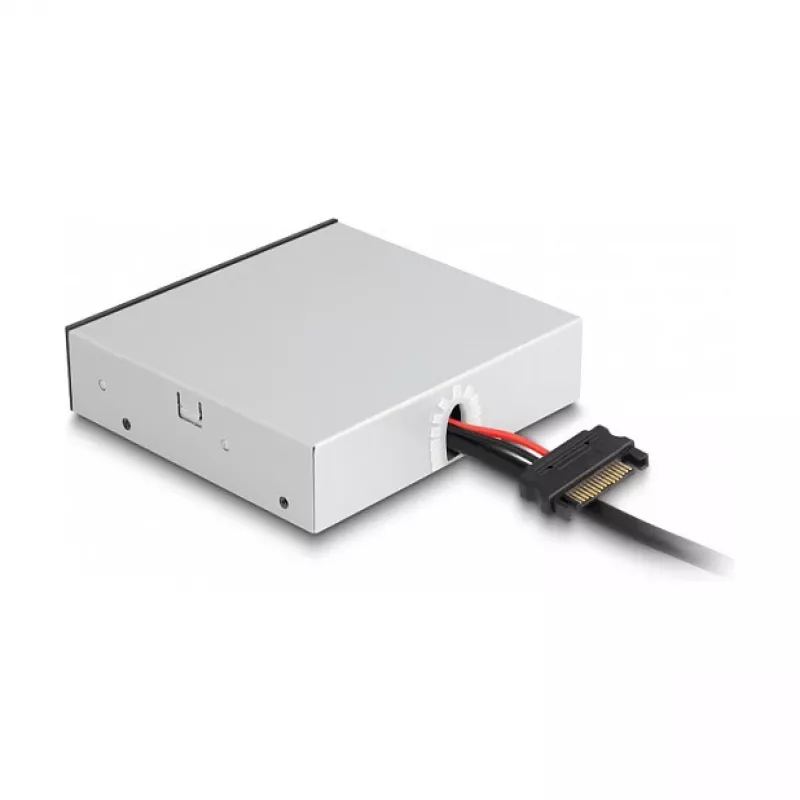

The DeLOCK 64208 is a USB pin header hub designed for installation in a 3.5" drive bay of a PC. It connects internally to the motherboard via a 19‑pin USB pin header (USB 3.2 Gen 1) and provides multiple external USB Type‑A ports, allowing up to 10 USB devices to be attached. The hub has a metal housing and compact dimensions (95 mm × 102 mm × 26 mm), and supports data transfer rates up to 5000 Mbit/s.

Advantages

The hub supports USB 3.2 Gen 1 speeds (up to 5000 Mbit/s) over a 19‑pin internal connection and allows multiple external devices such as docking stations, card readers or external enclosures to be connected simultaneously. Its metal housing provides durability while the 3.5" bay form factor enables neat internal installation. The product is compatible with standard motherboard USB pin headers and offers up to 10 available USB connections.

Suitable for

• Expanding front-access USB Type-A ports in a desktop PC
• Connecting docking stations and card readers inside the case
• Providing additional ports for external enclosures and peripherals

Key specifications

• Manufacturer: DELOCK
• Model: 64208
• Interface: 19‑pin USB pin header (USB 3.2 Gen 1)
• External ports: USB Type‑A (up to 10 devices supported)
• Maximum data rate: 5000 Mbit/s
• Housing: Metal
• Dimensions: 95 mm (W) × 102 mm (D) × 26 mm (H)
• Colour: Black/Grey
• MPN: 64208
• EAN: 4043619642083

How to use

Install the hub into a free 3.5" drive bay in the PC case and secure it according to the case manufacturer’s instructions. Connect the hub internally to the motherboard using the 19‑pin USB pin header cable. After installation, connect USB Type‑A devices to the hub’s external ports. Ensure the system is powered off or follow proper hot‑swap procedures if supported by your hardware before making internal connections.

Recommendations

To achieve USB 3.2 Gen 1 transfer rates, use devices and cables that support USB 3.0/3.2 Gen 1 and connect to a compatible 19‑pin motherboard header. Distribute power‑hungry devices across ports and, if necessary, use externally powered hubs or enclosures for high‑power peripherals.
