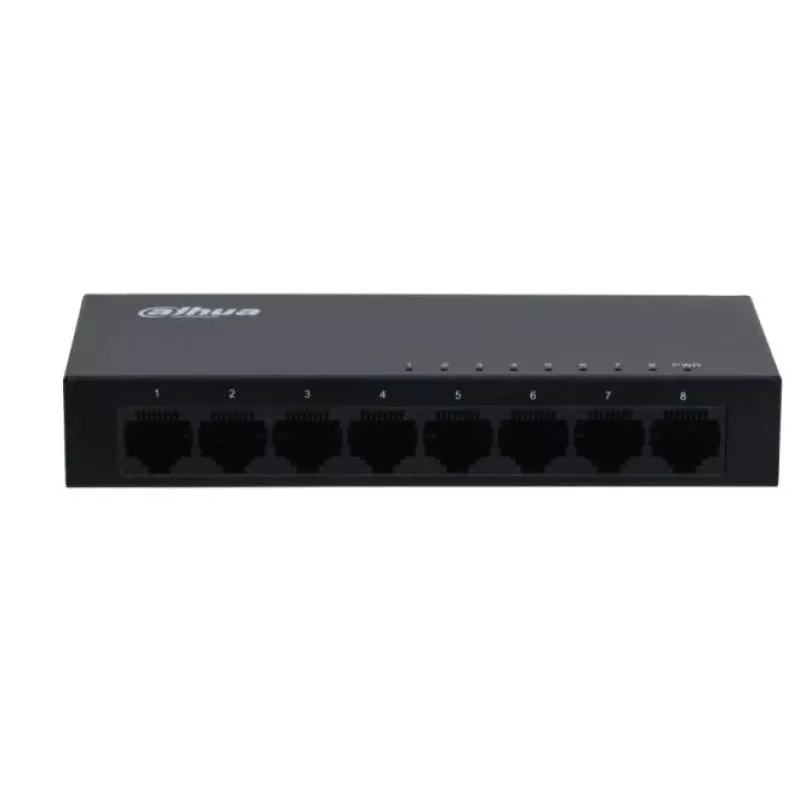

Dahua Technology SG1008-EUR Δικτυακό switch Unmanaged L2 Gigabit Ethernet (10/100/1000) μαύρο

DAHUA SG1008-EUR L2 8 Ports is a Layer 2 managed Ethernet switch with eight RJ45 ports, designed for small networks and security system integrations. The switch supports standard L2 switching functions to manage traffic and segment networks, making it suitable for connecting cameras, NVRs and other network devices in CCTV deployments, office networks and edge aggregation scenarios.

Advantages

The SG1008-EUR offers a switching capacity of 16 Gbps and a forwarding rate of 11.9 Mpps in a compact metal enclosure that measures 154.0 × 91.0 × 74.5 mm and weighs 0.16 kg. It is a managed switch, providing the ability to configure VLANs and basic traffic management for improved device organization and network segmentation. The unit is powered via a 5 VDC, 1 A adapter and includes the necessary software for management and configuration.

Suitable for

• CCTV systems and IP camera networks
• Small office LANs
• Edge aggregation points in distributed networks
• Connecting NVRs and network devices in security installations

Key specifications

• Type: Layer 2 managed Ethernet switch (L2)
• Ports: 8 × RJ45
• Switching capacity: 16 Gbps
• Forwarding rate: 11.9 Mpps
• Power: 5 VDC, 1 A
• Dimensions: 154.0 × 91.0 × 74.5 mm
• Net weight: 0.16 kg
• Manufacturer: DAHUA, MPN: SG1008-EUR, EAN: 6923172590497

How to use

Install the DAHUA SG1008-EUR on a stable surface or mount it according to installation guidelines. Connect network devices such as IP cameras and NVRs to the RJ45 ports using appropriate Ethernet cables. Supply power using the provided 5 VDC, 1 A adapter. Access the switch management interface using the included software to configure VLANs, port settings and any required traffic management features.

Recommendations

For reliable operation in CCTV and security deployments, place the switch in a dry, ventilated location and use shielded or properly rated Ethernet cables for longer runs. Configure VLANs to separate camera traffic from office LAN traffic and enable any available management features to monitor port status and traffic load.
