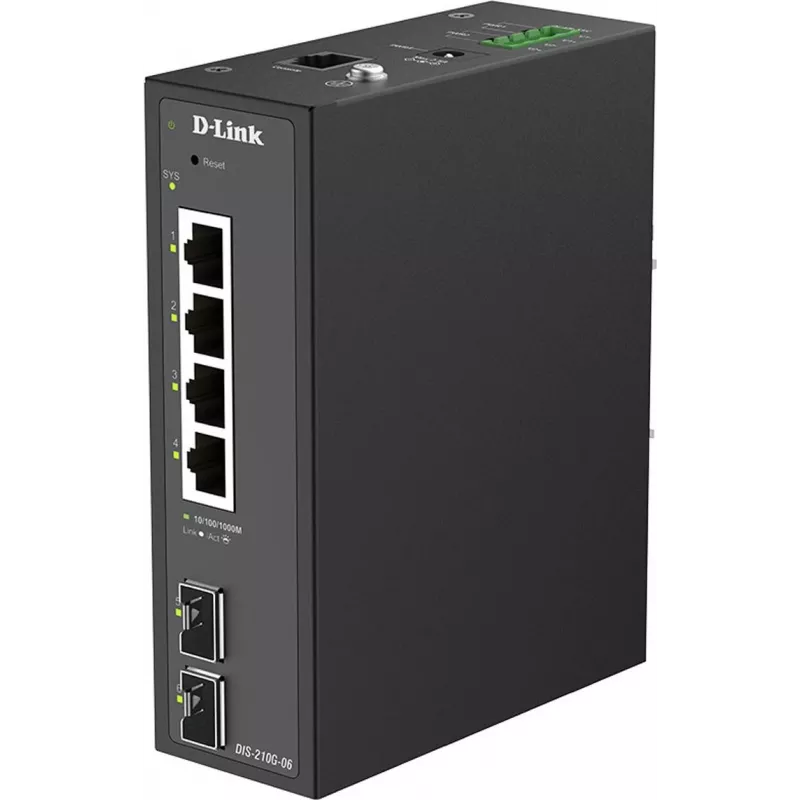

D-Link DIS-210G-06 βιομηχανικός smart managed switch με 4 θύρες Gigabit Ethernet και 2 υποδοχές SFP

Industrial networks demand reliability under harsh conditions, and the D-Link DIS-210G-06 delivers exactly that. This smart managed switch combines four Gigabit Ethernet ports with two SFP slots, providing flexible connectivity for automation, surveillance, and edge computing in environments where temperature extremes, vibration, and electrical noise are everyday challenges.

Who is it for

Engineers and system integrators deploying networks in factories, warehouses, transportation systems, or outdoor cabinets will appreciate the DIS-210G-06. It is built for those who need managed features like VLANs and QoS without the complexity of a full enterprise switch, all in a rugged, fanless form factor that mounts on a DIN rail or wall.

Main features

• 4 x 10/100/1000BASE-T Gigabit Ethernet ports for high-speed copper connections
• 2 x 100/1000BASE-X SFP slots for fiber uplinks over long distances
• Smart managed capabilities: VLAN, QoS, port security, and storm control
• Industrial-grade design: fanless metal housing, DIN-rail or wall mountable
• Wide operating temperature range from -40 to 75 °C for extreme environments
• Redundant 12-58 V DC power input with terminal block for reliability
• Advanced protections: 6 kV surge, 8 kV air / 6 kV contact ESD

Specifications

• Switching capacity: 12 Gbps
• Forwarding rate: 8.93 Mpps
• MAC address table: 8K entries
• Jumbo frame support: up to 9 KB
• VLAN support: 802.1Q tagged, port-based, GVRP, asymmetric, voice, surveillance
• QoS: 802.1p CoS, 8 queues per port, WRR and strict priority
• Security: port security, storm control, DHCP server screening, ARP spoofing prevention, D-Link Safeguard Engine
• Management: web GUI, CLI (Telnet), SNMP v1/v2c/v3, D-Link D-View 7, dual image
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1w, 802.1s, 802.1Q, 802.1p, 802.3ad
• Certifications: CE, FCC, VCCI, RCM, UL, IEC 61000-4-2/3/4/5/6/8, IEC 60068-2-6/27/32, NEMA TS2
• MTBF: >1,000,000 hours

Tips

Pair the DIS-210G-06 with industrial-grade SFP modules for fiber uplinks in noisy electrical environments. Use the redundant power inputs to connect to separate power sources, ensuring continuous operation even if one supply fails. For easy monitoring, integrate the switch with D-Link D-View 7 or any SNMP-based network management system.
